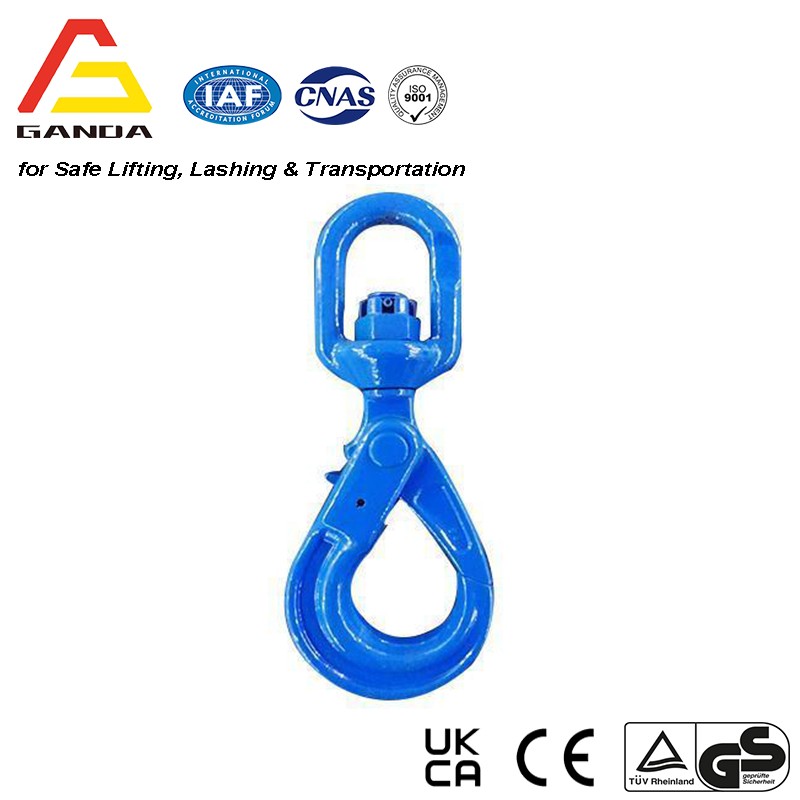

G100 Swivel Self Locking Hook

G100 Swivel Self Locking Hook
Size: 6mm to 22 mm
SF: 4:1
Color: Blue

G100 Swivel Self Locking Hook for Chain Sling Features

● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015.

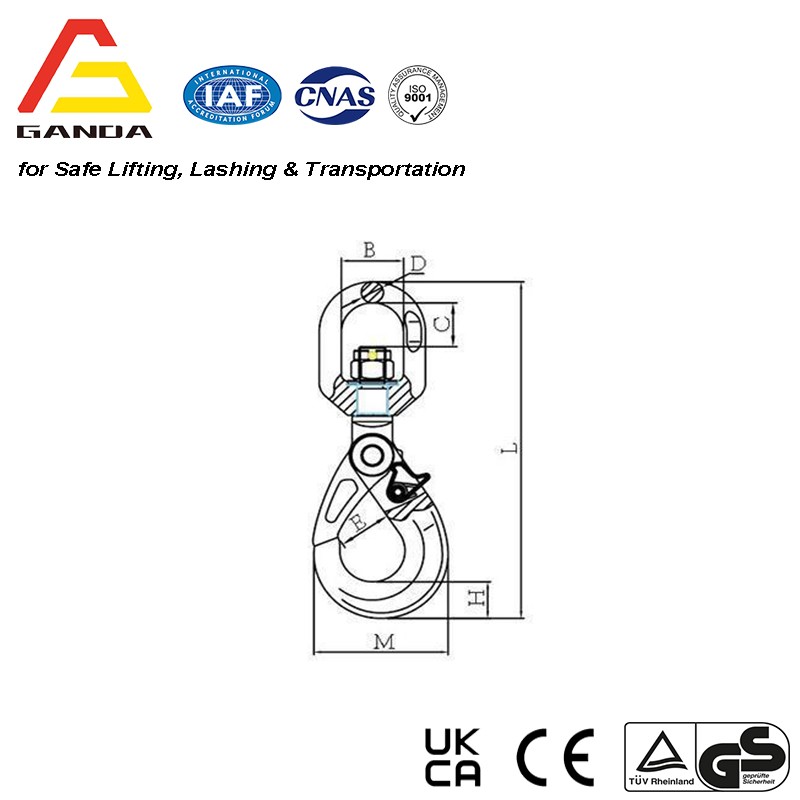

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load (t)	B±1 (mm)	C±1 (mm)	D±0.5 (mm)	E±1 (mm)	H±1 (mm)	M±2 (mm)	L±3 (mm)
10-GA1007-06	0.6	1.4	5.6	32.5	23	11.5	28	20	70	184
10-GA1007-08	1.1	2.5	10	36	28	13	35.5	26	90	229
10-GA1007-10	2	4	16	42	35	15.5	45	30	108	269
10-GA1007-13	4	6.7	26.8	50	40	17	53.5	40.5	138.5	330
10-GA1007-16	6.8	10	40	61	56	21.5	62	50.5	170.5	413
10-GA1007-20	12.5	16	64	72	62	26	76.5	62	192.5	463
10-GA1007-22	17.1	19	76	97	94	33	80	66	205	572

Ultimate load is 4 times the Working Load Limit.

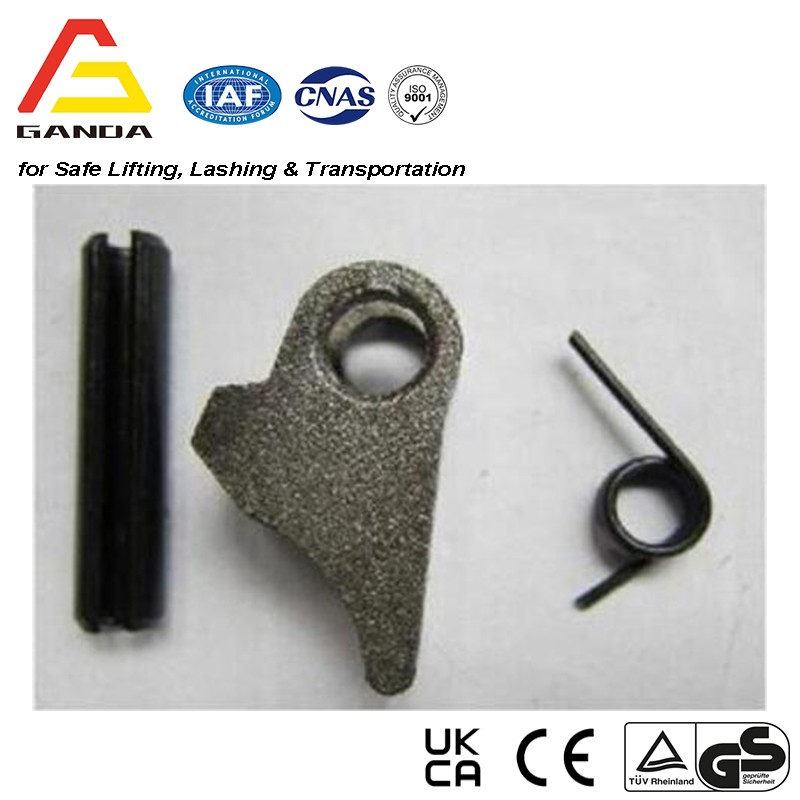

SPARE PARTS: (1 SET= switch of primary color+black spring+black elastic cylindrical pin)

Parameters (Unit: mm)

Item Code	SIZE	Item Code	SIZE
SP-GA1005/6/7-6	6-10	SP-GA1005/6/7-16	16-10
SP-GA1005/6/7-8	8-10	SP-GA1005/6/7-20
SP-GA1005/6/7-10	10-10	SP-GA1005/6/7-22
SP-GA1005/6/7-13	13-10
