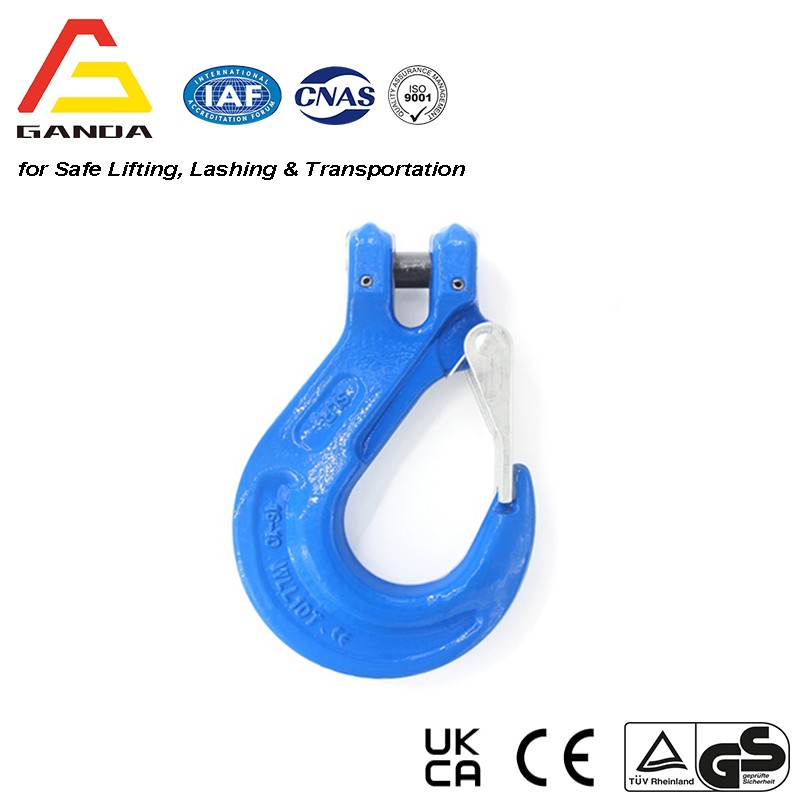

G100 Clevis Sling Hook
Size: 6mm to 22mm
SF: 4:1
Color: Blue
G100 Alloy Clevis Sling Hook for Chain Sling
The alloy eye sling hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015;
● It is equipped with a spare part, cast latch.

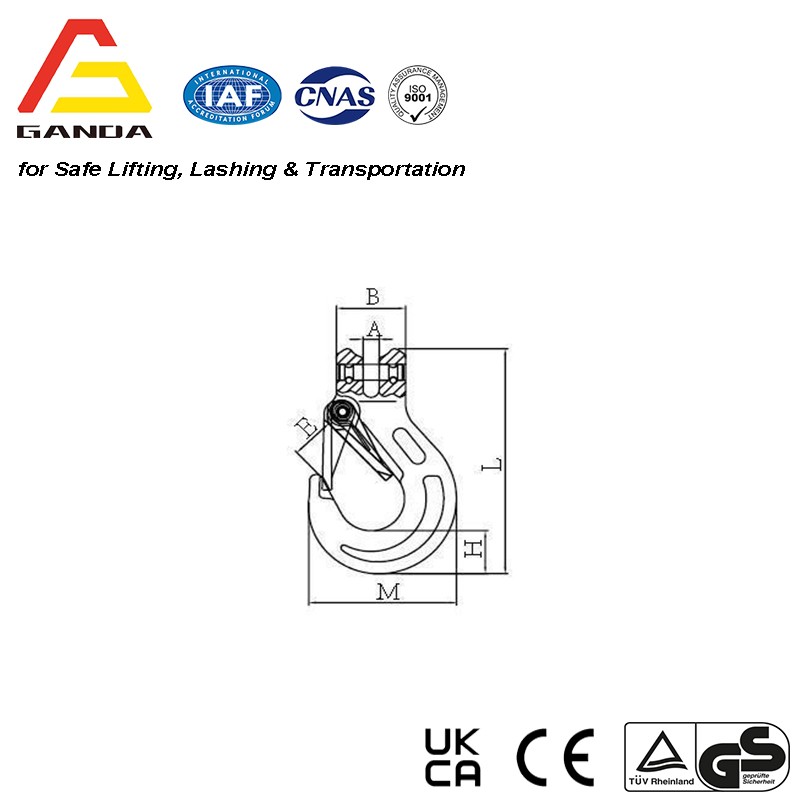

Parameters (Unit: mm)
Item code | Weight (kg) | Working load limit (t) | Breaking load (t) | A±0.5 | B±1 | E±1.5 | H±1 | M±2 | L±2.5 |
10-GA004-06 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
10-GA1004-08 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 |
10-GA1004-10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
10-GA1004-13 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
10-GA1004-16 | 3.6 | 10 | 40 | 17.5 | 70 | 44 | 50 | 160.5 | 248 |
10-GA1004-20 | 7.3 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
10-GA1004-22 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |
Ultimate load is 4 times the Working Load Limit.
