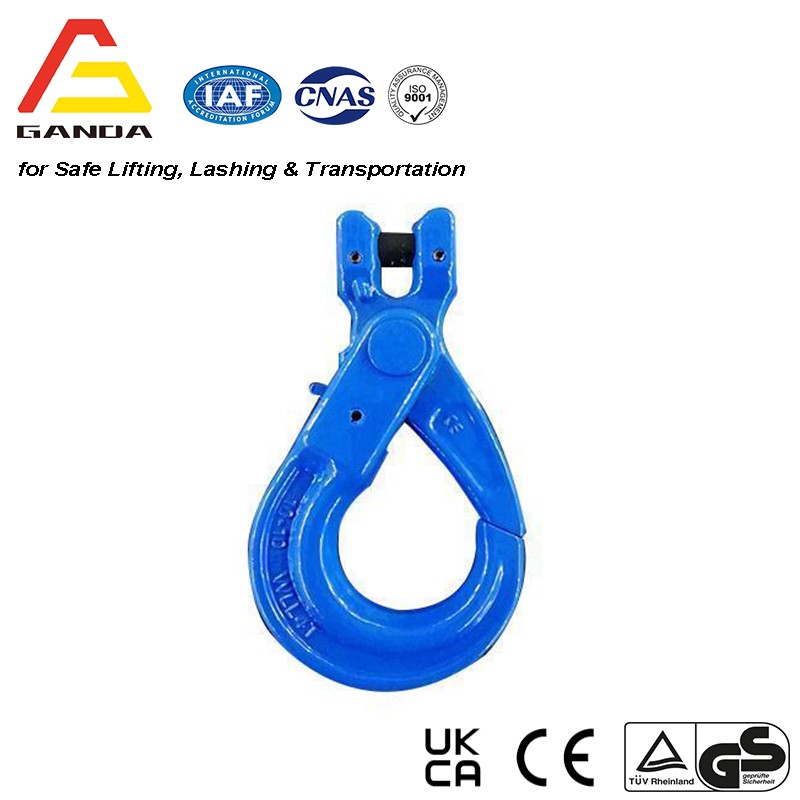

G100 Clevis Self Locking Sling Hook
Size: 6mm to 22mm
SF: 4:1
Color: Blue
G100 Alloy Clevis Self Locking Sling Hook for Chain Sling
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015;
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.

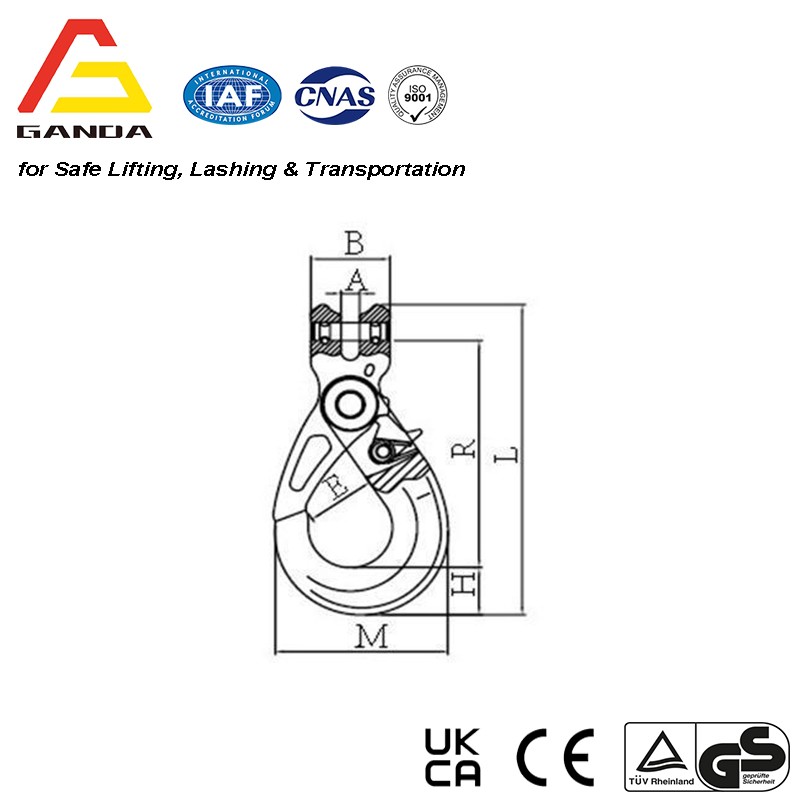

Parameters (Unit: mm)
Item code | Weight (kg) | Working load limit (t) | Breaking load (t) | A±0.5 | B±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
10-GA1006-06 | 0.5 | 1.4 | 5.6 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 |
10-GA1006-08 | 0.9 | 2.5 | 10 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 |
10-GA1006-10 | 1.6 | 4 | 16 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 |
10-GA1006-13 | 2.9 | 6.7 | 26.8 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 |
10-GA1006-16 | 5.8 | 10 | 40 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 |
10-GA1006-20 | 8.6 | 16 | 64 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 |
10-GA1006-22 | 12.1 | 19 | 76 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 |

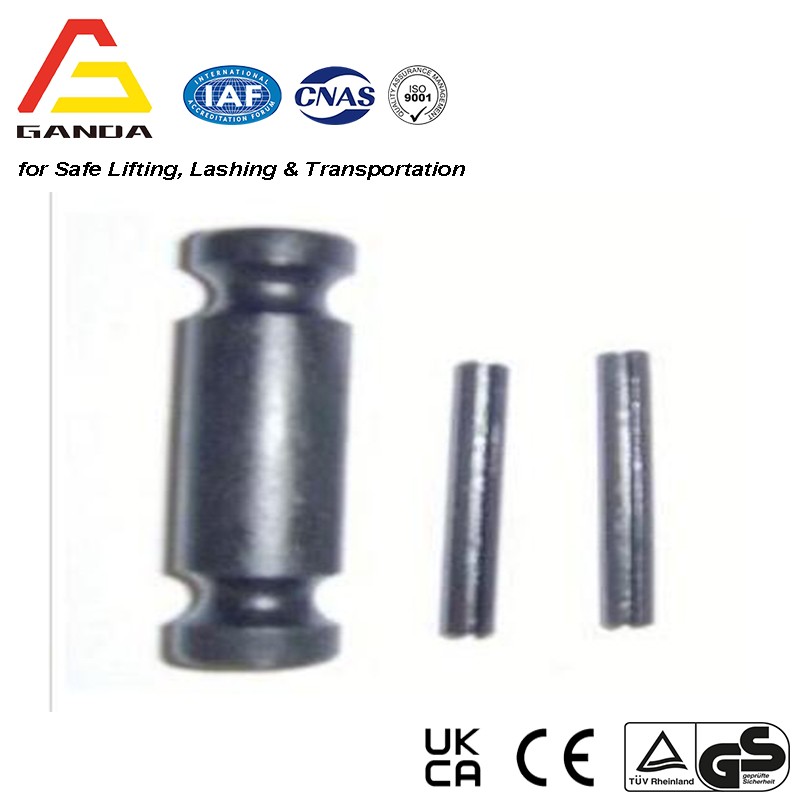

GA1006 SPARE PARTS
(1 BLACK PIN+2 BLACK ELASTIC CYLINDRICAL PIN)
Parameters (Unit: mm)
Item Code | Size | Item code | Size | |
GA-1006-6 | 6-10 | GA-16 | 16-10 | |
GA-1006-8 | 8-10 | GA-20 | 20-10 | |
GA-1006-10 | 10-10 | GA-22 | 22-10 | |
GA-1006-13 | 13-10 |
