G80 Eye Sling Hook
Size: 6mm to 32mm
SF: 4:1
Color: Blue

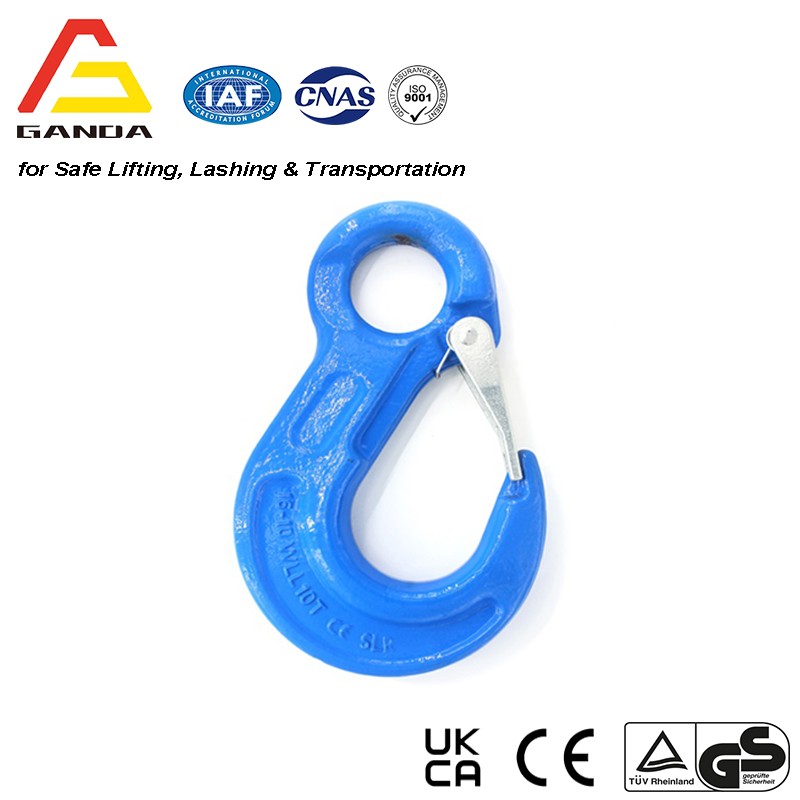

G100 Alloy Eye Sling Hook for Chain Sling
The alloy eye sling hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastic spraying;
● Color code: Blue RAL5015.

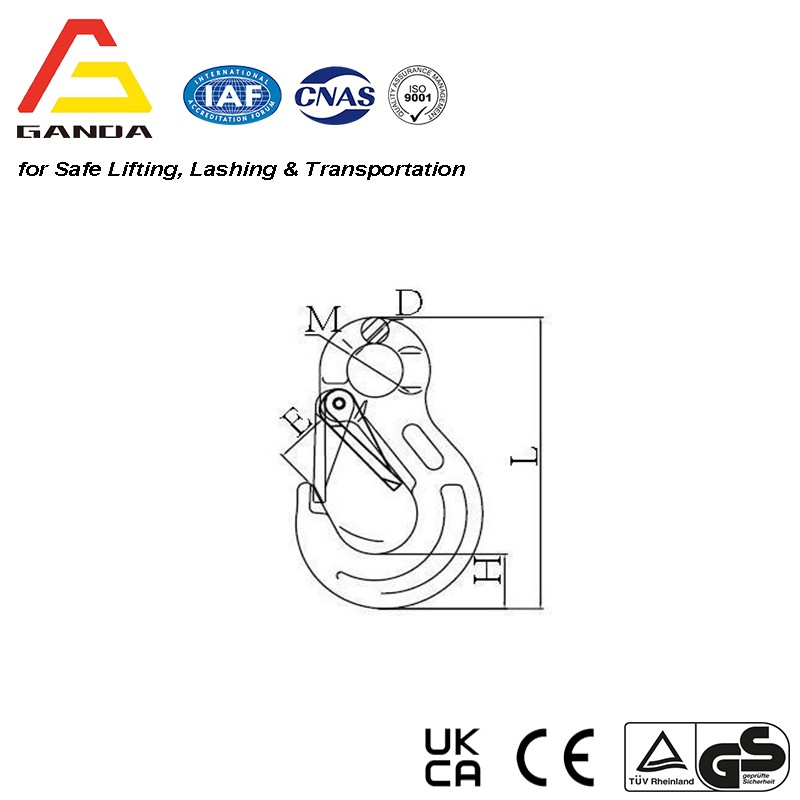

Parameters (Unit: mm)
Item code | Weight (kg) | Working load limit (t) | Breaking load (t) | D±1 | E±2 | H±1 | M±1 | L±2.5 |
10-GA1003-06 | 0.32 | 1.4 | 5.6 | 10 | 18.5 | 21 | 20.5 | 111 |
10-GA1003-08 | 0.6 | 2.5 | 10 | 11 | 25 | 27.5 | 25 | 137.5 |
10-GA1003-10 | 1.2 | 4 | 16 | 16 | 28 | 33 | 34 | 171.5 |
10-GA1003-13 | 2.2 | 6.7 | 26.8 | 19 | 38 | 43.5 | 43 | 219 |
10-GA1003-16 | 3.5 | 10 | 40 | 24.5 | 44 | 50 | 50 | 260 |
10-GA1003-20 | 7.15 | 16 | 64 | 27 | 52 | 56 | 55 | 298 |
10-GA1003-22 | 11.5 | 19 | 76 | 29 | 66 | 62 | 60 | 330 |
10-GA1003-26 | 12.2 | 26.5 | 106 | 35 | 73 | 75 | 70 | 376 |
10-GA1003-32 | 17.5 | 39.3 | 157.2 | 39 | 87 | 89 | 81.5 | 458 |
Ultimate load is 4 times the Working Load Limit.
