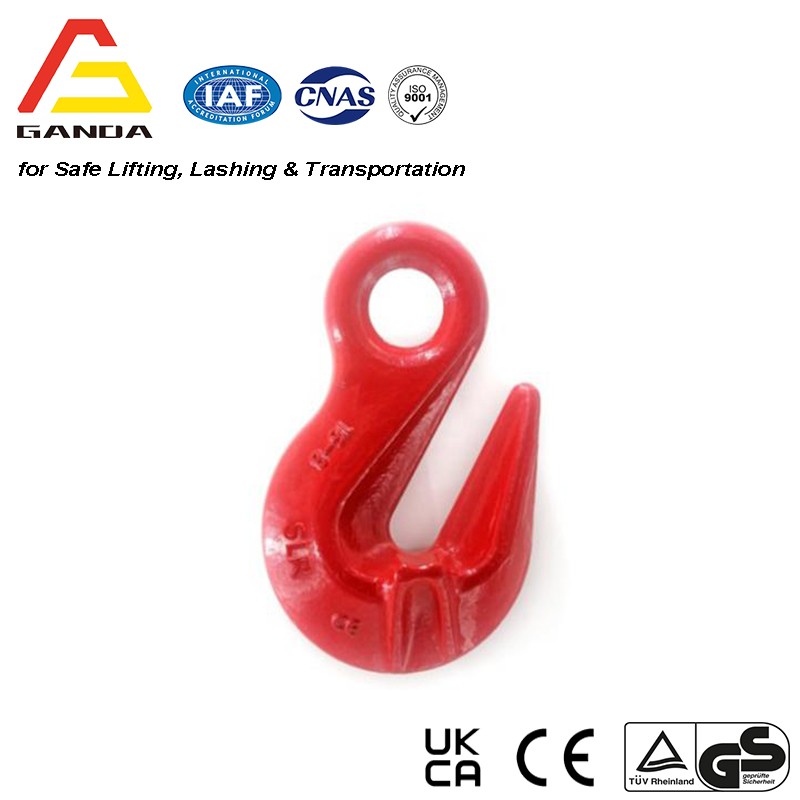

G80 Eye Shortening Grab Hook
Size: 6mm to 32mm
SF: 4:1
Color: Yellow, Red, Orange
G80 Eye Shortening Grab Hook Features
● Forged super alloy steel- Quenched and Tempered.
● Suitable for EN818-2 G80 chain.
● Individually proof test at 2.5 times Working Load Limit.
● Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
● Breakage test.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code:Red RAL3020 / Yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.
● Above Working Load Limit is based on side pull.

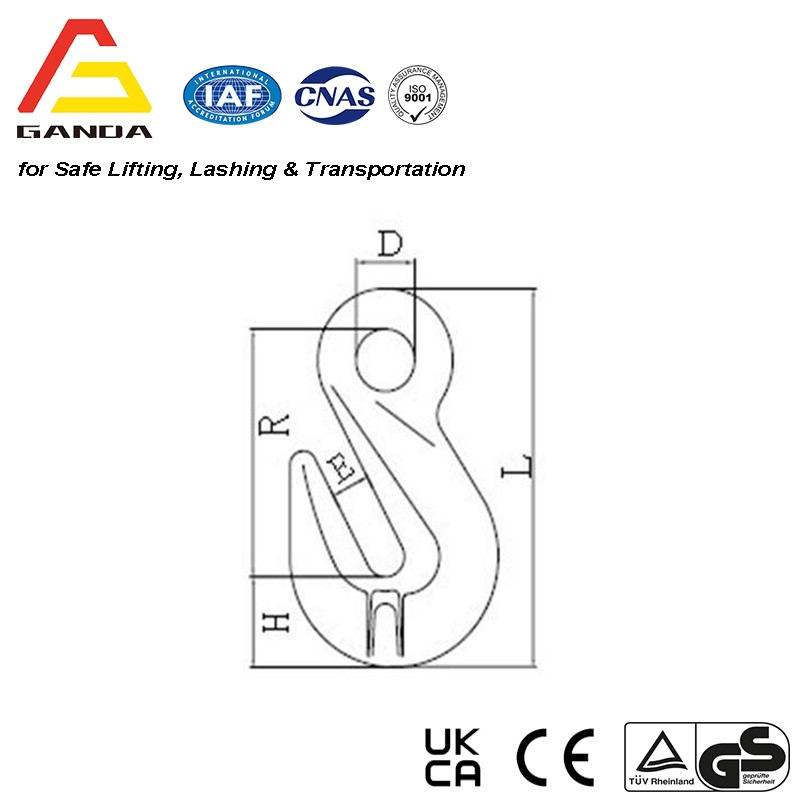

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | E±0.5 | D±1 | H±1 | R±2 | L±2 |
8-GA085-06 | 0.14 | 1.12 | 4.48 | 8 | 13.5 | 17.9 | 51.4 | 75.3 |
8-GA085-7/8 | 0.245 | 2 | 8 | 10.8 | 18 | 20 | 61.5 | 91.2 |
8-GA085-10 | 0.65 | 3.15 | 12.6 | 13 | 20 | 29 | 80 | 122 |
8-GA085-13 | 1.39 | 5.3 | 21.2 | 16.5 | 26 | 42.8 | 99.7 | 158 |
8-GA085-16 | 2.2 | 8 | 32 | 20 | 30.5 | 47.7 | 104 | 169 |
8-GA085-20 | 4.6 | 12.5 | 50 | 25 | 37.5 | 56 | 140 | 219 |
8-GA085-22 | 8.2 | 15 | 60 | 28 | 44 | 68 | 165 | 259 |
8-GA085-26 | 9.8 | 21.2 | 84.8 | 30 | 44 | 77 | 188.8 | 298 |
8-GA085-32 | 19.4 | 31.5 | 126 | 38 | 57 | 95 | 228 | 361 |
