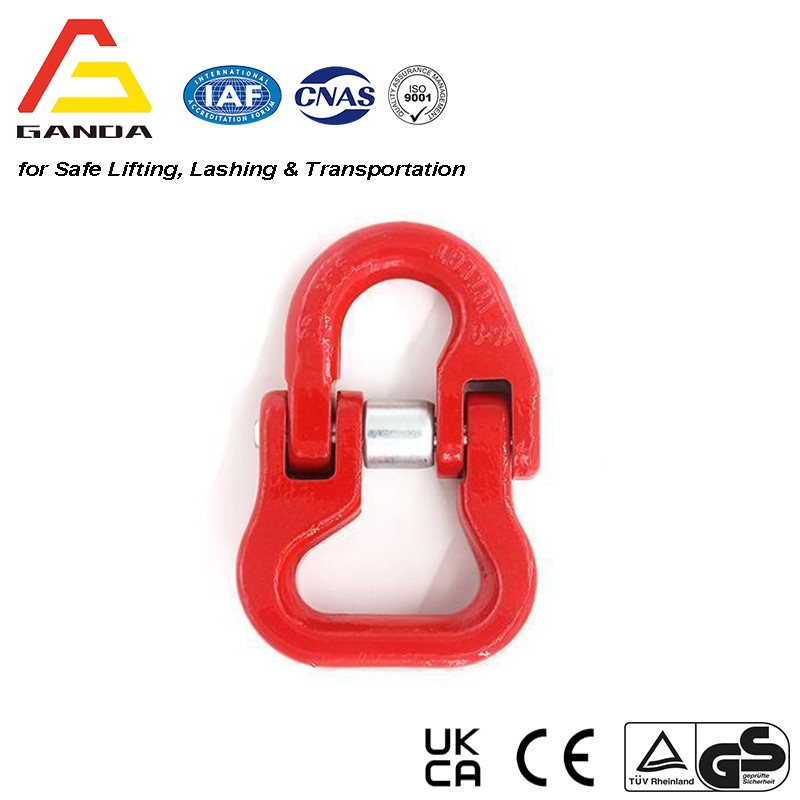

G80 Webbing Sling Connector

G80 Webbing Sling Connector
Size: 6mm to 32mm
SF: 4:1
Color: Yellow, Red, Orange

G80 Alloy Steel Webbing Sling Connector for Webbing Sling
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;

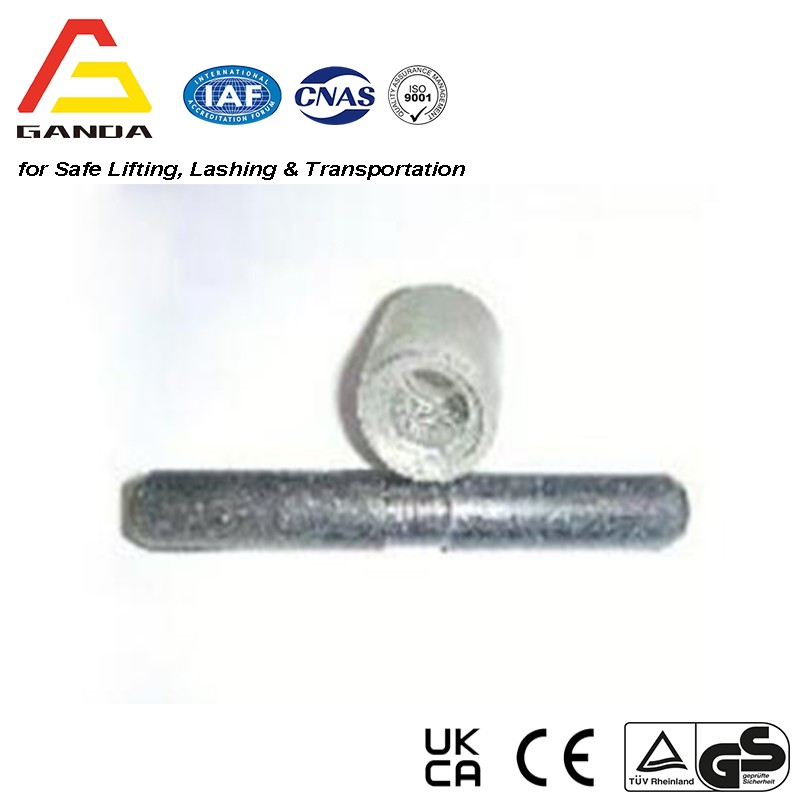

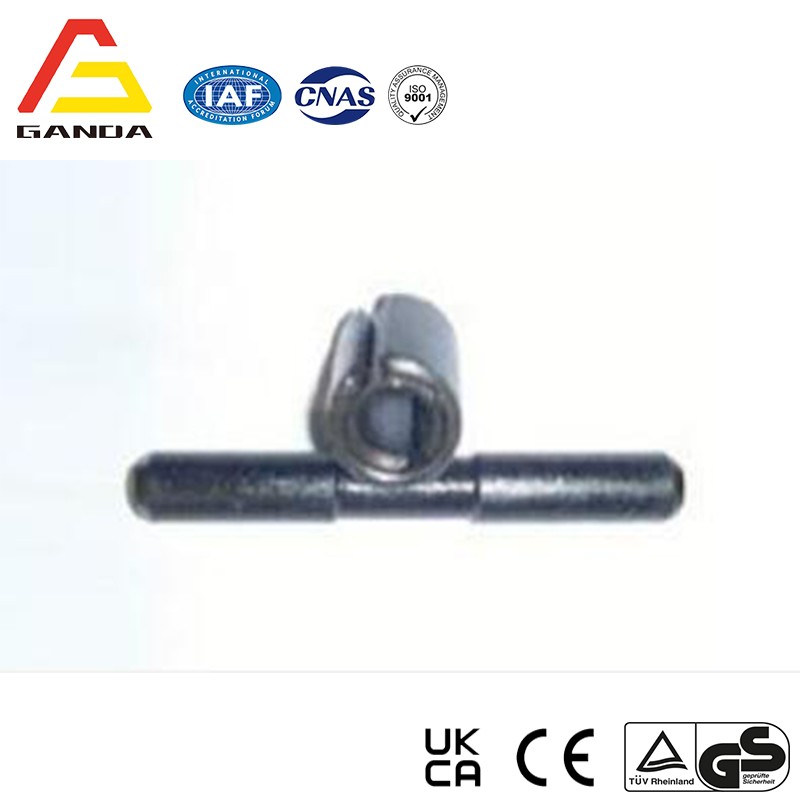

● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified.Surface treatment:
● Color code: red RAL3020/yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.
● We can provide stainless steel products.

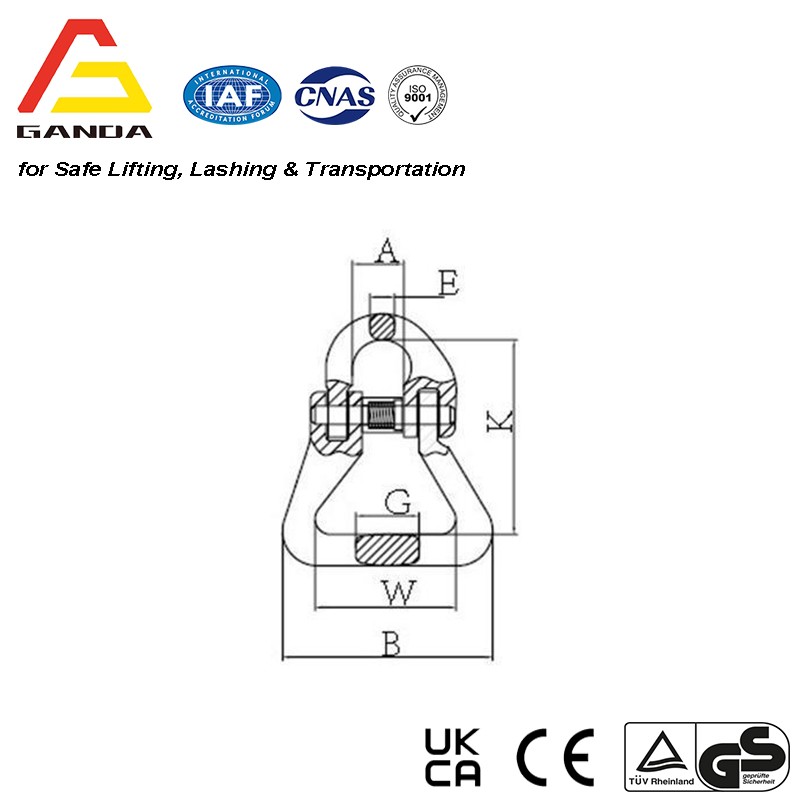

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	A±1.5	B±2	K±2	W±2	G±1	E±1
8-GA001-06	0.2	1.12	4.48	15	60	56	40	18	7
8-GA001-7/8	0.3	2.0	8.0	20	61.5	63.7	40	24	9.5
8-GA001-10	0.68	3.15	12.6	24	66	83	39	30.5	11
8-GA001-13	1.47	2.3	21.2	28	88	93.7	55	36.8	16.5
8-GA001-16	2.3	8	32	34.5	108	120	65.5	45.2	19.8
8-GA001-20	3.3	12.5	50	41	129	138	80	51.8	23
8-GA001-22	6.89	15	60	50	191	180	126	70	26
8-GA001-26	10.62	21.2	84.8	58	228.4	209.5	152	86	30
8-GA001-32	18.92	31.5	126	72.5	252	279	160	91	55
