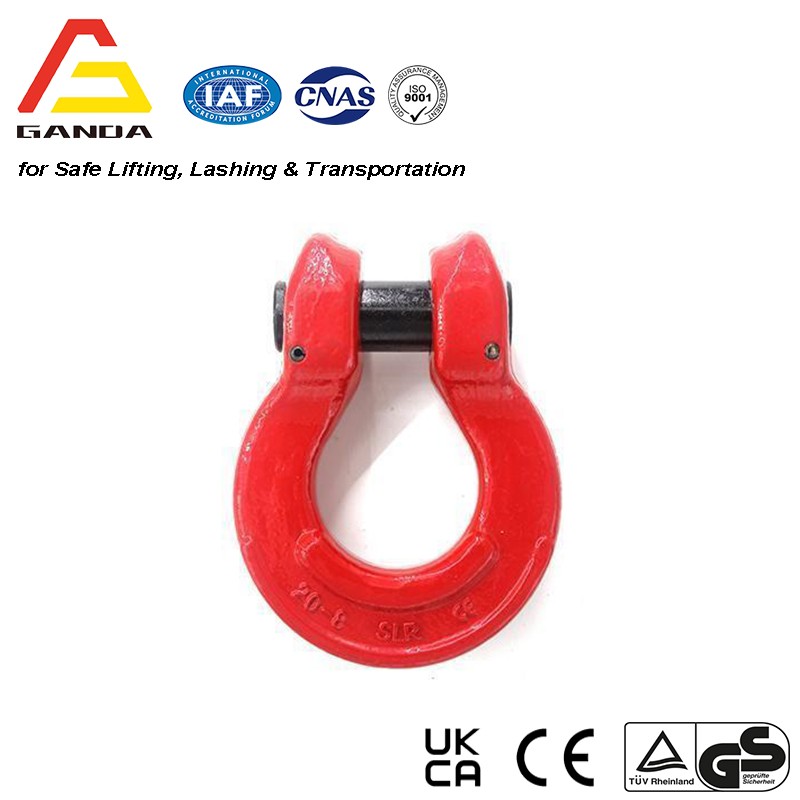

G80 Omega Link
Size: 6mm to 32 mm
SF: 4:1
Color: Yellow, Red, Orange
G80 Omega Link for Chain Sling Features
● Forged super alloy steel- Quenched and Tempered.
● Suitable for EN818-2 G80 chain.
● Individually proof test at 2.5 times Working Load Limit.
● Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
● Breakage test.
● 100% magnaflux crack detection.

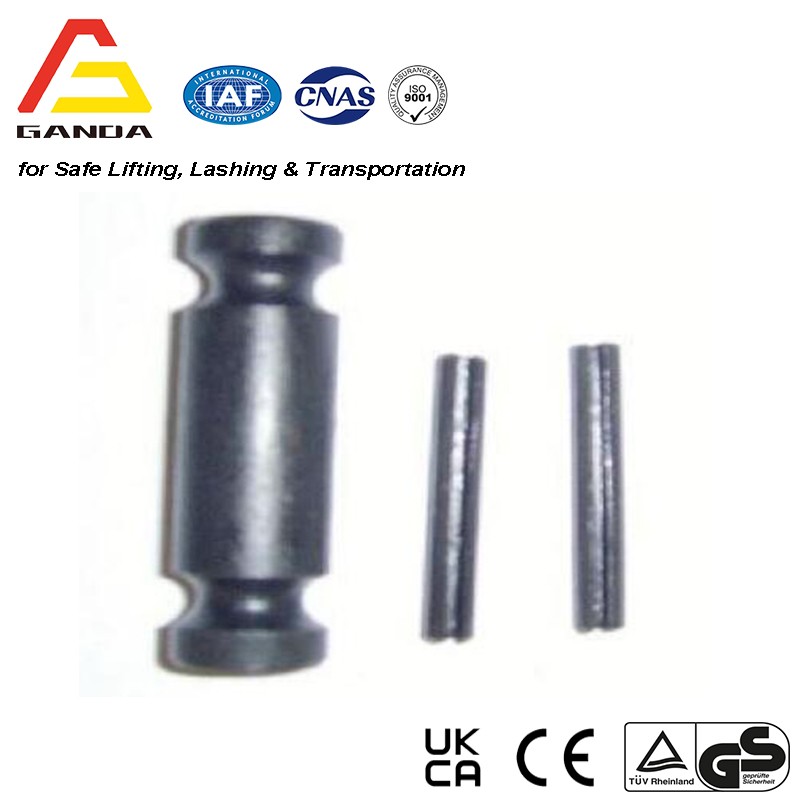

● All load pins are 100% individually inspected and tested.
● Surface finish: Powder plastified.
● Color code: red/yellow/orange

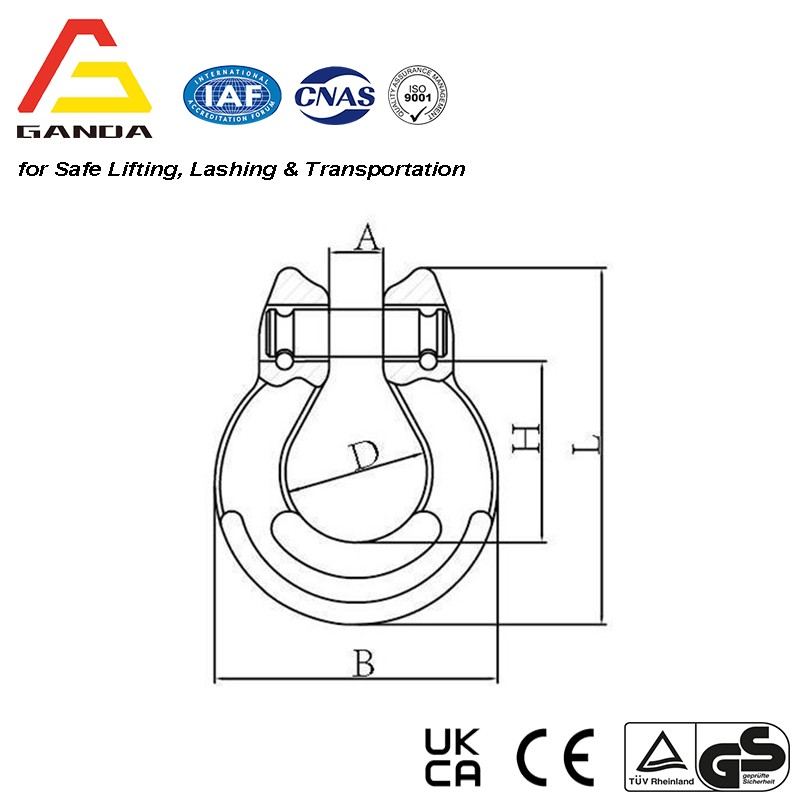

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±0.5 | B±2 | D±1 | H±1.5 | L±2 |
8-GA002-06 | 0.12 | 1.12 | 4.48 | 8 | 41 | 20.5 | 25 | 52 |
8-GA002-7/8 | 0.22 | 2.0 | 8.0 | 10 | 52 | 23.5 | 35 | 68.5 |
8-GA002-10 | 0.36 | 3.15 | 12.6 | 12 | 62 | 31.5 | 40.5 | 81 |
8-GA002-13 | 0.71 | 5.3 | 21.2 | 15 | 81 | 41 | 54 | 108 |
8-GA002-16 | 1.3 | 8 | 32 | 19 | 99 | 49.5 | 64 | 126 |
8-GA002-20 | 2.2 | 12.5 | 50 | 23 | 118 | 58 | 75.6 | 152 |
