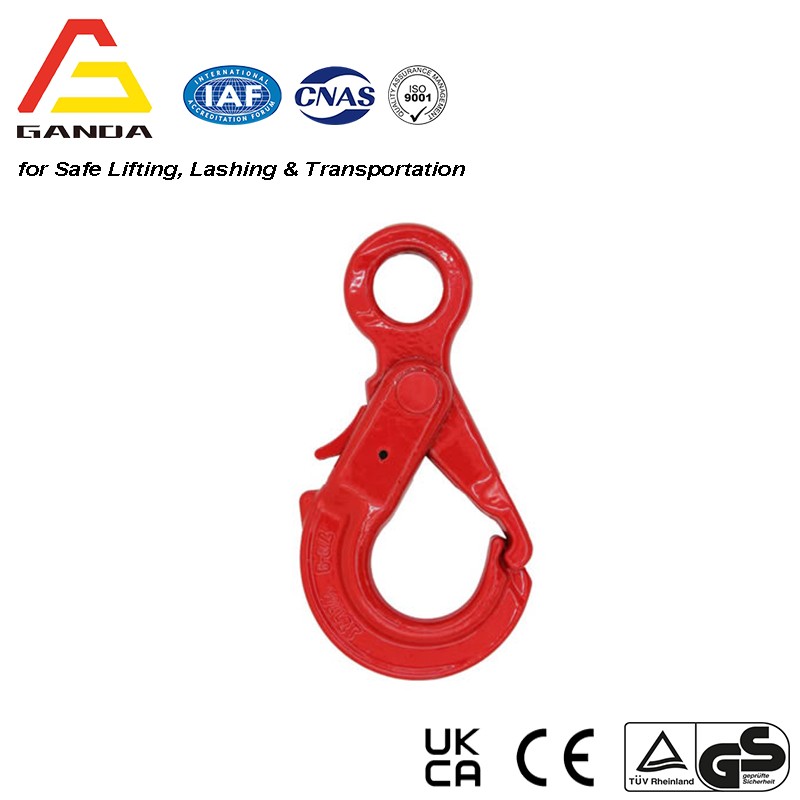

G80 Eye Self-Locking Hook with Grip
7/8mm a 16mm
FS: 4:1
Cor: Red
Technical Parameters

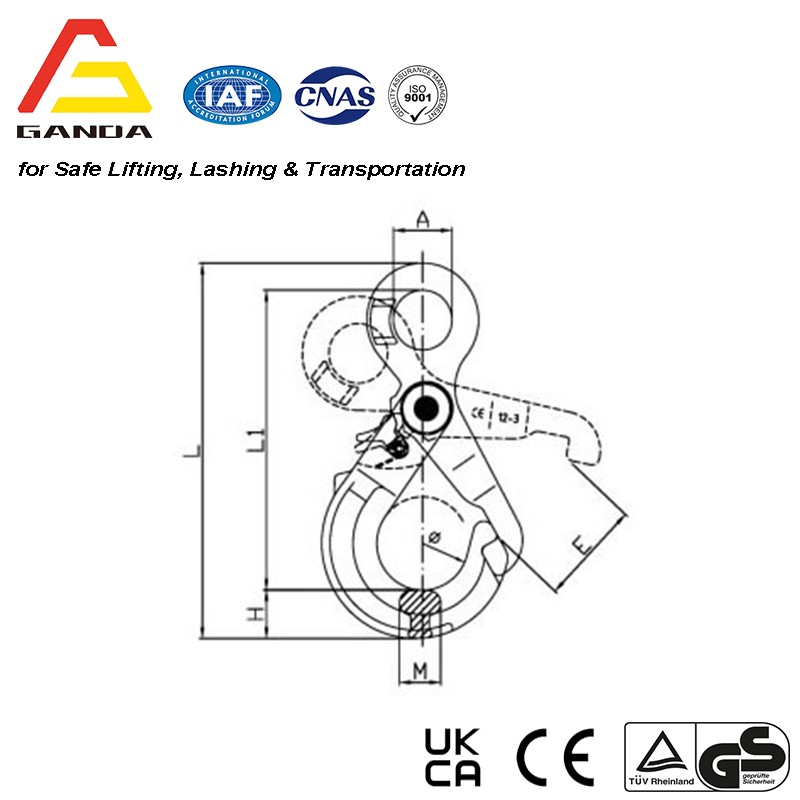

ITEM NO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±l | H±1 | E±2 | L±3 | φ±1_5 | M±1 | Ll±l |
8-GA077-7/8 | 0.68 | 2 | 8 | 25 | 22 | 34 | 164 | 40 | 18 | 131 |
8-GA077-10 | 1.3 | 3.15 | 12.6 | 32 | 26 | 42 | 201 | 50 | 22.5 | 161.6 |
8-GA077-13 | 2.06 | 5.3 | 21.2 | 40 | 31 | 50 | 243.5 | 60 | 29 | 195.5 |
8-GA077-16 | 3.73 | 8 | 32 | 50 | 38 | 60 | 298 | 70 | 35 | 238 |
