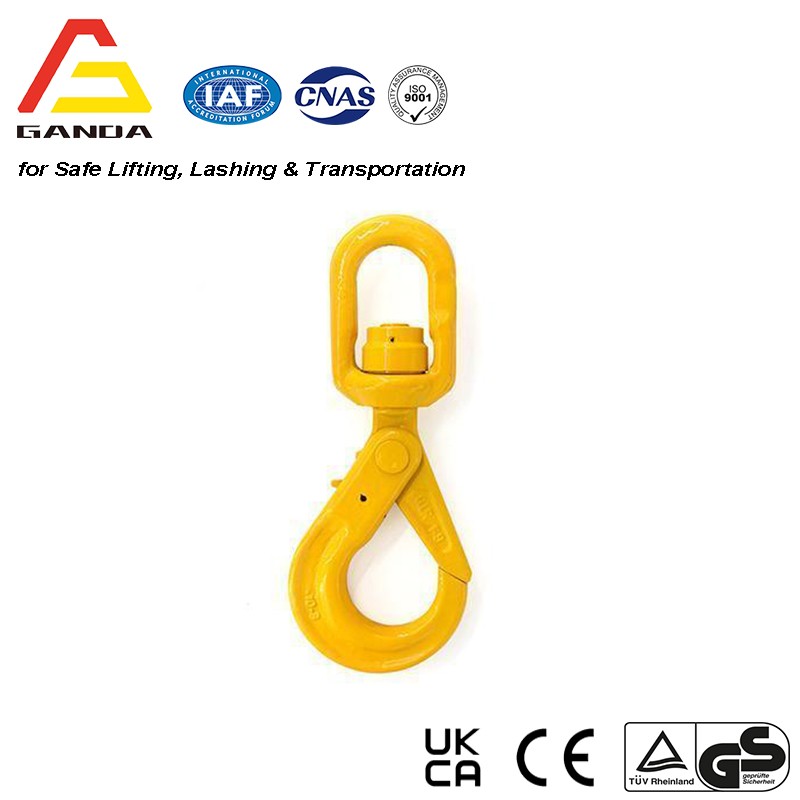

G80 Swivel Self Locking Hook with Bearing
6mm a 26 mm
FS: 4:1
Cor: Amarelo

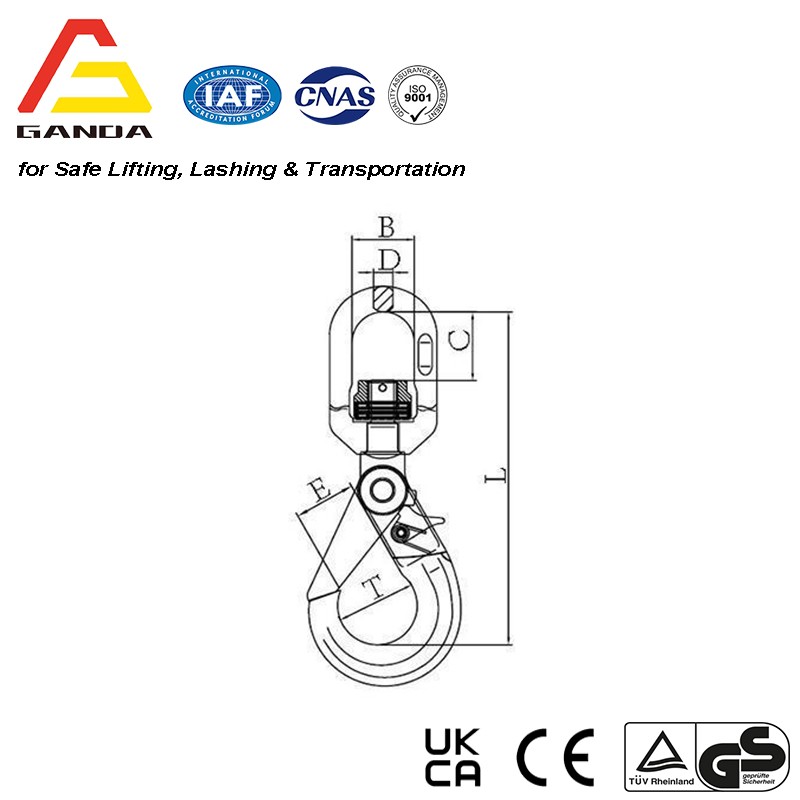

Technical Parameters
ITEMNO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | B± 2 | c ± 2 | D±1 | L±3 | T±1.5 | E±2 |
8-GA042-06 | 0.71 | 1.12 | 4.48 | 32.5 | 34.8 | 11.5 | 163.3 | 34 | 27 |
8-GA042-7/8 | 1.1 | 2 | 8 | 36 | 40 | 13 | 195.2 | 46 | 35 |
8-GA042-10 | 2 | 3.15 | 12.6 | 42 | 48 | 15.5 | 237 | 56 | 44 |
8-GA042-13 | 4 | 5.3 | 21.2 | 50 | 58 | 17 | 282 | 69 | 53 |
8-GA042-16 | 7.3 | 8 | 32 | 61 | 61 | 21.5 | 341.5 | 86 | 60 |
8-GA042-20 | 11.6 | 12.5 | 50 | 76 | 75.5 | 26.5 | 399.5 | 100 | 87 |
8-GA042-22 | 16 | 15 | 60 | 97 | 97 | 33 | 461 | 98 | 80 |
8-GA042-26 | 21.5 | 2 1.2 | 84.8 | 123 | 115 | 42 | 536.5 | 110 | 98 |
