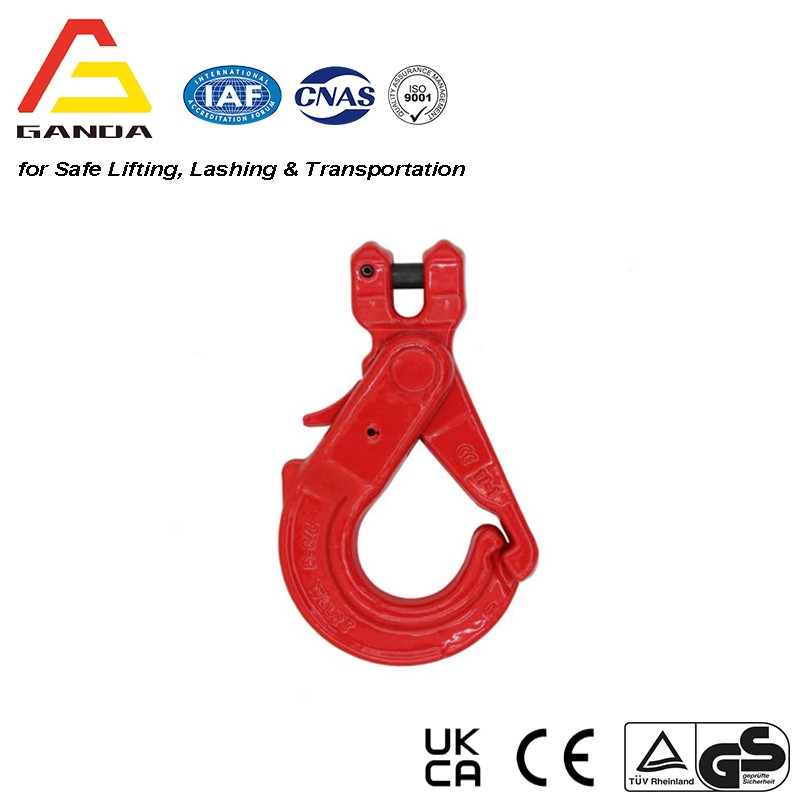

G80 Clevis Self-Locking Hook with Grip
7/8mm a 16mm
FS: 4:1
Cor: Red

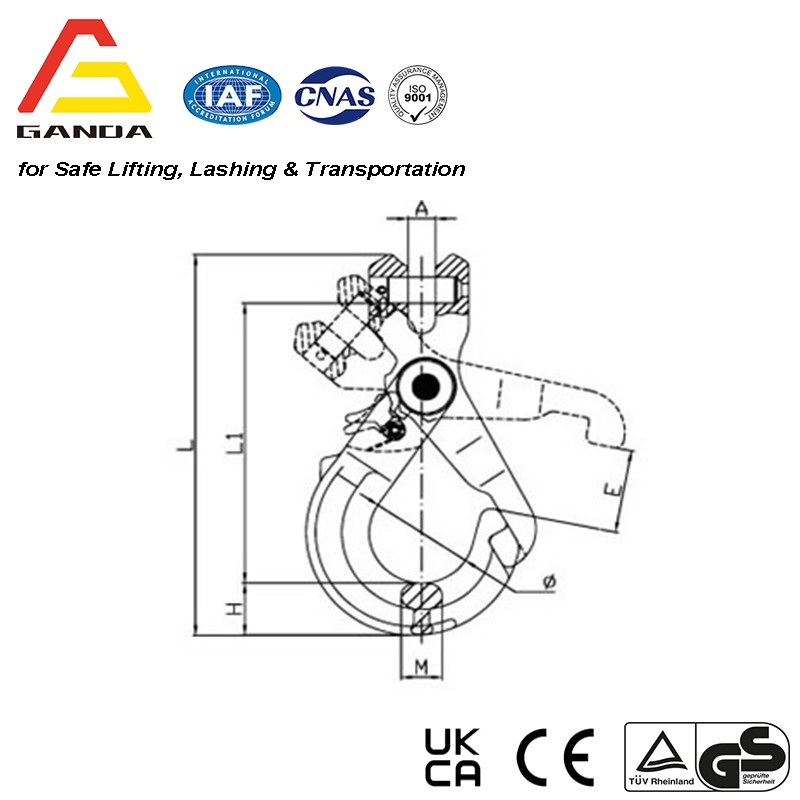

Technical Parameters
ITEM NO, | WEIGHT/Kg | Working Load Limit (T) | Breaking Load (T) | A±0,5 | H±1 | E±2 | L±3 | φ±1,5 | M±1 | Ll±2 |
8-GA078-7/8 | 0.8 | 2 | 8 | 9.5 | 21.5 | 34 | 150 | 40 | 18 | 111 |
8-GA078-10 | 1.5 | 3.15 | 12.6 | 12 | 26.2 | 44 | 189 | 50 | 22,5 | 139 |
8-GAR078-13 | 2.8 | 5.3 | 21.2 | 15 | 31 | 54 | 229 | 60 | 29 | 168 |
8-GA078-16 | 5.1 | 8 | 32 | 18.5 | 39.5 | 63 | 299 | 72 | 35 | 238 |
