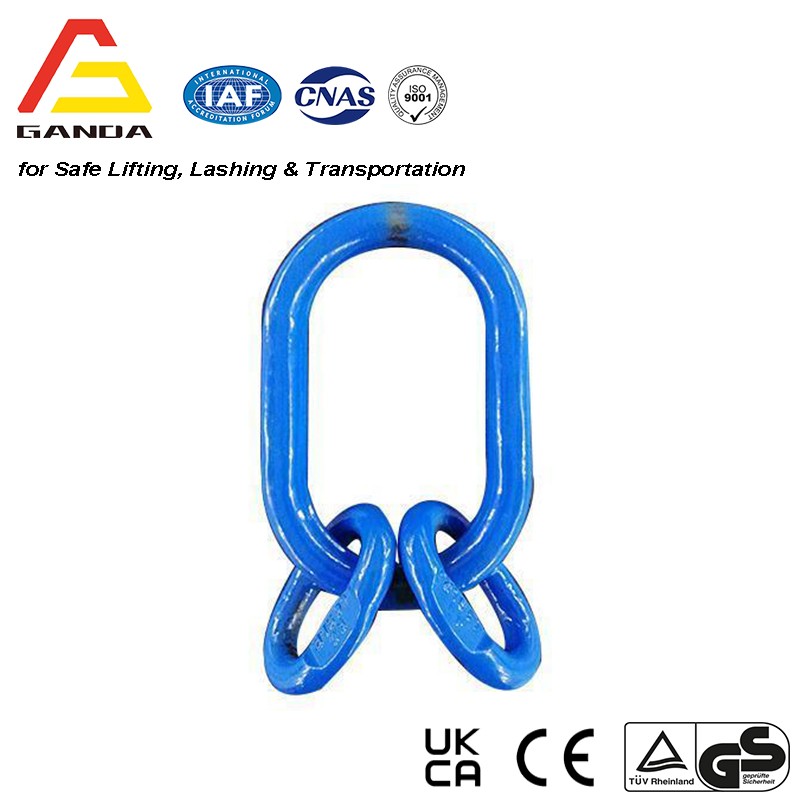

G100 Forged Master Link Assembly

G100 Forged Master Link Assembly
WLL: 6mm to 22mm
SF: 4:1 for Chain
Color: Blue

G100 Forged Master Link Assembly for Sling Features

● Main ring: forged; sub-ring: welded.
● The main ring is forged.
● There will be pressing flat only on request.
● When it is matched with chain: ultimate load is 4 times the Working Load Limit.
● Color code: Blue

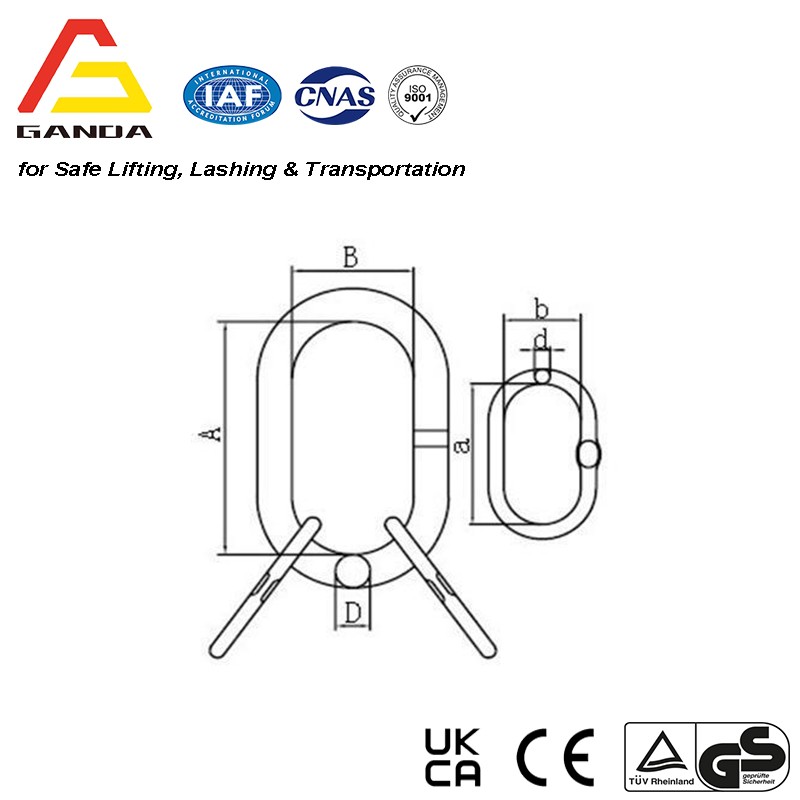

Parameters (Unit: mm)

Item Code	G100 Chain Diameter mm	Weight (kg)	Working load limit (t)	Dimension (mm)
Item Code	For 3/4 Leg Sling	Weight (kg)	Working load limit (t)	A	B	D	a	b	d
8-SLR1012-6	6MM	1.3	3	135	75	19	84	25	13
8-SLR1012-8	8MM	2.33	5.3	160	90	23	70	35	16.5
8-SLR1012-10	10MM	3.7	8	180	100	27	85	40	19
8-SLR1012-13	13MM	6.5	14	200	110	33	115	50	23
8-SLR1012-16	16MM	10.1	21.2	260	140	36	140	65	27
8-SLR1012-20	19/20MM	22.8	33.6	350	190	50	150	70	33
8-SLR1012-22	22MM	26	33.9	350	190	50	180	100	36
