Electric Chain Hoist

Model: GA-E1
-Capacity: 500kgs to 4t
-Constant Torque Inverter Motor
-All Aluminum Alloy Body
- Italy Imported GG Handle

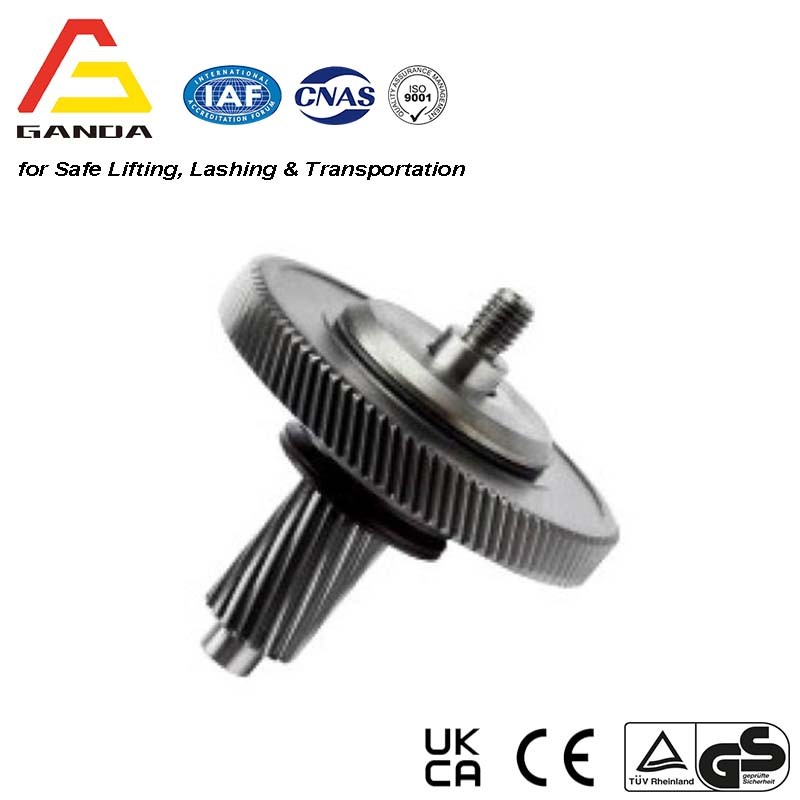

- Alloy Steel Sprocke

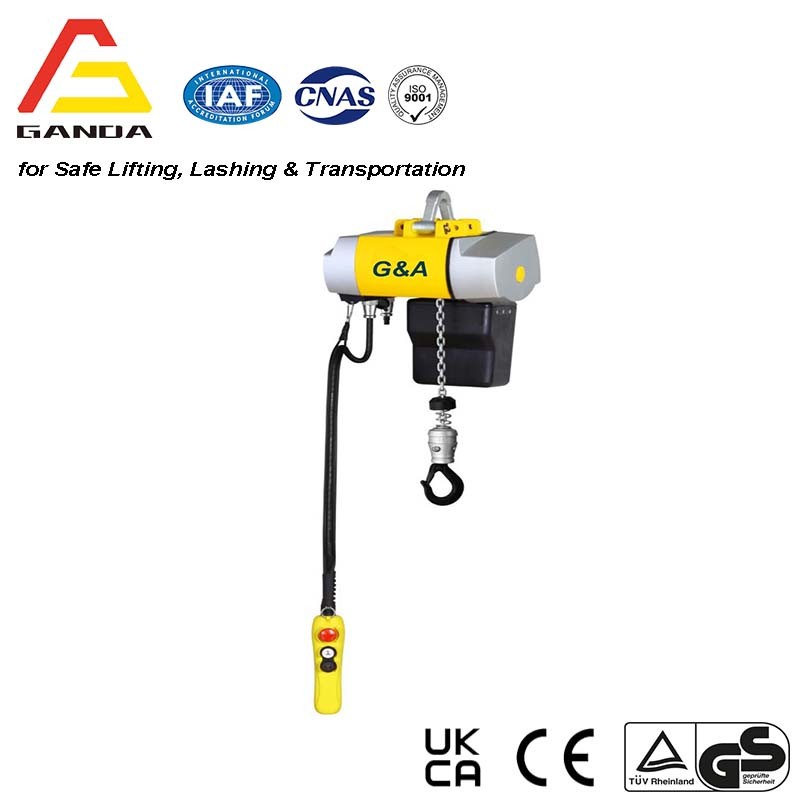

Electric Chain Hoist
G&A(GANDA) Electrica Chain Hoist is a light and small lifting device. The structure is very copact, the hoist body made of high-light aluminium alloy material, samll size, easy to use and maintain. It can be installed on single beam cranes or on I-beam or H-beam. It can also be fixed on the load bearing Structure(optional) and can be used for lifting with the simple gantry or th electric hoist fixed installation hoist.

Chain hoists in daily use at workstations have to be robust, reliable and low-maintenance.
The G&A(GANDA) electric chain hoists offer solutions for up to 2 t SWL featuring the high build quality.
The modular design allows a huge range of lifting speeds of up to 20 m/min for hook paths of up to 50 m.

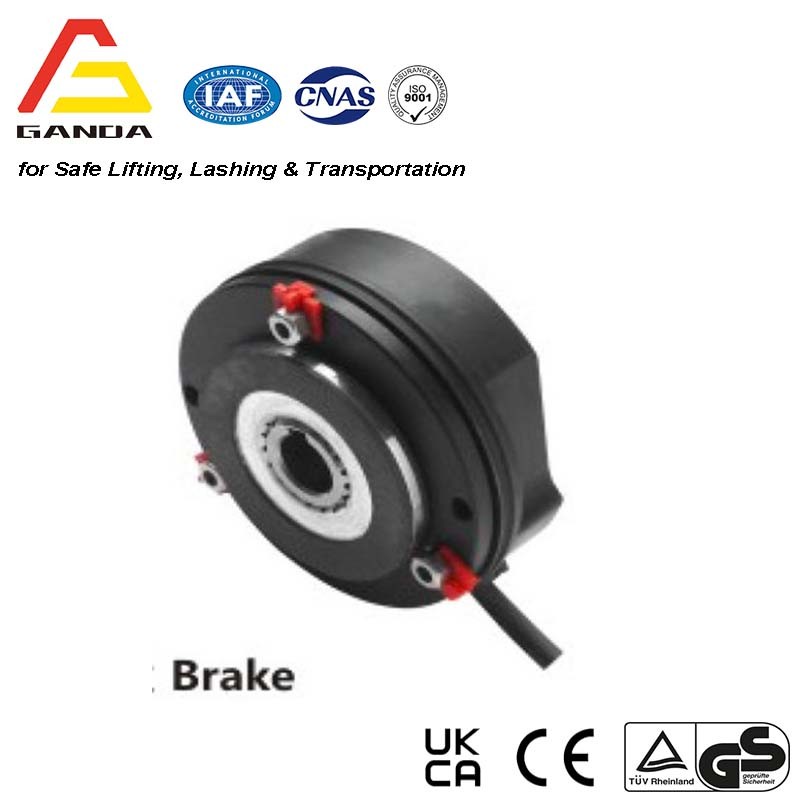

Precision lifting, safety slipping clutch and quick plug-type connectors are as integral a part of the standard configuration as is the tried and tested durable direct control for G&A(GANDA) chain hoist.

Besides operation with the KBK crane construction kit, G&A(GANDA) chain hoists can also be used on I-beam and Patented Track Crane and Monorails. The push-travel trolleys are designed for smooth, low rolling resistance travel. Electric travel drives can also be added to the trolley for heavier loads. These travel drives feature adjustable, two-speed travel as well as smooth starting and stopping.


WLL
(t)

Lifting
Height
(m)

Woking
Level
(ISO)

Speed
(m/min.)

Chain
Size
(mm)

No. of
Chains

Motor
Power
(kw)

Motor
Speed
(RPM)

Motor
Current
(A)

Voltage
(V)

HZ


FC%

N.W.
3M
(kgs)

0.52~18M54/167 X 2111.928603.83P/38050/604047.5
12~18M52/87 X 2111.928603.83P/38050/604047.5
22~18M51/47 X 2121.928603.83P/38050/604052.6
22~18M52/810 X 2813.5286073P/380504085
3.22~18M51.3/510 X 2823.5286073P/380503097
42~18M51/410 X 2823.5286073P/3805030109



INQUIRY
