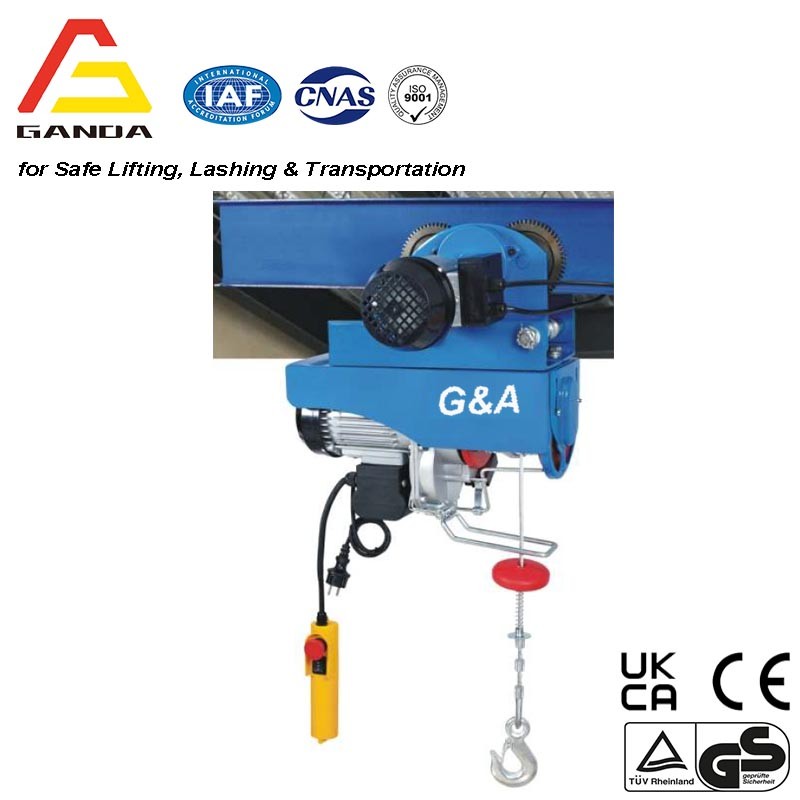

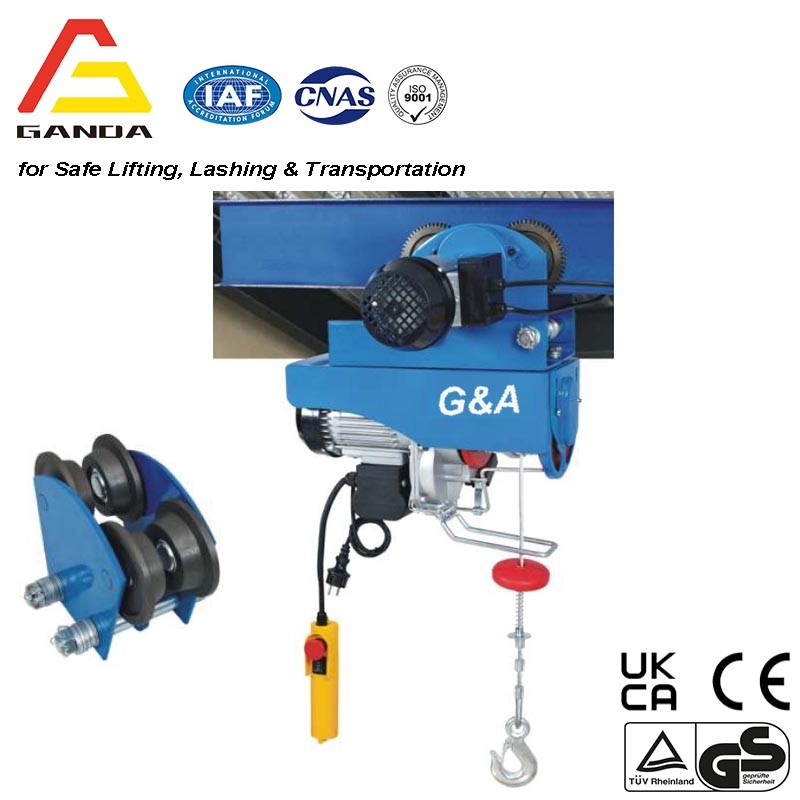

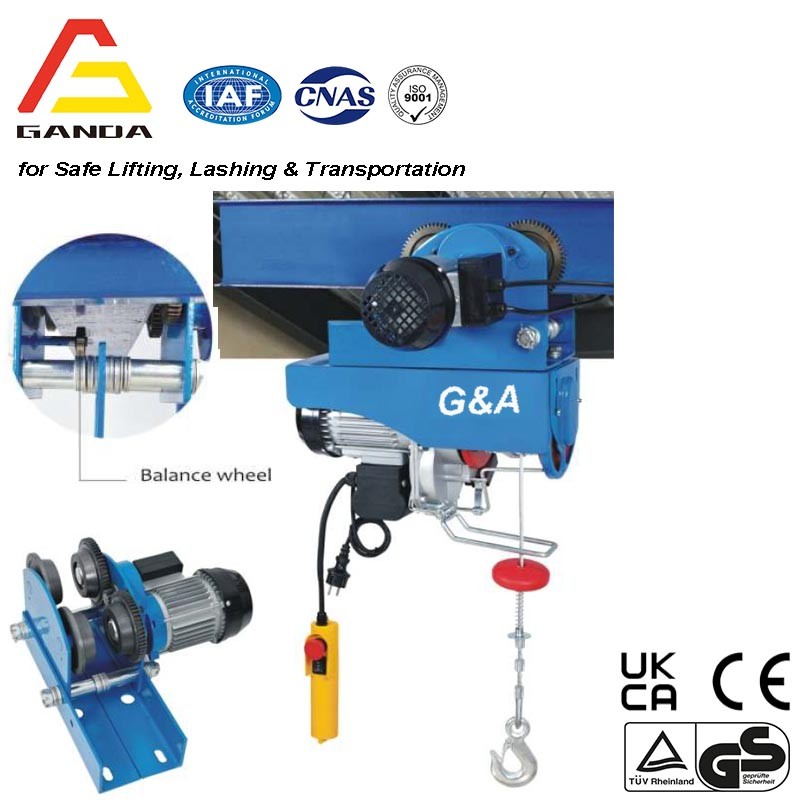

Electric Trolley Hoist

Principais características:

* Certificações: TUV/GS/CE/EMC/ROHS/PAHS, C/ETL; Classe IP: IP 54

* Alimentação do motor monofásico: 220V / 50Hz; 120 V / 60 Hz

* Regime de trabalho: ED 20% - A1 8000 ciclos de carga total

* Maior desempenho de freio, maior tempo de trabalho contínuo na primeira proteção térmica.

* Teste de carga: teste de carga dinâmica de 110% e teste de carga estática de 125%, um por um, antes da entrega.

* Teste de durabilidade: 1000 ciclos com 110% da capacidade nominal abaixo de 3 m por ciclo

* Componentes elétricos: 100% atendem à aprovação VDE/TUV/UL

* Dispositivo limitador de posição para cima/baixo

* Alça de controle de segurança com botão de parada de emergência

* 12m, 18m com certificação completa TUV/GS/CE.

Electic Trolley

GA-TD 0.5 for 100/200kg, 125/250kg, 150/300kg, 200/400kg, 250/500kg

GA-TD 1.0 for all the models

A mini electric wire rope hoist is a compact lifting device designed for handling lighter loads in various settings, including industrial and domestic environments. Here are some key features and characteristics:

Overview

• Design: Mini electric wire rope hoists are characterized by      their small size and lightweight structure, making them easy to install      and operate in confined spaces. They are often mounted on fixed structures      or tracks for vertical lifting and lowering of loads.

• Capacity: These hoists typically have a lower lifting capacity      compared to larger hoists, making them suitable for tasks such as lifting      tools, equipment, or small materials. For example, some models can lift      loads up to 2200 lbs (approximately 1000 kg) depending on the specific      design.

Features

• Power Supply: Most mini electric wire rope hoists operate on      standard household or industrial electricity (e.g., AC110/220V), which      simplifies installation.

• Safety Features: Many models include safety mechanisms such as      thermal protection devices to prevent overheating and ensure safe      operation during use.

In summary, mini electric wire rope hoists offer an efficient solution for lifting light loads in various applications, combining compact design with ease of use and installation.
Main Applications
Mini electric wire rope hoists are versatile lifting devices used across various applications due to their compact size and ease of use. Here are the main applications:

• Workshops and Garages: Ideal for lifting lightweight machinery      or tools, making them essential for DIY projects and small-scale repairs.

• Warehousing: Commonly employed for loading and unloading goods      in smaller warehouses or storage areas, helping streamline inventory      management.

• Construction Sites: Used to lift materials and equipment in      tight spaces, facilitating assembly and positioning tasks.

• Agriculture: Useful for moving equipment or supplies within      farms, enhancing efficiency in agricultural operations.

• Factories: Often utilized in small manufacturing facilities for      lifting components during assembly processes.

• Home Use: Suitable for various household tasks, such as      hoisting items in attics or garages, providing a practical solution for      everyday lifting needs.

Overall, mini electric wire rope hoists offer a practical solution for lifting lighter loads in confined spaces across multiple industries.
