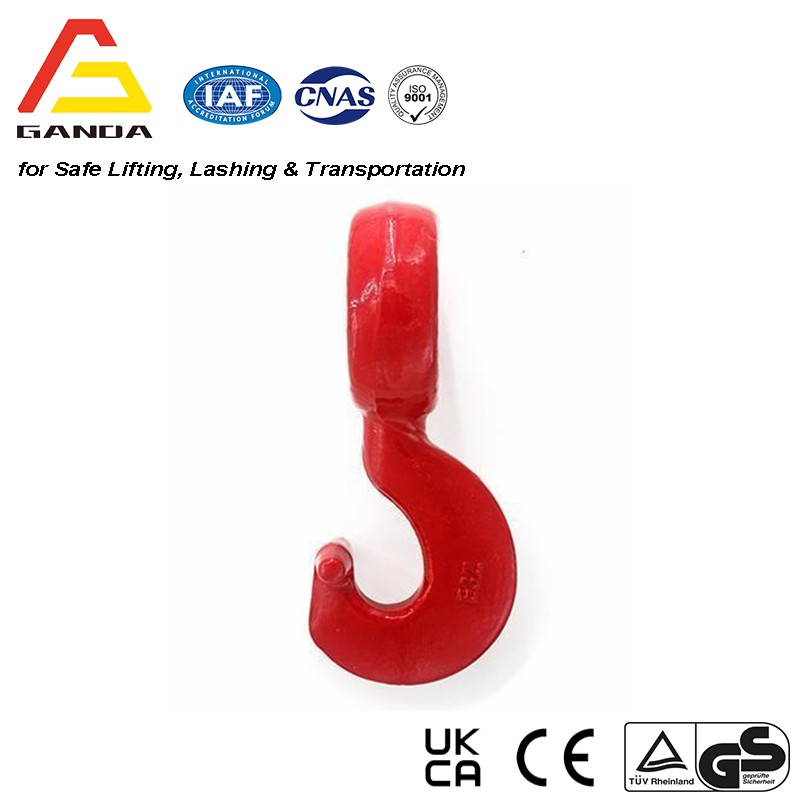

Twist Eye Choke Hook
Size: 7/8mm to 20/22mm
SF: 4:1
Color: Red
Features
● Material: alloy steel;
● Craft: forged;
● Color: RAL red.

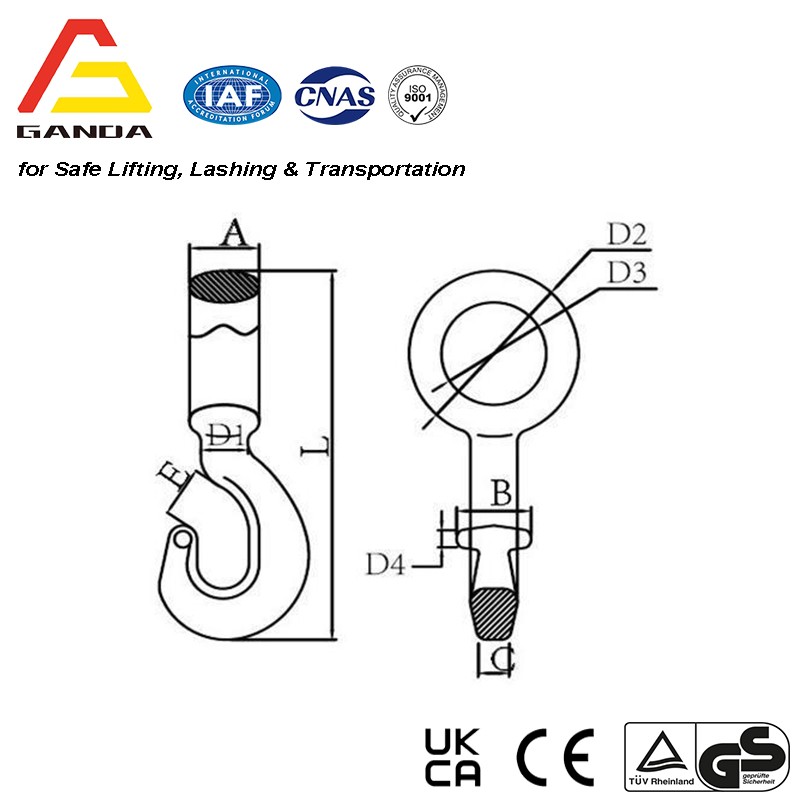

Parameters (Unit: mm)
| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Limit(t) | A±1 | B±1 | C±0.5 | D1±1 | D2±0.3 | D3±1.5 | D4 | E±0.5 | L±2 |
| GA-026-7/8-8 | 0.36 | 2 | 8 | 19 | 28 | 6.5 | 17 | 52 | 30.5 | 7.5 | 16 | 123 |
| GA-026-10-8 | 0.72 | 3.2 | 12.8 | 26 | 40 | 17.5 | 20 | 68 | 39 | 8 | 20 | 157 |
| GA-026-13-8 | 1.4 | 5.4 | 21.6 | 34 | 43 | 21 | 25 | 85 | 52 | 9.5 | 27 | 195 |
| GA-026-16-8 | 3.17 | 8.2 | 32.8 | 51 | 45.5 | 31 | 30 | 108 | 64 | 10.5 | 30 | 246 |
| GA-026-18-8 | 3.8 | 10 | 40 | 49.5 | 53 | 22 | 33.5 | 121 | 75 | 12 | 37 | 268 |
| GA-026-20/22-8 | 8.95 | 15.3 | 61.2 | 70 | 80 | 14 | 52 | 146 | 84 | 14 | 47 | 367 |
