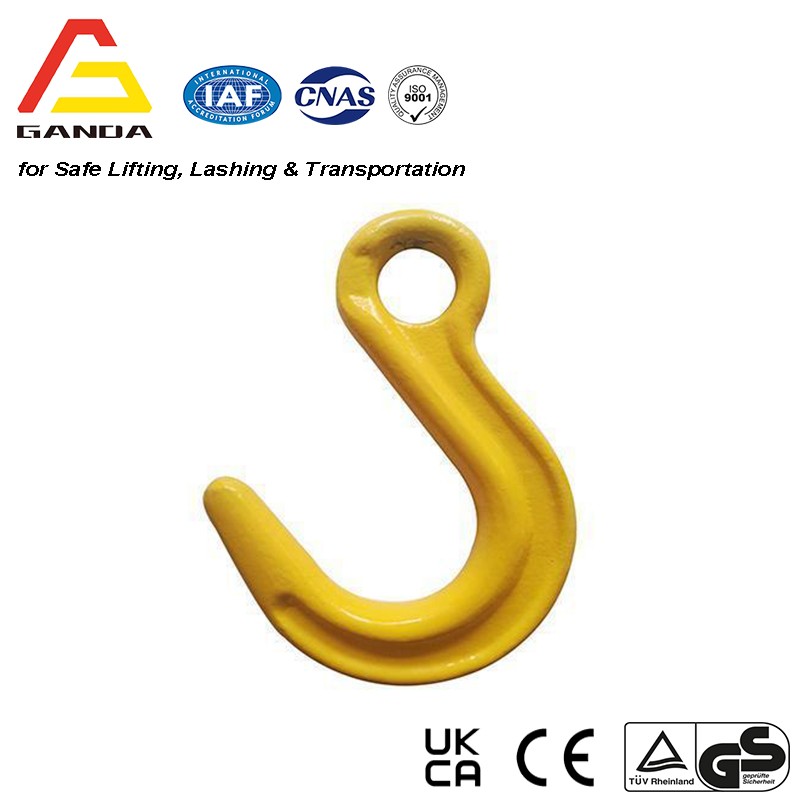

Alloy Steel Eye Foundry Hook

Alloy Steel Eye Foundry Hook
SF: 4:1
Color: Yellow

Features
● Forged super alloy steel- Quenched and Tempered.
● Suitable for EN818-2 G80 chain.
● Individually proof test at 2.5 times Working Load Limit.
● Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
● Breakage test.
● 100% magnaflux crack detection.
● Surface finish: Powder plastified.
● Colour code:Red RAL3020 / Yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.

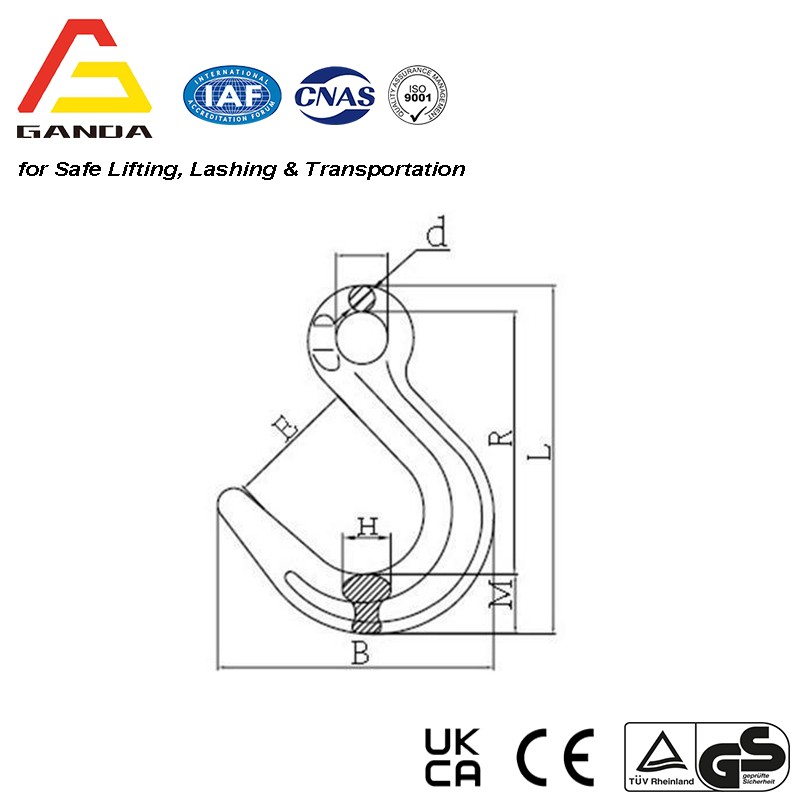

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	D	L	B	R	E	d	H	M
6MM	0.382	1.12	4.48	20.5	133	100	102.7	49	10	17	19
7/8MM	0.72	2	8	24	158.5	130	120.5	62	12	19	26
10MM	1.25	3.15	12.6	31.5	199	152.5	153.2	73	15	25	31
13MM	2.32	5.3	21.2	44	241.5	186	184	90	19	33	38.5
16MM	3.45	8	32	49	279	218	216	105	22	37	41
20MM	6.42	12.5	50	60	330	252	247	114	26	46	57
