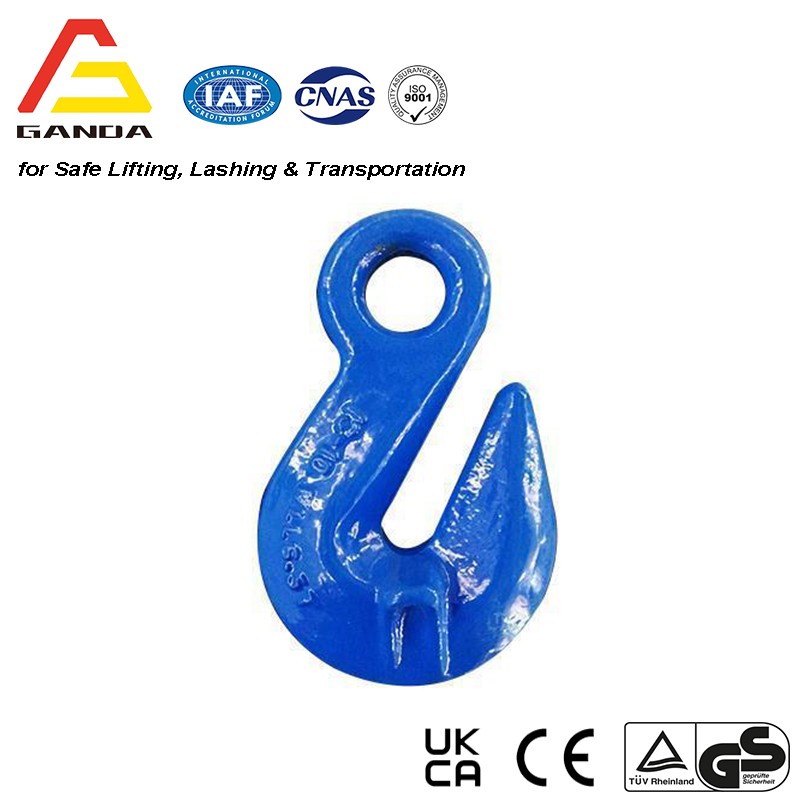

G100 Alloy Eye Shortening Grab Hook

G100 Alloy Eye Shortening Grab Hook
WLL: 6mm to 22mm
SF: 4:1 for Chain
Color: Blue

The alloy eye shortening grab hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015.

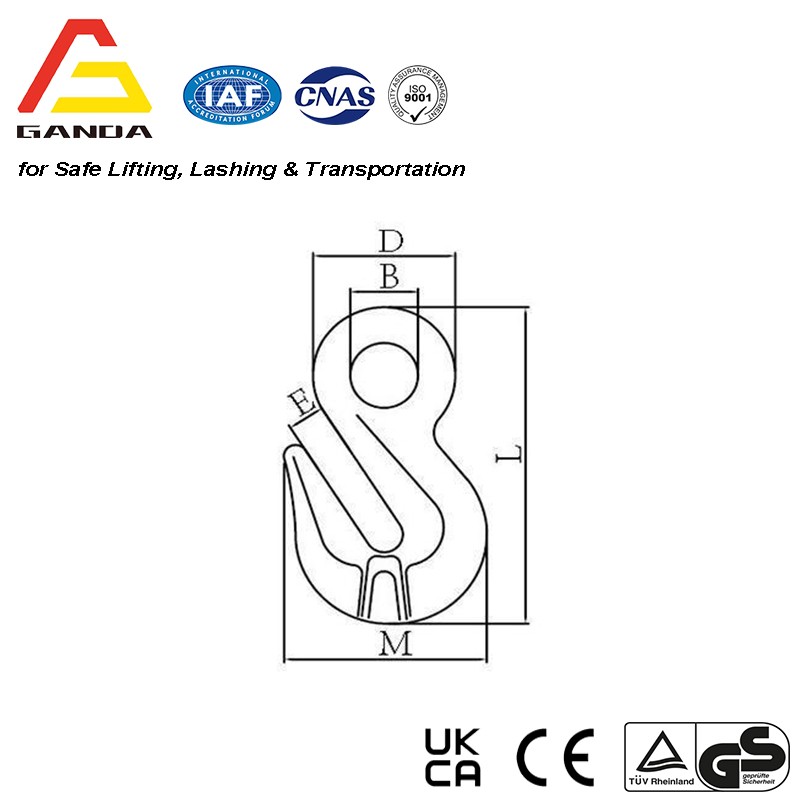

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load(t)	E±1	B±1	D±1.5	M±2	L±3
10-GA1008-06	0.2	1.4	5.6	8	14.5	30.5	43.5	71
10-GA1008-08	0.28	2.5	10	10.8	18	37	53	91.5
10-GA1008-10	0.72	4	16	13.5	22.5	48.5	72	127.5
10-GA1008-13	1.6	6.7	26.8	16.5	28	59	96	163
10-GA1008-16	2.45	10	40	19.2	36	74	112.5	183
10-GA1008-20	4.72	16	64	24	43.5	89.5	143	227
10-GA1008-22	8.2	19	76	27	48.5	100.5	160.5	260.5
