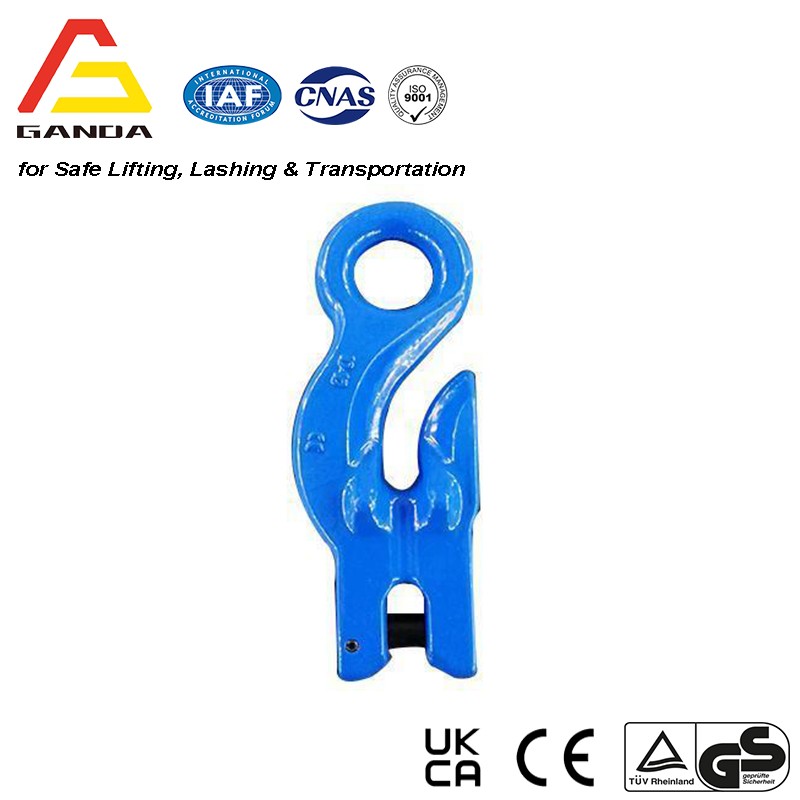

G100 Alloy Steel Eye Grab Hook

G100 Alloy Steel Eye Grab Hook
WLL: 6mm to 20mm
SF: 4:1 for Chain
Color: Blue

The alloy steel eye grab hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Power plastified

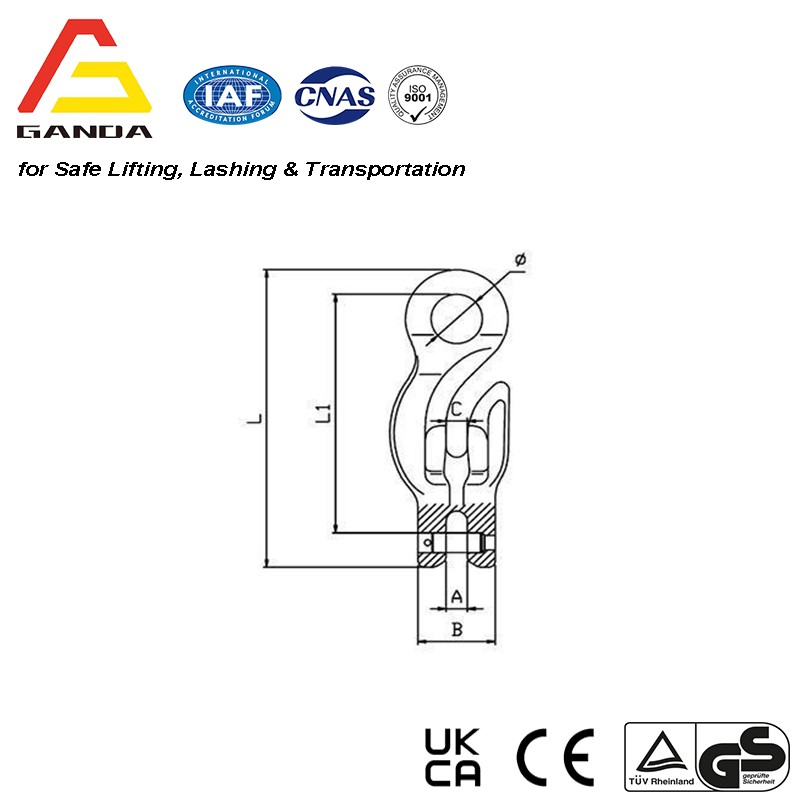

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load (t)	ф±2	A±0.5	B±2	C±0.5	L1±2	L±3
GA1051-6-10	0.3	1.4	5.6	18	8	32	20	88	112
GA1051-8-10	0.69	2.5	10	24	10	36	10	116	145
GA1051-10-10	1.33	4	16	30	12.5	48	12.5	145	184
GA1051-13-10	2.36	6.7	26.8	37	15.5	59.5	15.5	178	223
GA1051-16-10	4.5	10	40	45	19	70	19	216	273
GA1051-20-10	9.0	16	64	58	24.5	85	24.5	278	351
