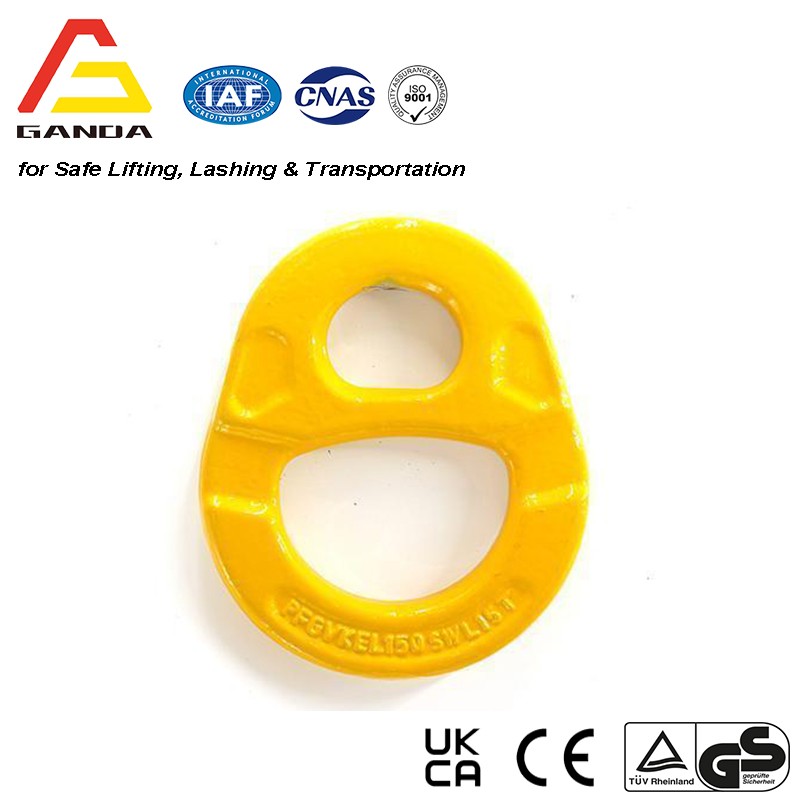

Alloy Steel Lift Ring
SF: 5:1
Color: Yellow
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020 / yellow RAL 1003.

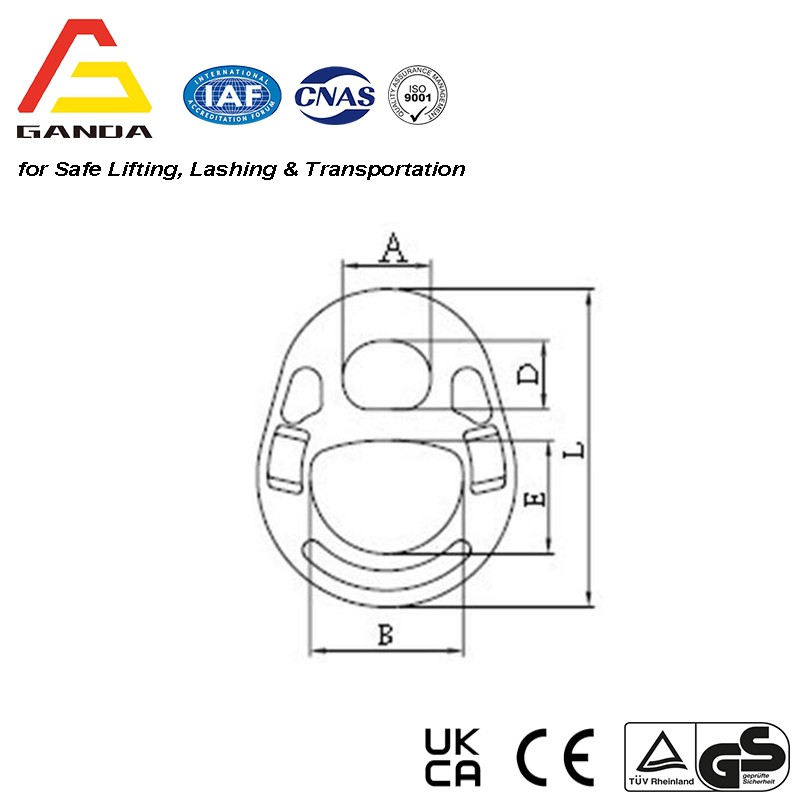

Parameters (Unit: mm)
| Item Code | Weight (kg) | Working Load Limit/t | Breaking Load/t | A±1 | B±1.2 | D±1 | E±1 | L±2 |
| 8-GA260-15T | 2.2 | 15 | 75 | 52 | 90 | 40 | 66 | 185 |
| 8-GA260-20T | 5.36 | 20 | 100 | 82 | 125 | 45.5 | 106 | 227.5 |
Ultimate load is 5 times the Working Load Limit.
