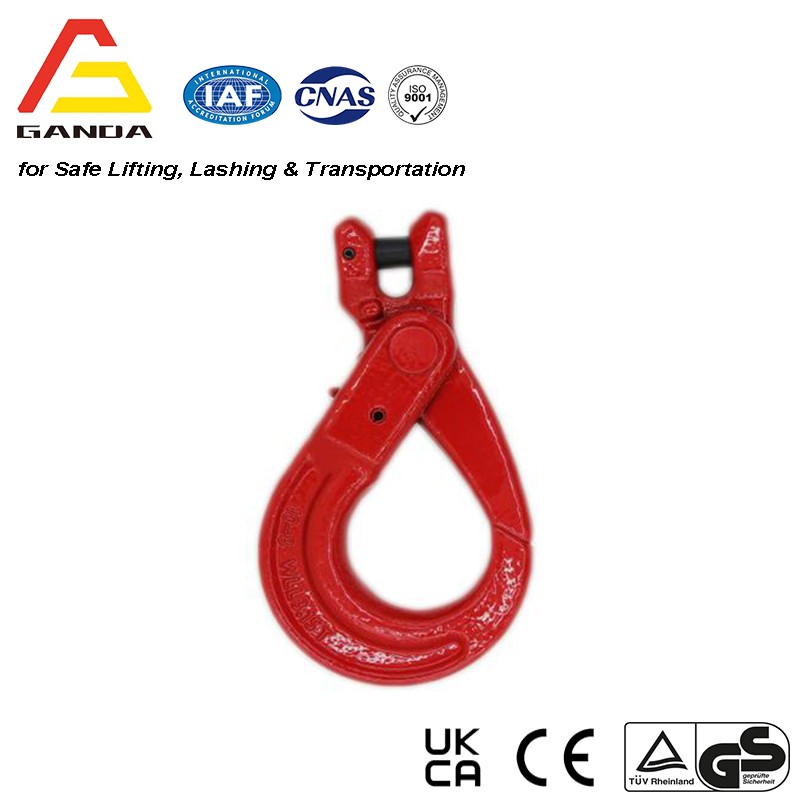

G80 Clevis Self Locking Hook
Size: 6mm to 32 mm
SF: 4:1
Color: Yellow, Red, Orange
G80 Clevis Self Locking Hook for Chain Sling Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified. Surface treatment:
● Color code: red/yellow/orange

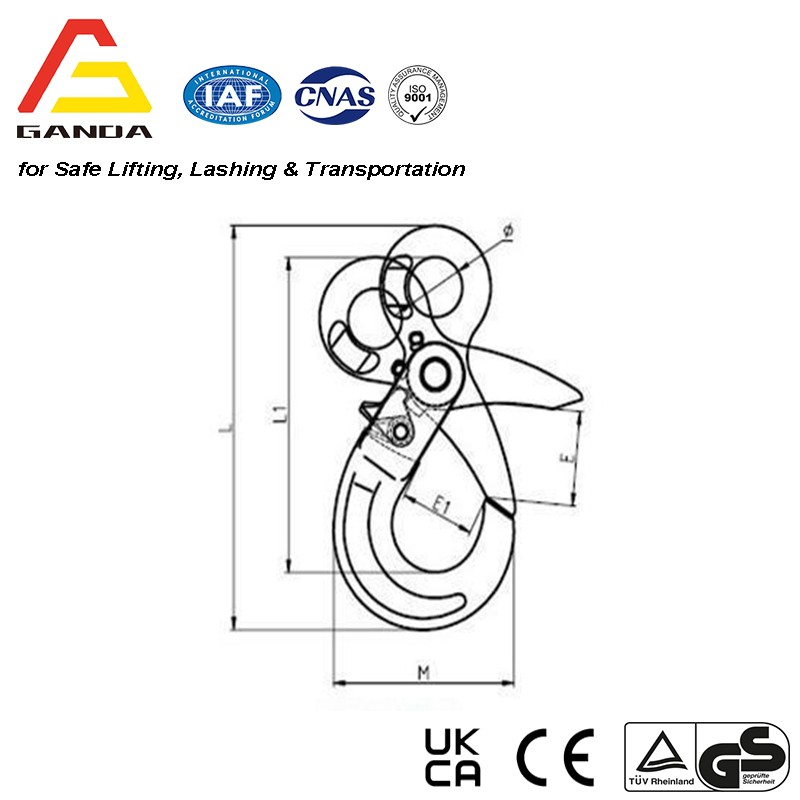

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1 | B±1 | E±2 | E1±2 | L1±3 | L±3 |
6-8 | 0.44 | 1.12 | 4.48 | 8 | 32 | 35 | 28 | 96 | 131 |
7/8-8 | 0.8 | 2 | 8 | 9.5 | 38.5 | 40 | 35.8 | 119.3 | 161.8 |
10-8 | 1.38 | 3.15 | 12.6 | 12.5 | 46 | 50 | 45 | 142 | 195 |
13-8 | 2.81 | 5.3 | 21.2 | 15 | 59 | 60 | 52.5 | 179 | 249 |
16-8 | 6 | 8 | 32 | 18.5 | 77 | 65 | 63.3 | 224.8 | 310 |
18/20-8 | 7.25 | 12.5 | 50 | 25 | 77 | 80 | 86 | 238.3 | 335 |
22-8 | 12.8 | 15 | 60 | 25 | 97.5 | 83 | 76 | 277 | 392 |
26-8 | 21.8 | 21.2 | 84.8 | 30 | 118 | 106 | 96 | 321 | 450 |
32-8 | 49.6 | 31.5 | 126 | 35 | 150 | 140 | 135 | 416 | 589.6 |
