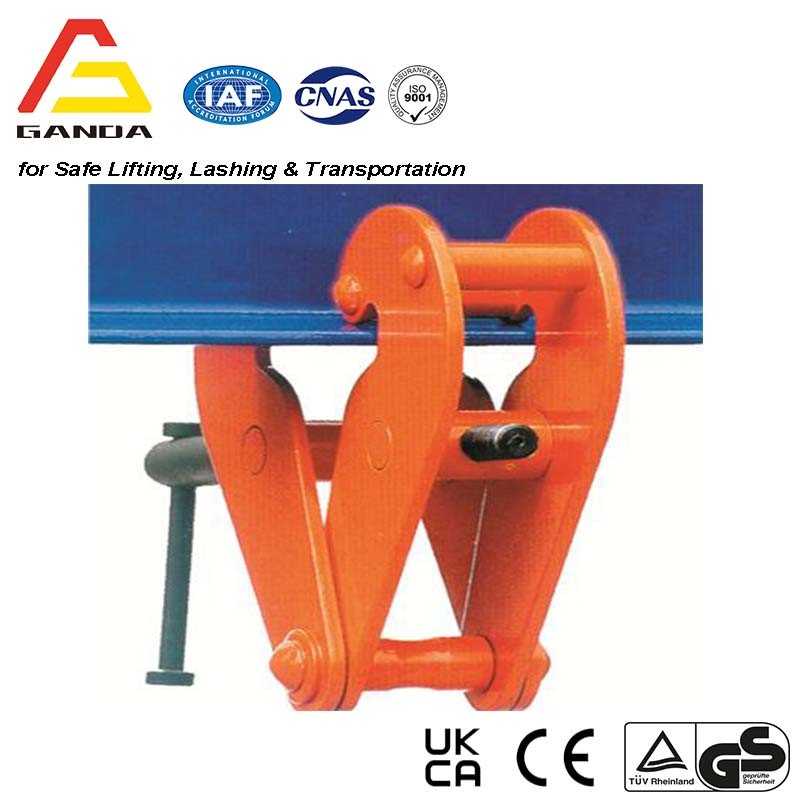

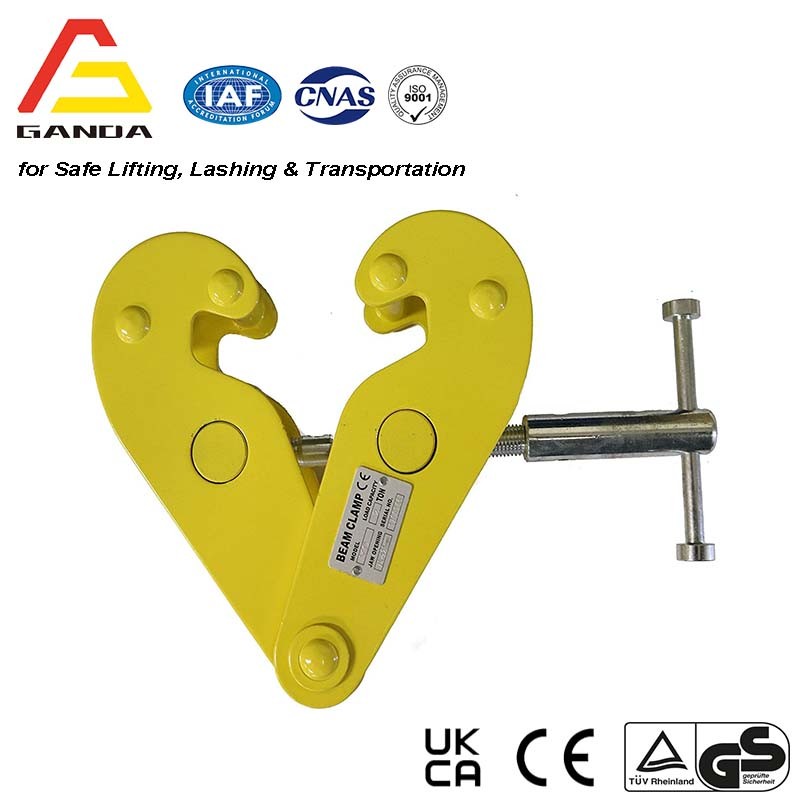

Beam Clamp

• 【HEAVY DUTY CONSTRUCTION】- The i-beam clamp is built by durable steel and the red safety coating for surface protection, which can withstand the harsh environment, ensuring longevity.

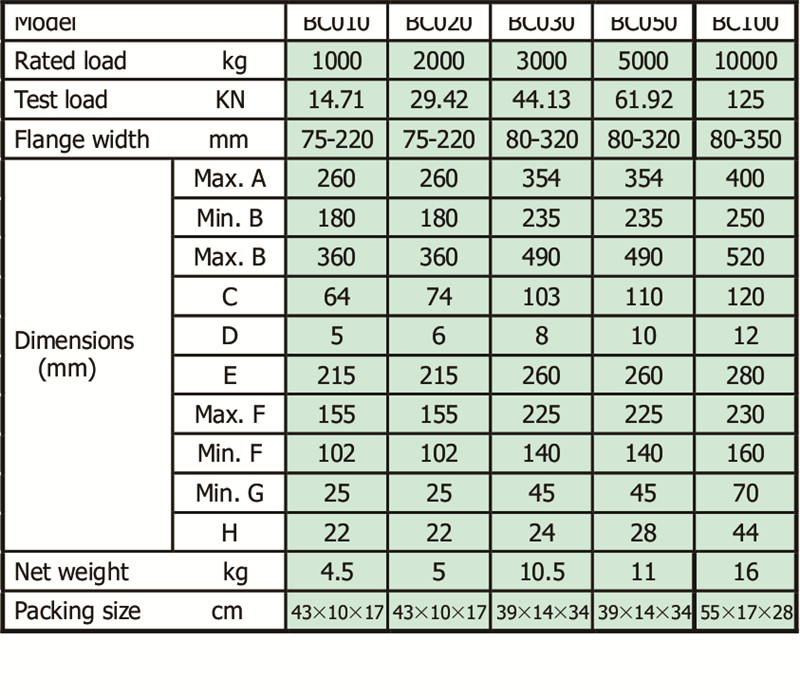

• 【ADJUSTABLE OPENING RANGE】- You can easily adjust the flange width from 75mm to 350mm. Quick adjustment to the size of the steel profile using screw and lever. This trailing beam clamp can bear 1,000kgs to 10,000kgs capacity.

• 【EASY TO USE】- Rotate the screw shaft counterclockwise to loosen the steel beam clamp, and then place it on the lower edge of the i-steel, and then rotate the screw shaft clockwise to fix the i-steel.

• 【RELIABLE & STABLE】- Built-in attachment points provide high stability and reliable use. And the spindle can be secured against loosening. Small size for applications on beams with a low base height.

• 【WIDE APPLICATION AREA】- Suitable for factories, warehouses, construction, building, goods lifting, railway construction, industrial and mining enterprises, and others. Suitable for harsh indoor or outdoor environments.

Q1: Do you have relevant certificate?

A: We have CE, ISO9001, SGS for all products, and we can assist you with any certificate application you need.

Q2: Can I add my logo on the product?

A: Yes, we can offer OEM and ODM service to you.

Q3: Can I have a sample for testing?

A: Of course, Samples are not important, but sample will be 10% higher than quantity production.

Q4: How can I have the after-service?

A: We will assist you with installation and usage of the product. Our product is lifelong maintenance.

Q5: Do you have inspection procedures for the manufacture line?

A: We have 100% self-inspection quality management system before packing.
