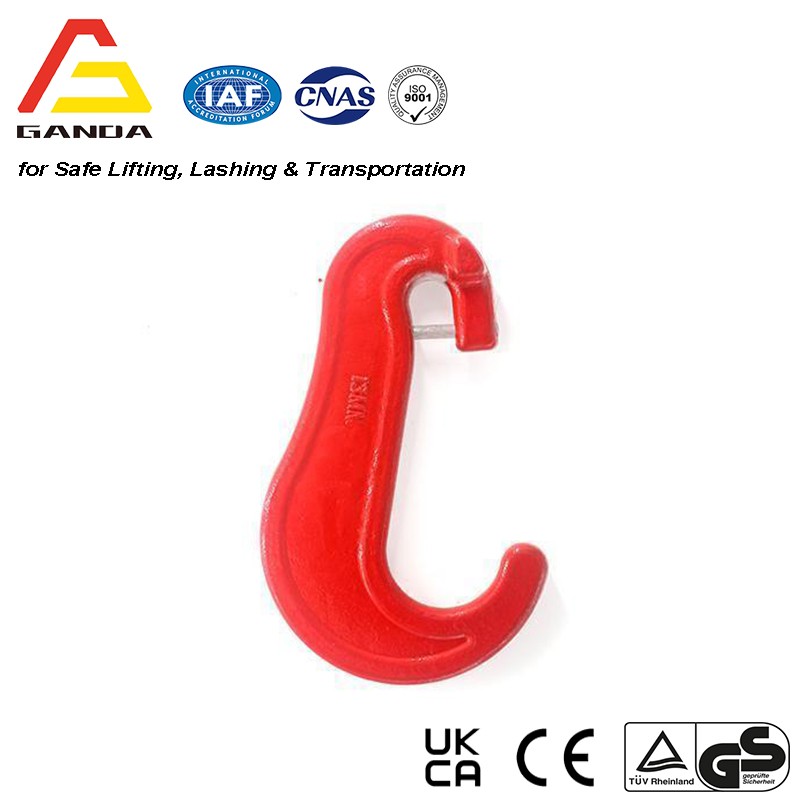

Spring Pin Lashing Type C Hook
SF: 4:1
Color: Red
Features
● The spring pin lashing type C hook can be matched with G80 lashing chain.
● It can be assembled with the lashing chains rapidly and conveniently.
● It is forged of superior alloy steel.

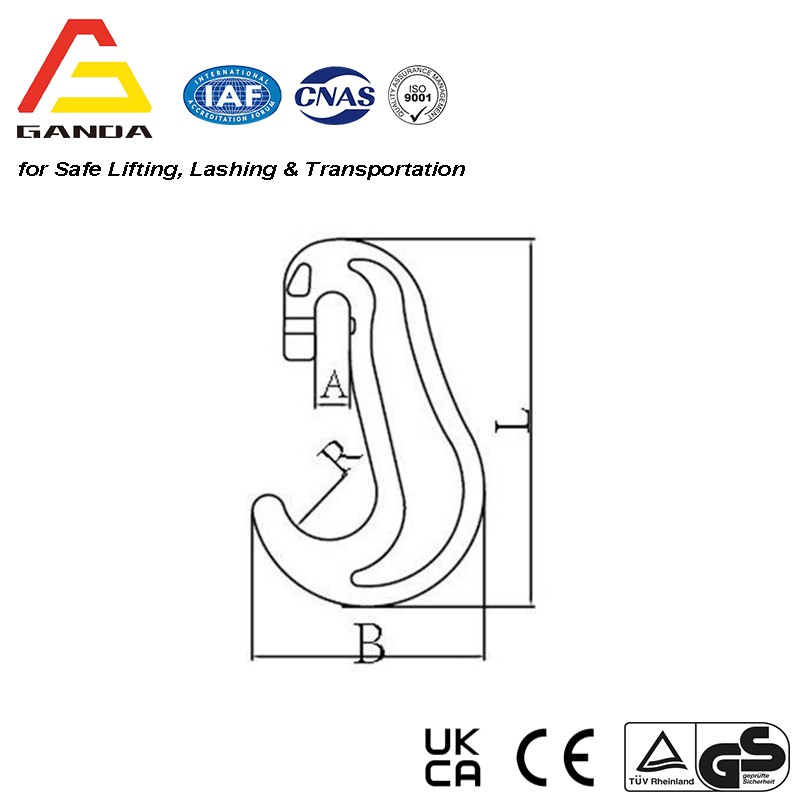

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | L±2 | A±0.3 | B±1.5 | R±1 |
8-GA071-9MM | 0.5 | 2.5 | 10 | 143 | 13.5 | 90.5 | 18.5 |
8-GA071-11MM | 0.85 | 3.75 | 15 | 177 | 15.5 | 109.5 | 22 |
8-GA071-13MM | 1.38 | 5.4 | 21.6 | 205 | 17.7 | 129 | 25.5 |
