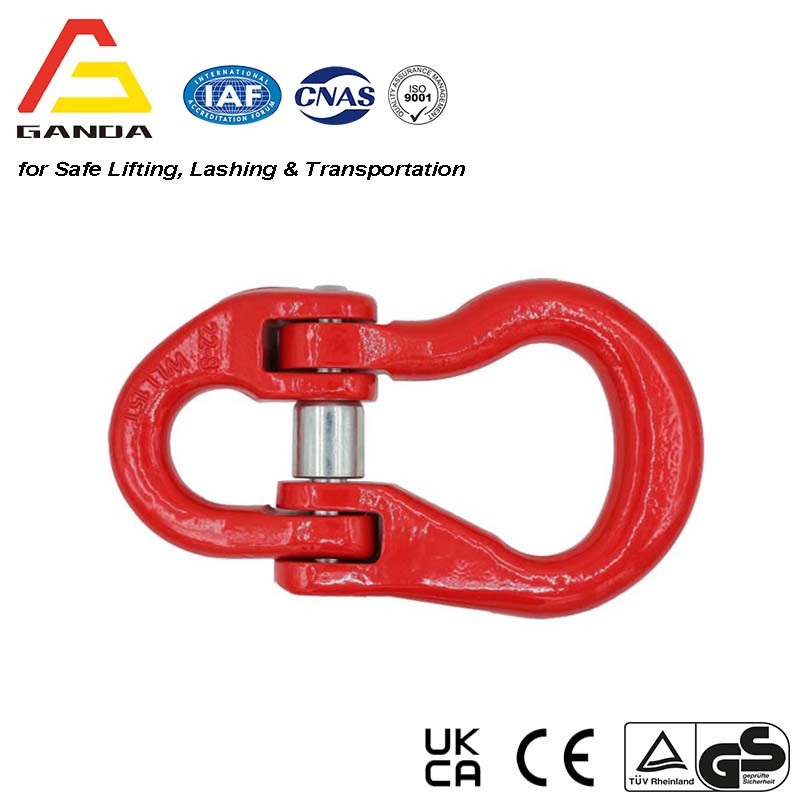

G80 Special Webbing Connector

G80 Special Webbing Connector
Size: 9mm to 25mm
SF: 4:1
Color: Red

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Technical Parameters

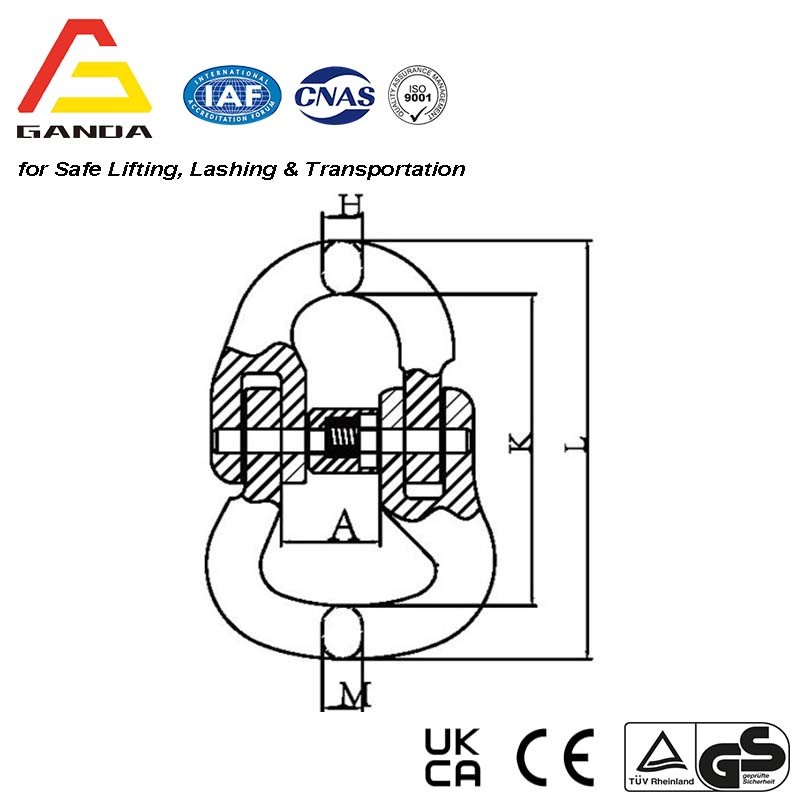

ITEM NO.	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	A±1	M±l	H±l	K±2.5	L±3
8-GA079-19	3.1	12.5	50	37	26	20	186.5	246
8-GA079-22	4.55	15	60	48	28	25	205.5	273
8-GA079-25	6.1	20	80	51.5	33	30	231	306
