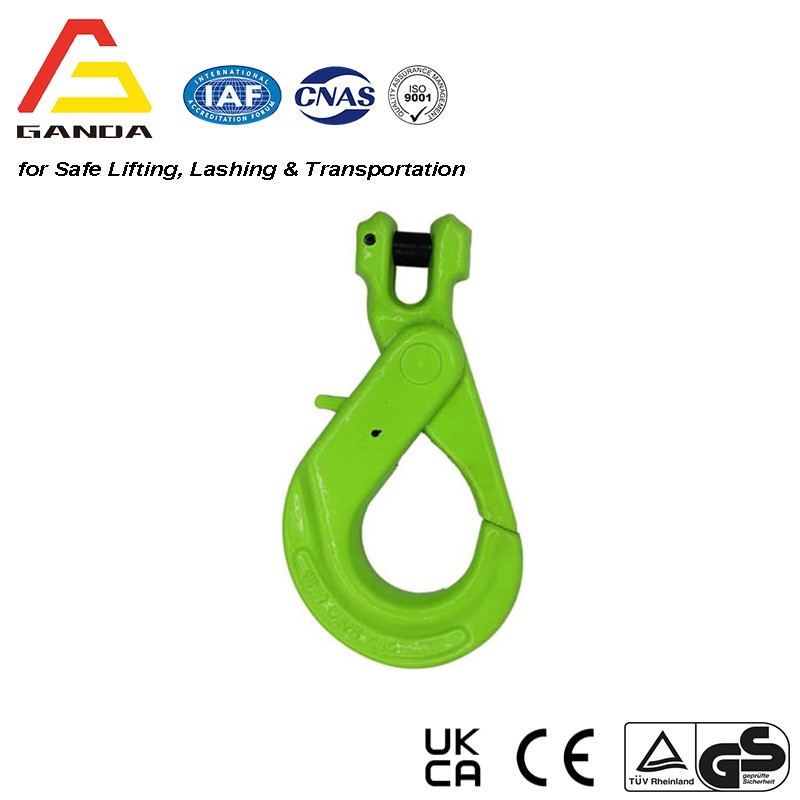

G80 Italian Type Clevis Self-Locking Hook
7/8mm a 16 mm
FS: 4:1
Cor:Green

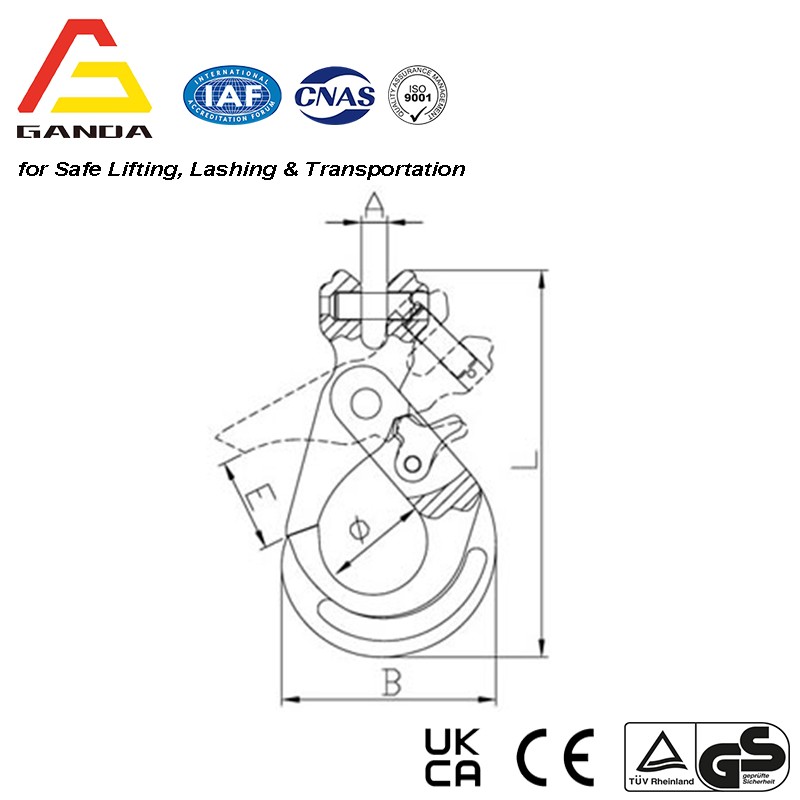

Technical Parameters
ITEM NO, | WEIGHT/kg | Woring Load Limit (T) | Breaking Load (T) | A ± 0,5 | B±2 | E±2 | φ±1,5 | L±3 |
8-GA248-7/8 | 0,54 | 2 | 8 | 9,5 | 74 | 30 | 37 | 132 |
8-GA248-10 | 1,14 | 3,15 | 12,6 | 12,5 | 92,5 | 53 | 45 | 174 |
8-GA248-16 | 3,45 | 8 | 32 | 18,5 | 135 | 70 | 73 | 259,3 |
