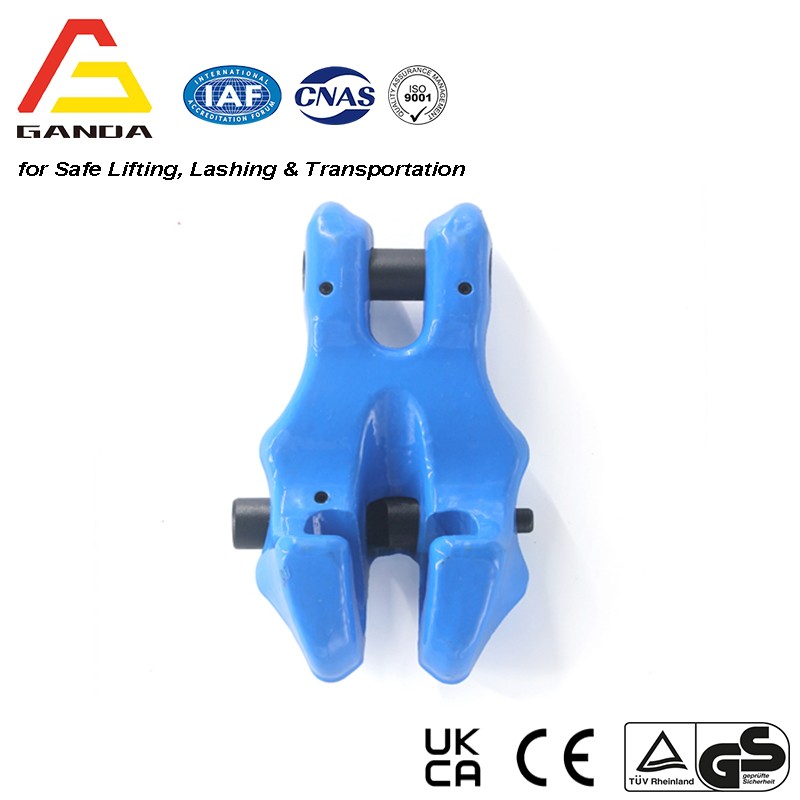

G80 Clevis Clutch
Tamanho: 8mm a 13mm
SF: 4:1
Color: Blue
Technical Parameters

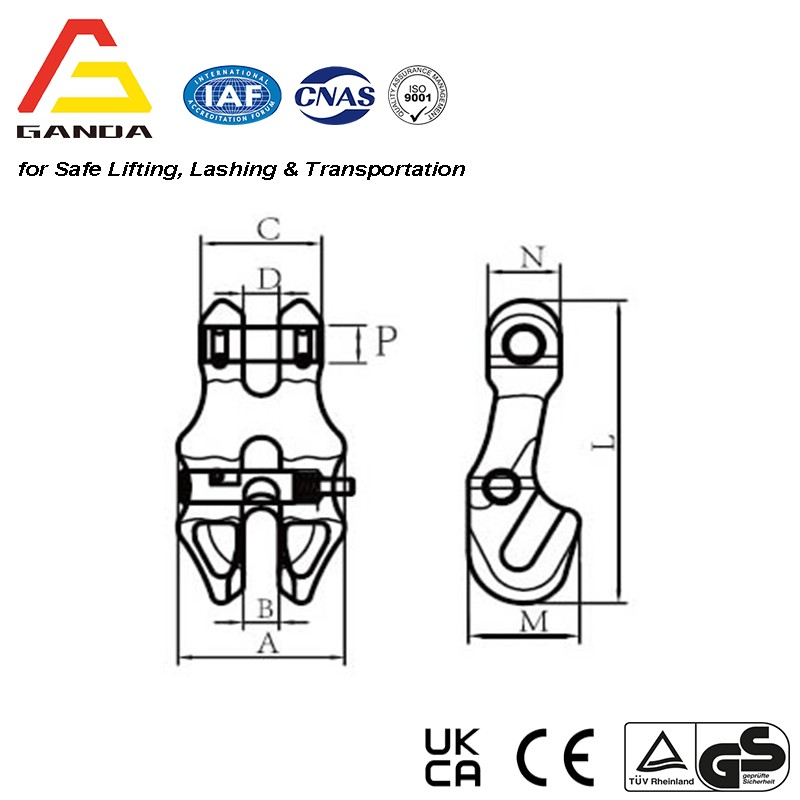

| ITEMNO | WEIGH/kg | Working Load Limit (T) | Breaking Load (T) | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.3 | N±0.5 | P±0.1 | L±1 |
| GA-638 8-8 | 0.41 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 33 | 23 | 9.2 | 92 |
| GA-638 10-8 | 0.75 | 3.15 | 12.6 | 60 | 12.5 | 43 | 12.5 | 40 | 26 | 13.3 | 115 |
| GA-638 13-8 | 1.67 | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 54 | 34 | 163 | 149 |
