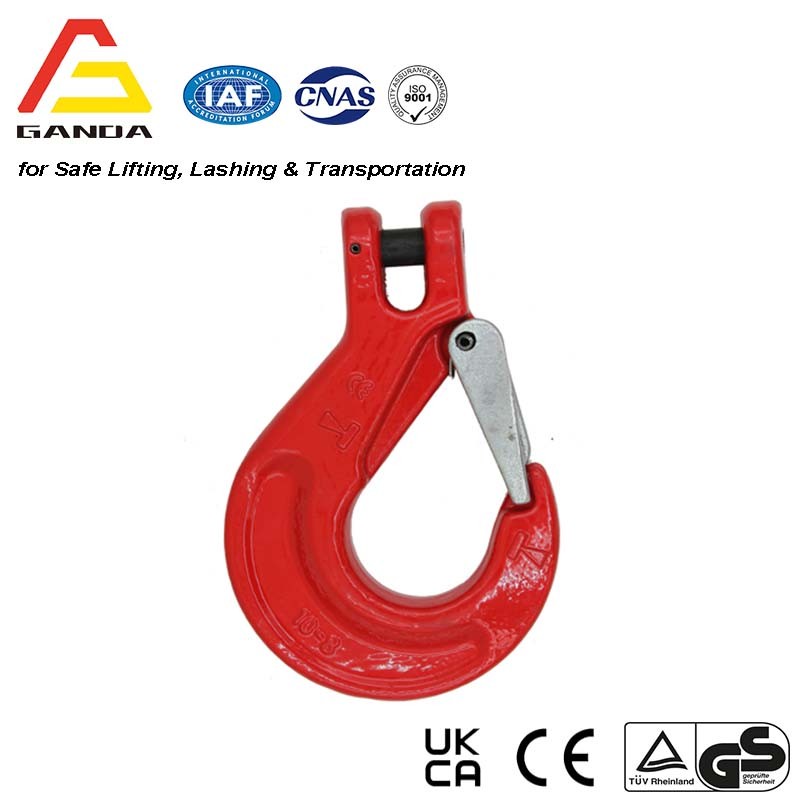

Clevis Sling Hook

G80 Clevis Sling Hook
Size: 6mm to 16mm
SF: 4:1
Color: Yellow, Red, Orange

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

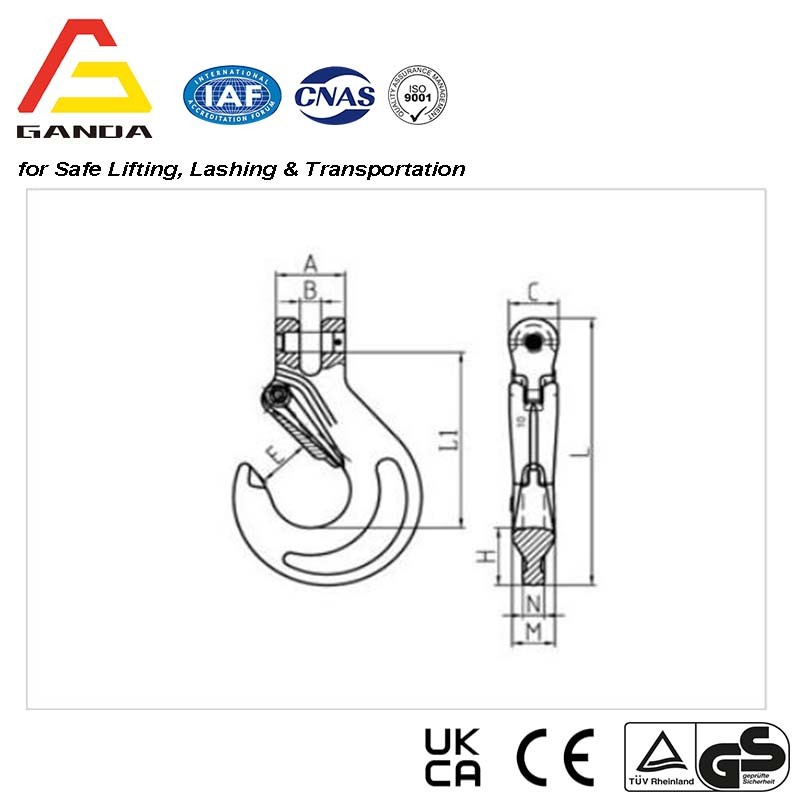

Technical Parameters

ITEM NO,	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	A±1	B±1	C±1	E±1	Ll±2	L±2	M±0,5	N±0,5	H±1
6-8	0.28	1.12	4.48	28	7.5	18.5	19	72.7	107	15	8,4	20,8
8-8	0.65	2	8	35	9	23.5	26	93.7	140,5	19	9,2	29,4
10-8	1.3	3.2	12.8	42	11.5	30	30	113	168	25	12,6	34
13-8	2.32	5.3	21.2	52.5	14.5	39	38	133	205	32.2	16	43,8
16-8	3.9	8	32	65	18	44	45	148	234	38,5	21,5	52
