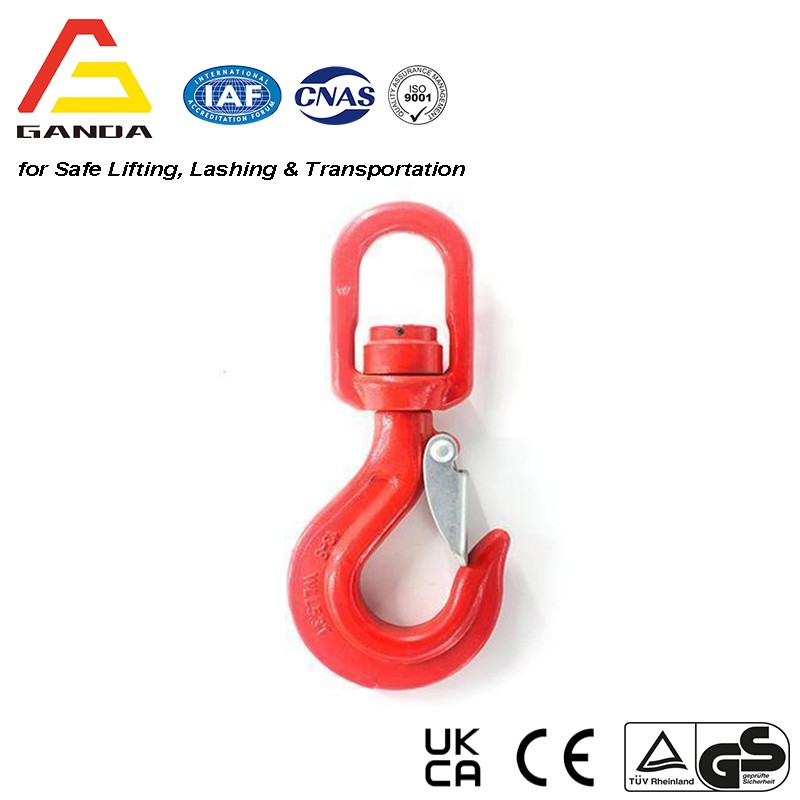

Ball Bearing Swivel Latch Hook
FS: 4:1
7/8 a 16 mm
Cor: Red

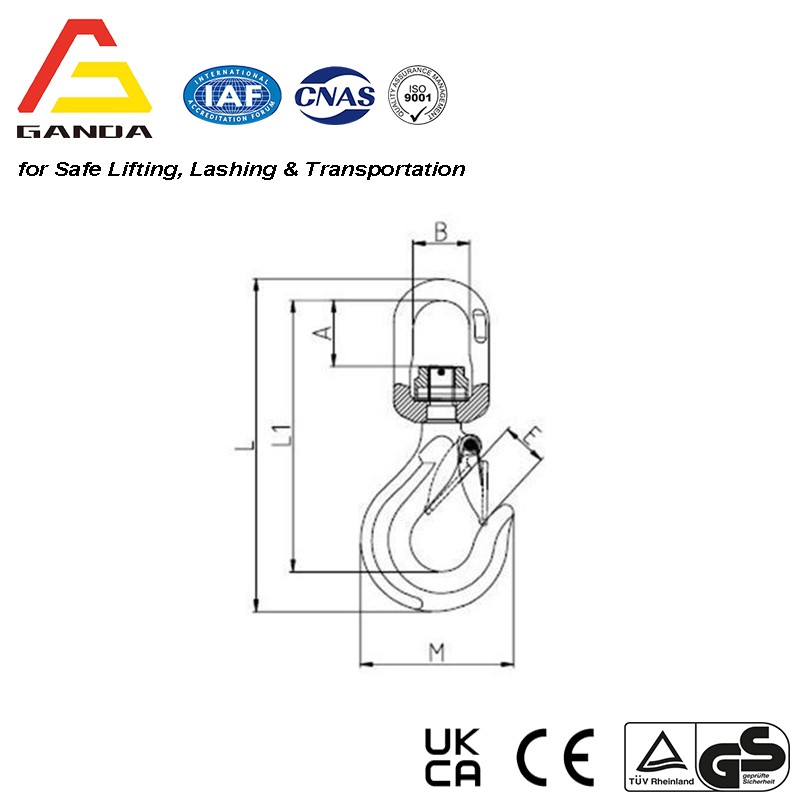

Parameters (Unit: mm)
Weight /kg | Weight/kg | WLL/T | B.L/T | A±2 | B±1 | E±1 | M±0.5 | L1±2 | L±3 |
7/8-8 | 0.95 | 2.0 | 8.0 | 42 | 36 | 28.5 | 88 | 170 | 208 |
10-8 | 1.71 | 3.15 | 12.6 | 50 | 42 | 31 | 105 | 204.8 | 251.7 |
13-8 | 2.97 | 5.3 | 21.2 | 58 | 50 | 40 | 135 | 242 | 296 |
16-8 | 5.3 | 8.0 | 32.0 | 63.5 | 61 | 45 | 161 | 291.8 | 360.8 |
