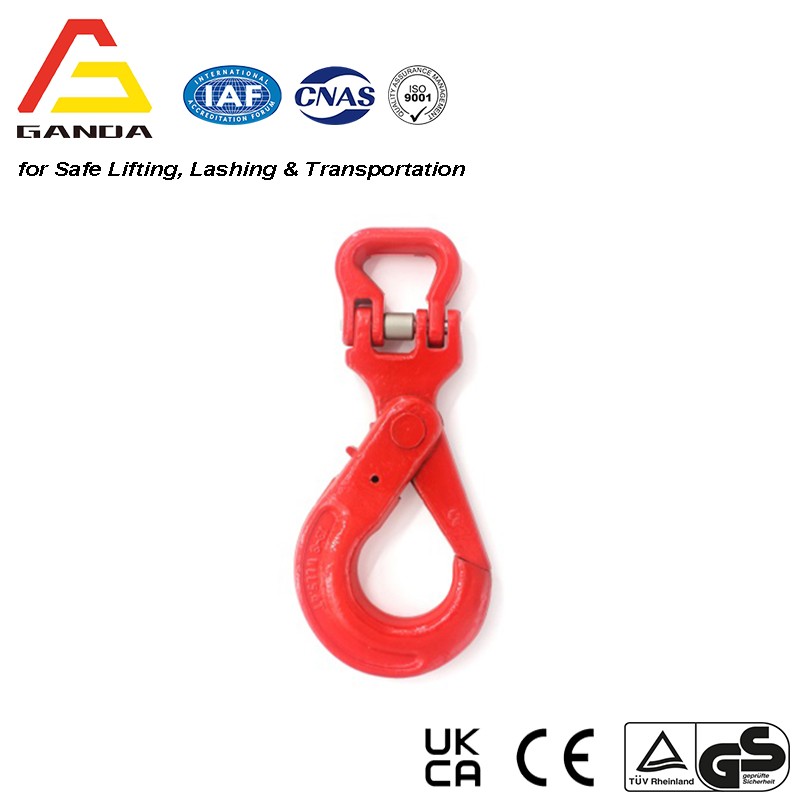

Alloy Steel Self Locking Sling Hook
10mm a 13mm
FS: 4:1
Cor: Vermelho,
Ultimate load is 4 times the Working Load Limit.
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

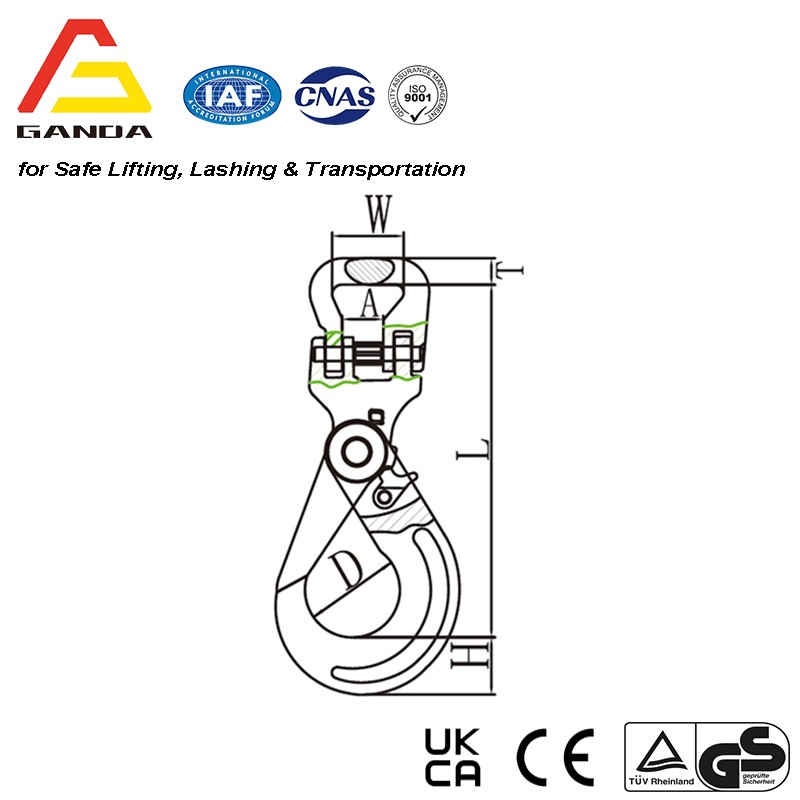

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1.5 | H±1 | W±1.5 | T±1 | D±1.5 | L±3 |
8-GA110-10 | 1.8 | 3.15 | 12.6 | 26.8 | 28.5 | 47 | 16 | 56 | 200.5 |
8-GA110-13 | 3.52 | 5.3 | 21.2 | 30 | 40 | 52 | 19 | 69 | 256 |
