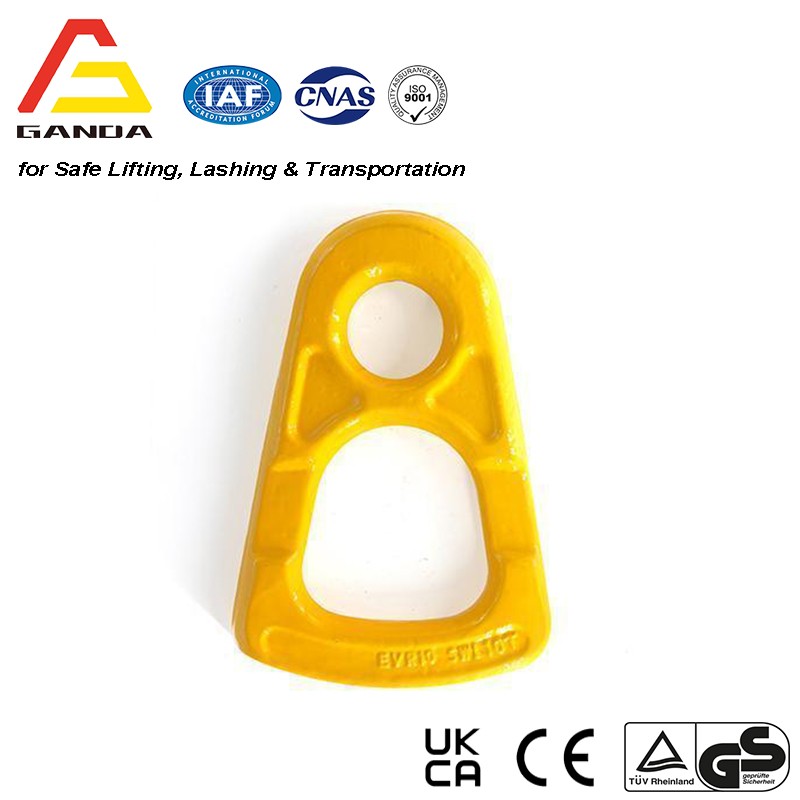

Alloy Steel Lift Ring
SF: 5:1
Color: Yellow
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020 / yellow RAL 1003.

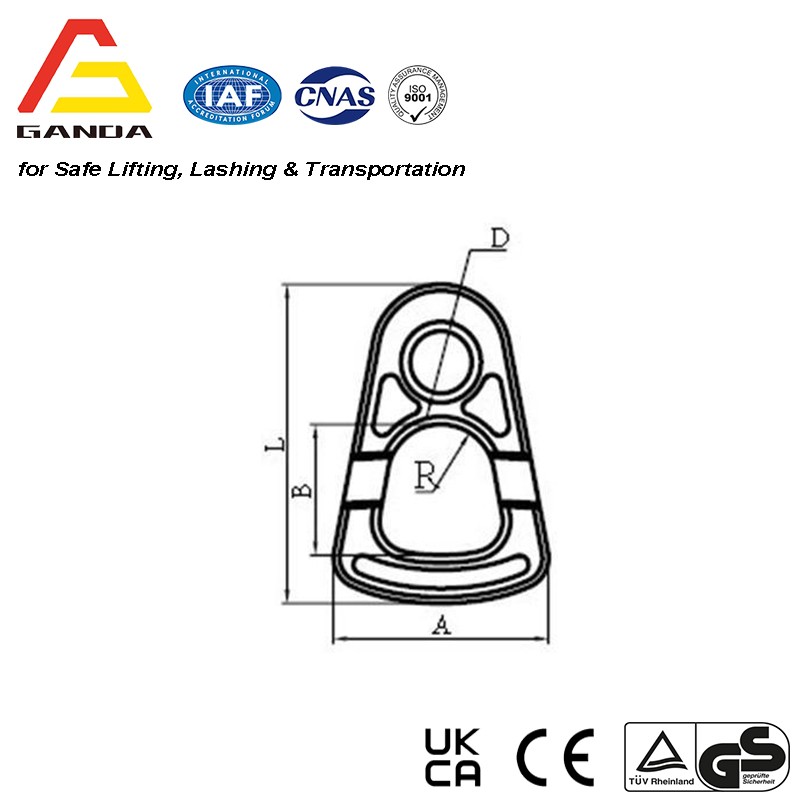

Parameters (Unit: mm)
Item Code | Weight (kg) | Working Load Limit/t | Breaking Load/t | A±0.5 | B±0.5 | R | D | L±1 |
8-GA260-8T | 1.47 | 8 | 40 | 97.5 | 68 | 23.5 | 38 | 176 |
8-GA260-10T | 2.59 | 10 | 50 | 140 | 84 | 35 | 40 | 205 |
Ultimate load is 5 times the Working Load Limit.
