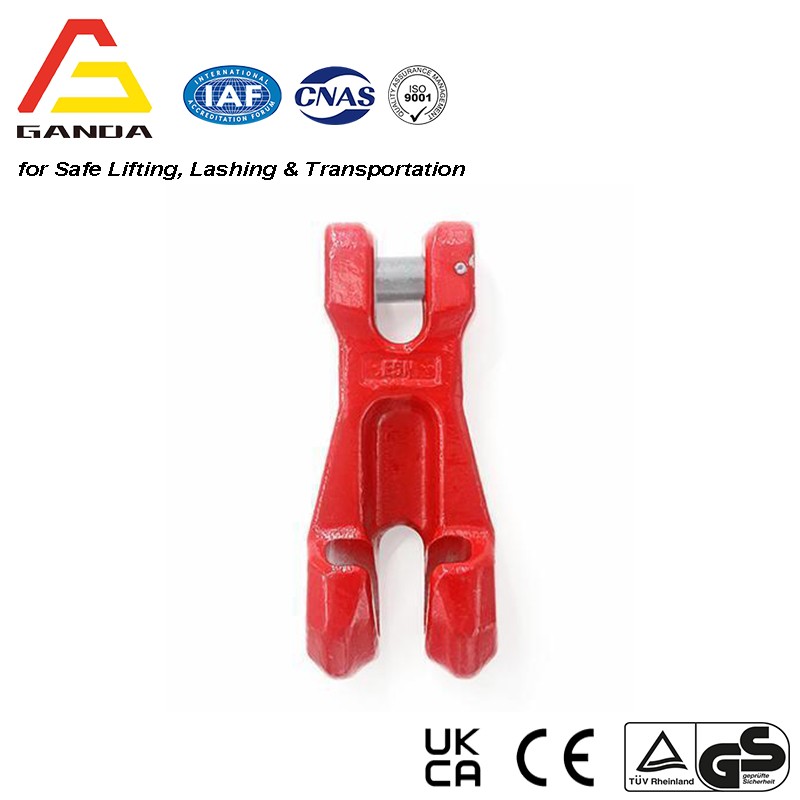

Alloy Steel Clevis Shortening Clutch

Alloy Steel Clevis Shortening Clutch
7/8 mm a 22 mm
FS: 4:1
Color: Red

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified. Surface treatment:
● Color code: red RAL3020/yellow RAL1003.

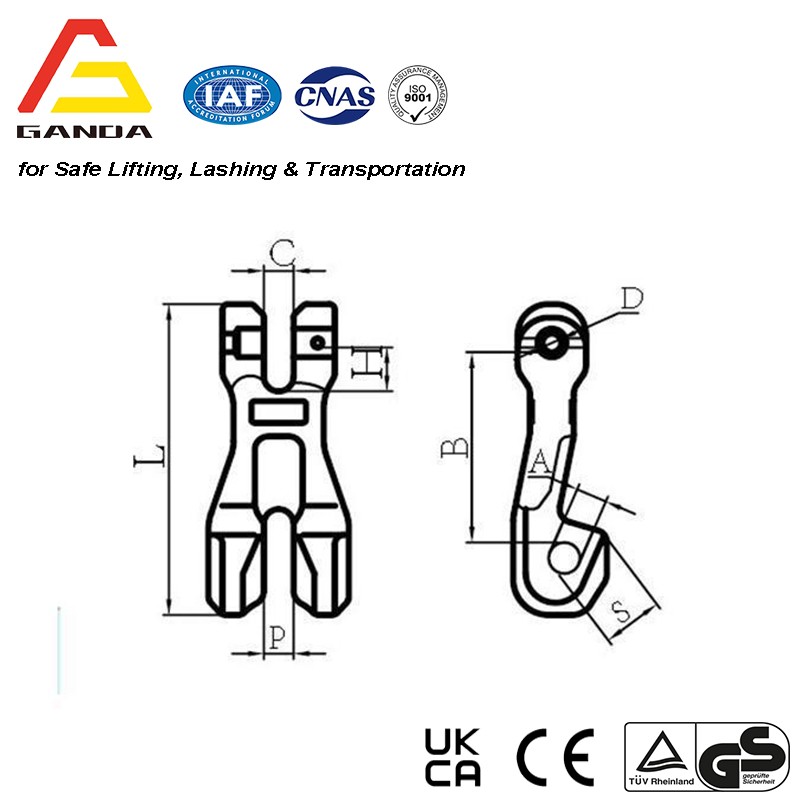

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	P±0.5	C±0.5	A±0.3	B±2	H±1	S±0.3	L±2	D±0.5
8-GA073-06	0.17	1.12	4.48	7.5	7.5	8	44	10.3	12	73.5	7.8
8-GA073-7/8	0.37	2	8	9.5	9.5	10.5	61.7	14	17	101	9.2
8-GA073-10	0.97	3.15	12.6	13	13	12.4	92	18.4	28	138	13.2
8-GA073-13	2.01	5.3	21.2	16.5	16.5	16	115	22.7	34.5	177	16.2
8-GA073-16	3.32	8	32	21	21	19.5	143	28.5	40	220	20
8-GA073-20	6.2	12.5	50	23.5	23.5	23	152	33.6	46	238	24.3
8-GA073-22	8.5	15	60	25.5	25.5	26	195	39	57.5	295	28.1
