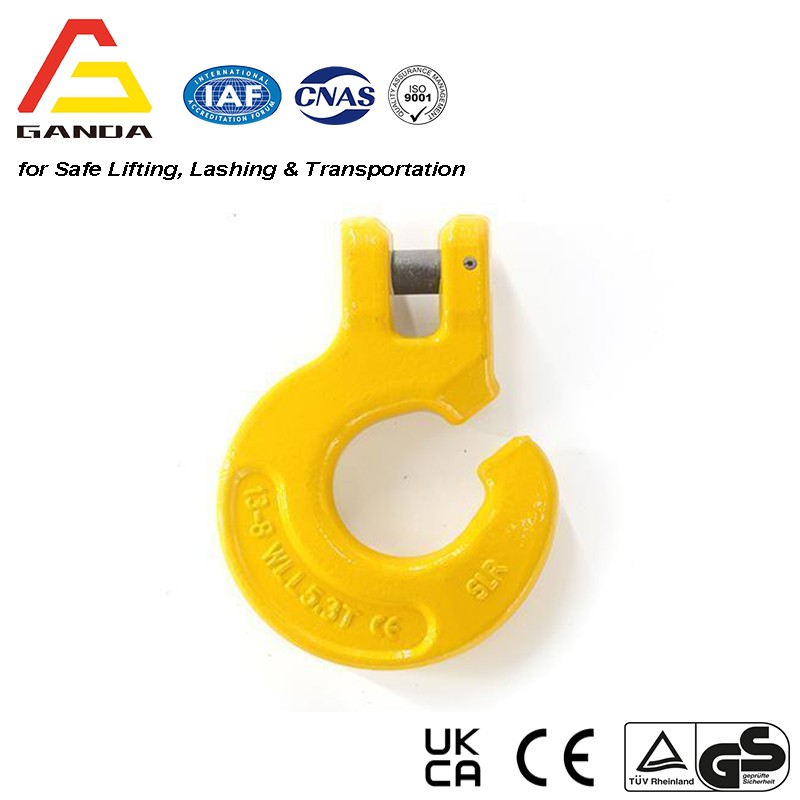

Alloy Steel Clevis Hook

Alloy Steel Clevis Hook
Size: 6mm to 13mm
SF: 4:1
Color: Yellow

Features
● It can not be used for lifting. It can only be used for forest logging.
● Ultimate load is 4 times the Working Load Limit.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

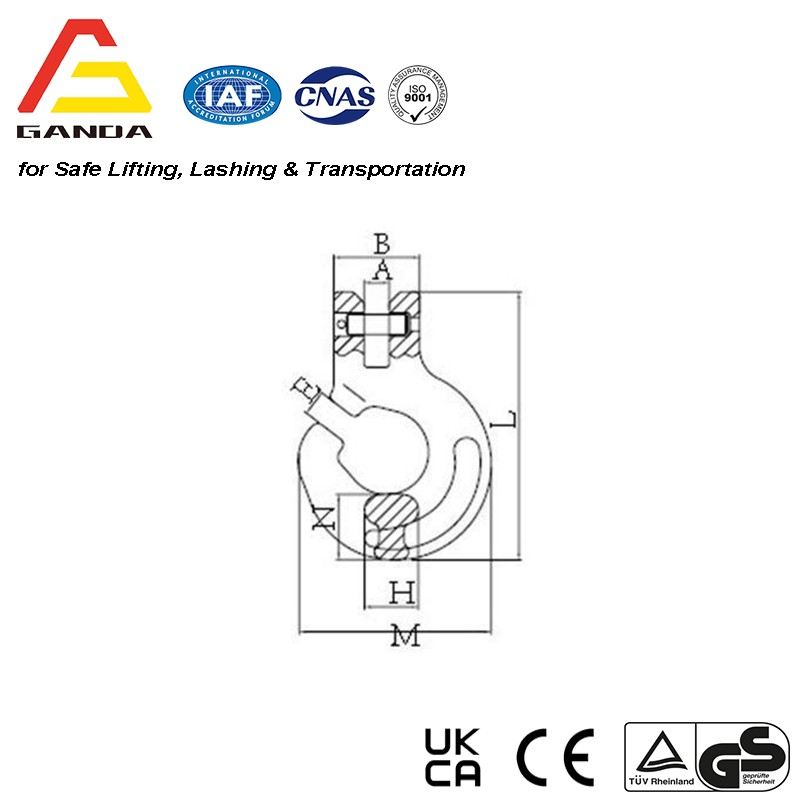

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	B±1.2	A±0.5	E±0.5	H±1	M±2	N±0.5	L±2
8-GA102-6	0.413	1.12	4.48	31	8.5	8.5	18	66.5	24.5	83
8-GA102-7/8	0.413	2	8	35	9.5	10.5	18	72.7	22.2	95.5
8-GA102-10	0.92	3.15	12.6	44	13	13	22	97	33.5	137
8-GA102-13	1.75	5.3	21.2	53	15	16	30	119	40	165
