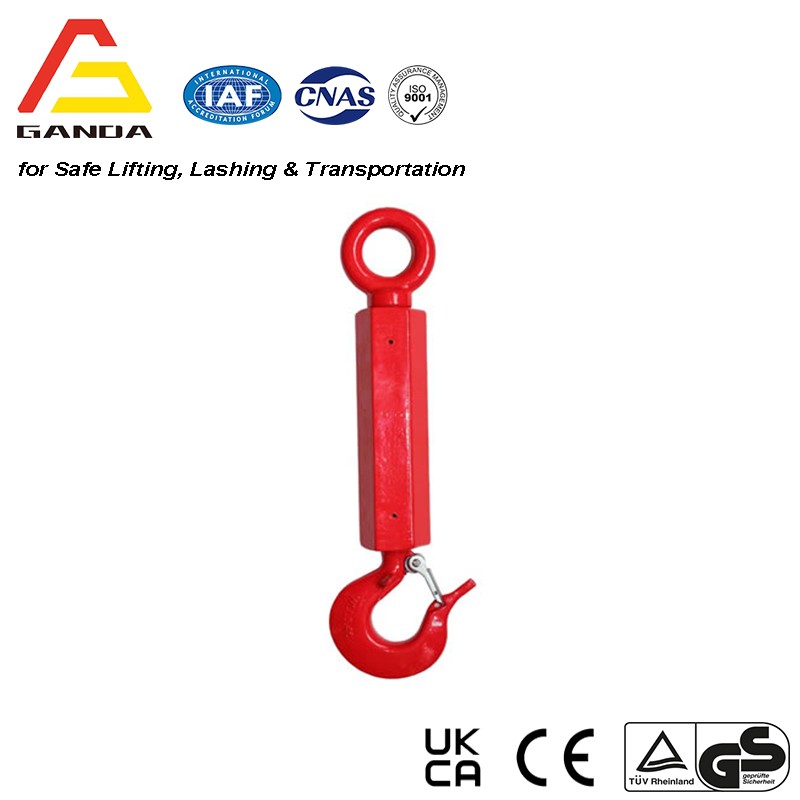

Alloy Shank Hook with Eye Screw ROV
SF: 4:1
Color: Red
Technical Parameters

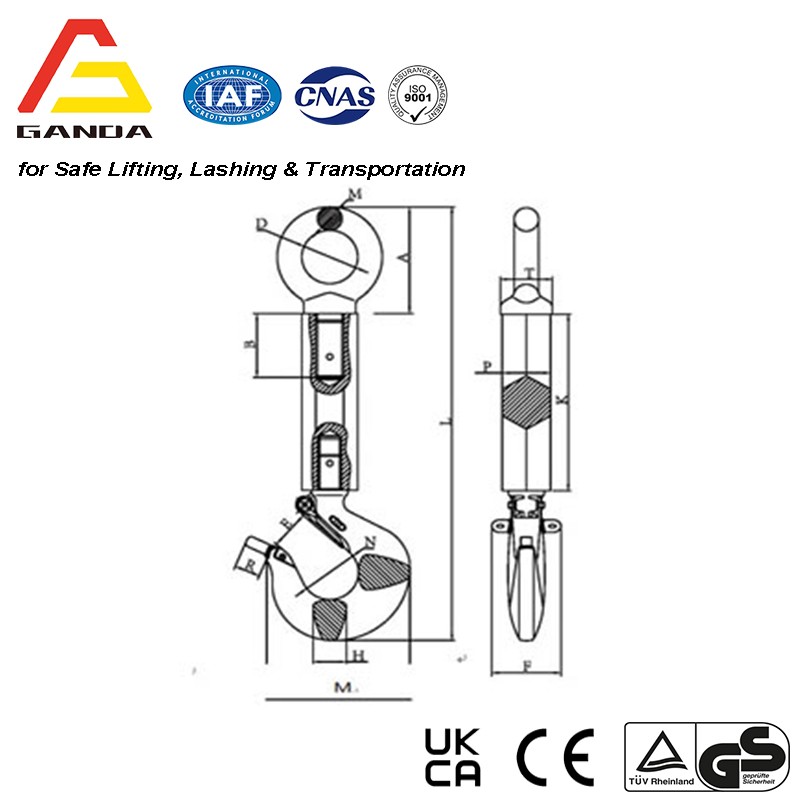

ITEMNO | WEIGH/kg | Working Load Limit (T) | Breaking Load (T) | A | B±3 | E±1.5 | F±0.5 | H | M±3 | K±0.5 | P±1 | T±1 | M±0.5 | D | R | N±2 | L±5 |
GA-552-5.4T | 9.6 | 5.4 | 21.6 | 108 | 55 | 34.2 | 68 | 29.5 | 128 | 275.5 | 65 | 46 | 23 | 51 | 25 | 50 | 497 |
GA-552-12T | 17.3 | 12 | 60 | 150 | 90 | 54 | 95 | 45 | 192 | 275.5 | 65 | 70 | 33 | 75 | 35 | 77 | 611 |
GA-552-22T | 29.8 | 22 | 88 | 180 | 87 | 75 | 138 | 60 | 265 | 283 | 85 | 102 | 41 | 91 | 50 | 106 | 720 |
GA-552-31.5T | 44 | 31.5 | 126 | 191 | 87 | 88 | 150 | 78 | 350 | 283 | 85 | 115 | 48 | 110 | × | 128 | 820 |
