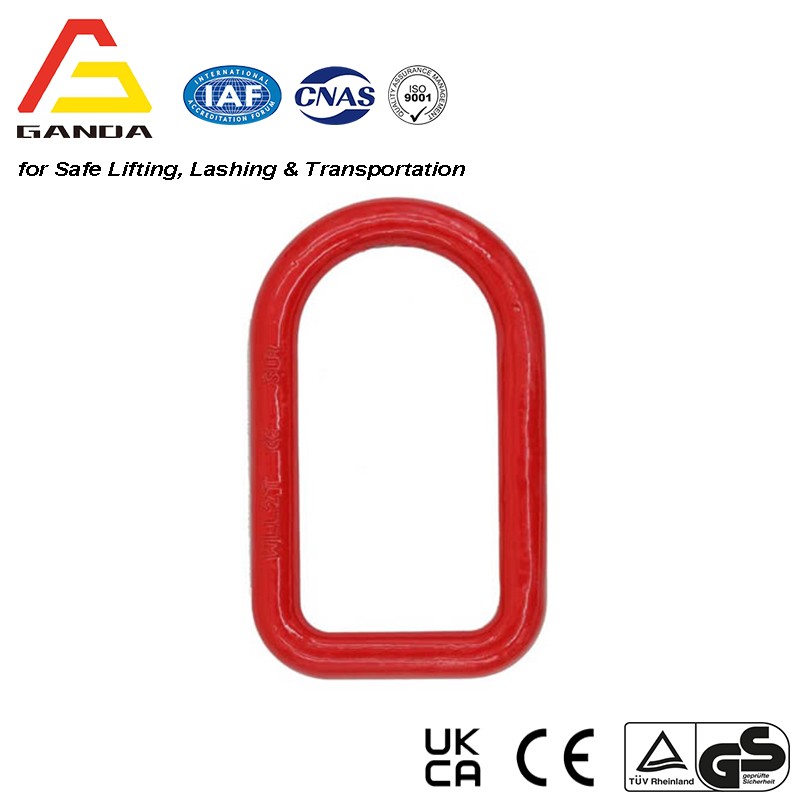

Alloy D Ring for Web Sling

Alloy D Ring for Web Sling
SF: 4:1
Color: Red

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

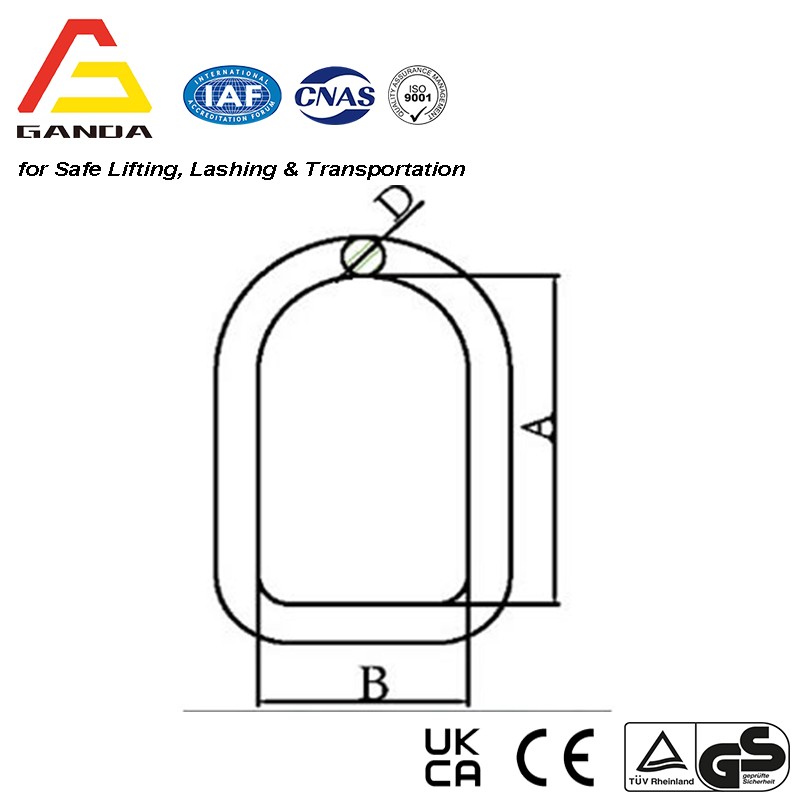

Technical Parameters

ITEMNOWEIGHT/kgWorking Load Limit (T)Breaking Load (T)A ±2B ±1.5D ±1
GA-136-1T0.37l41106513
GA-136-2T0.64281306516
GA-136-3T0.9931214011018
GA-136-4T1.5641613513022
