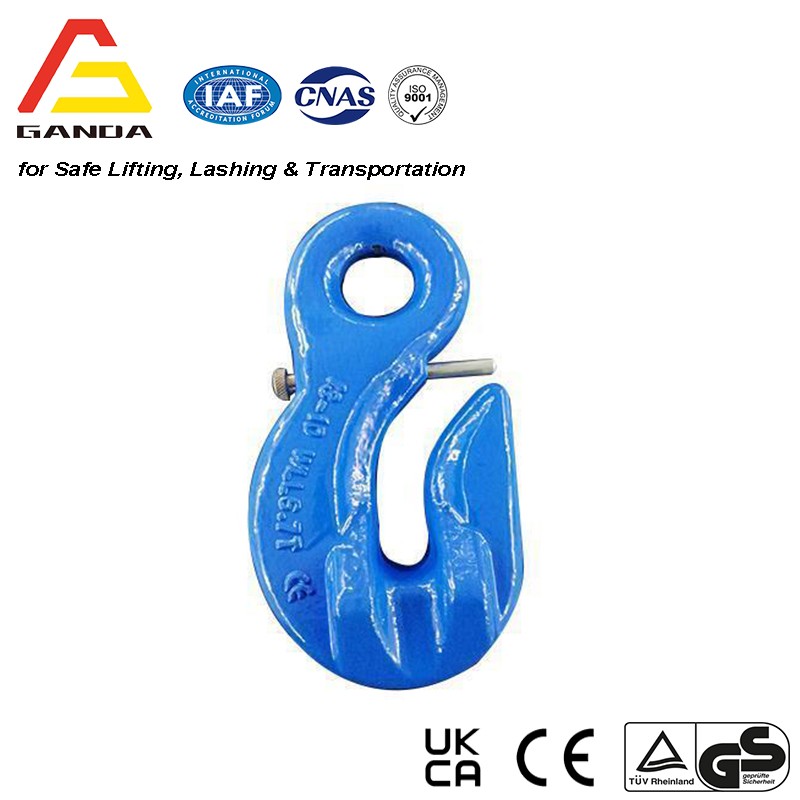

G100 SPECIAL EYE GRAB HOOK WITH SAFETY PIN

G100 SPECIAL EYE GRAB HOOK WITH SAFETY PIN
Tamanho: 8mm a 13mm
FS: 4:1 para Corrente
FS: 5:1 para Cabo de Aço
Cor: Azul

The locking pin grab hook has the following features
● It can adjust the length of chains;
● It has a safety pin so that it is safer;
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: power plastified

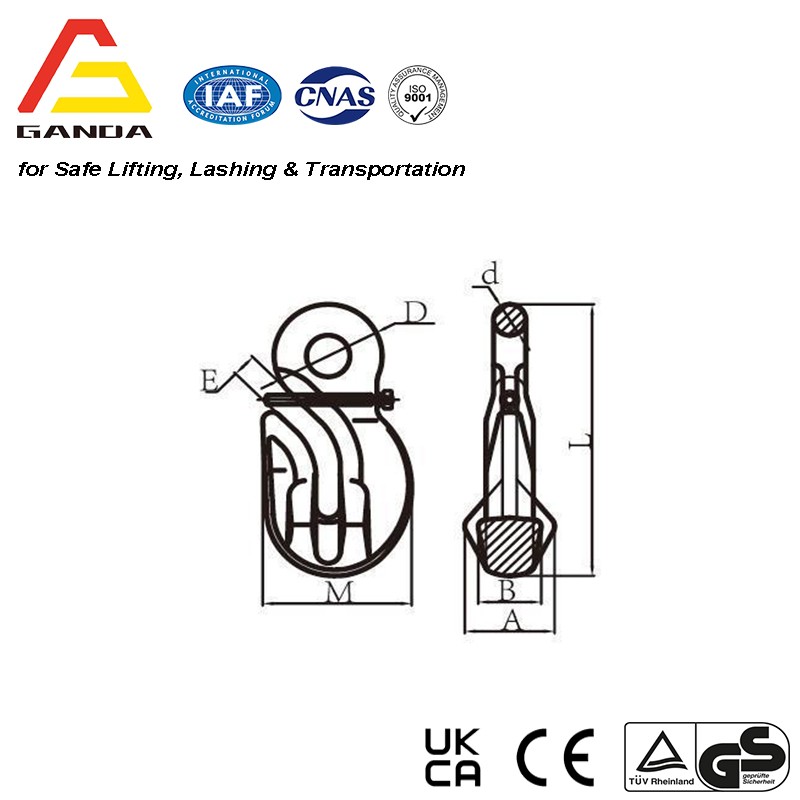

Parameters (Unit: mm)

Item Code	Weight (kg)	Working load limit (t)	Breaking load (t)	A±1	B±0.8	d±0.5	D±0.5	E±0.5	L±2
10-GA1023-8	0.5	2.5	10	35	25	12	16.5	10.5	110
10-GA1023-10	1.0	4	16	64	32	15	21	14	136.5
10-GA1023-13	2.2	6.7	26.8	57	40	20.5	27.5	15.5	180
