Ratchet Chain Load Binder

Ratchet Chain Load Binder
Tamanho: 8mm a 13mm
FS: 4:1 para Corrente
FS: 5:1 para Cabo de Aço
Cor: Azul

Features
● It meets the standard of EN12195-3.
● The handle is forged.
● It can be matched with G100 chains.
● It is a G100 eye grab hook with stop pin to ensure safety and prevent falling off.
● It can only be used for lashing but not lifting.
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.

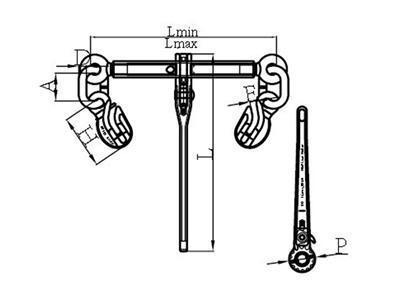

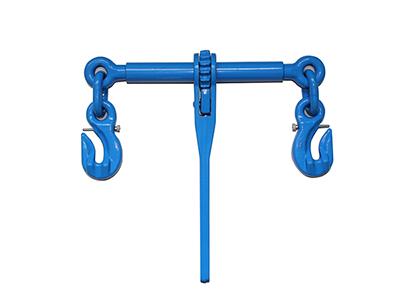

GA1030 - G100 RACHET CHAIN LOAD BINDER

(NEW G100 GRAB HOOK WITH WELD ON RING AND SAFETY PIN)

Item code	Weight (kg)	LC/KN	BF/KN	A±4	D±1.5	H±2	E±2	L±3	P±1	Lmin±4	Lmax±4
10-GA1030-8	3.71	50	100	50	12	98	10.5	383	56	340	500
10-GA1030-10	5.85	80	160	50	14	121.5	13	390	65	365	525
10-GA1030-13	9.34	134	268	72	20	159.5	15.5	392.5	69	365	525

Ultimate load is 2 times the Working Load Limit.

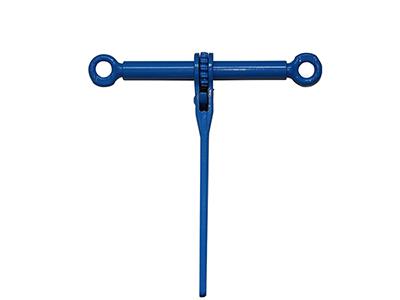

GA1031-G100 RACHET CHAIN LOAD BINDER WITHOUT WELD ON LINKS AND GRAB HOOKS

Item code	Weight (kg)	LC/KN	BF/KN
10-GA1031-8	2.6	50	100
10-GA1031-10	4.3	80	160
10-GA1031-13	5.0	134	268

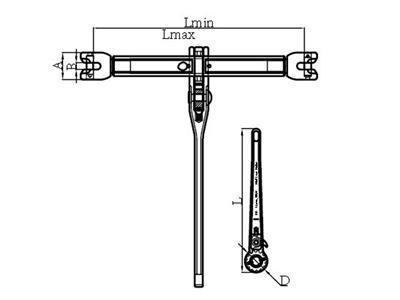

GA1032-G100 CLEVIS TYPE RACHET CHAIN LOAD BINDER

Item code	Weight (kg)	LC/KN	BF/KN	A±1	B±1.5	L±3	D±1	Lmin±4	Lmax±4
10-GA1032-8	3.5	50	100	40	10	383	56	312	472
10-GA1032-10	5.5	80	160	49	13	390	65	337	497
10-GA1032-13	7.1	134	268	64	16	392.5	69	347	507
