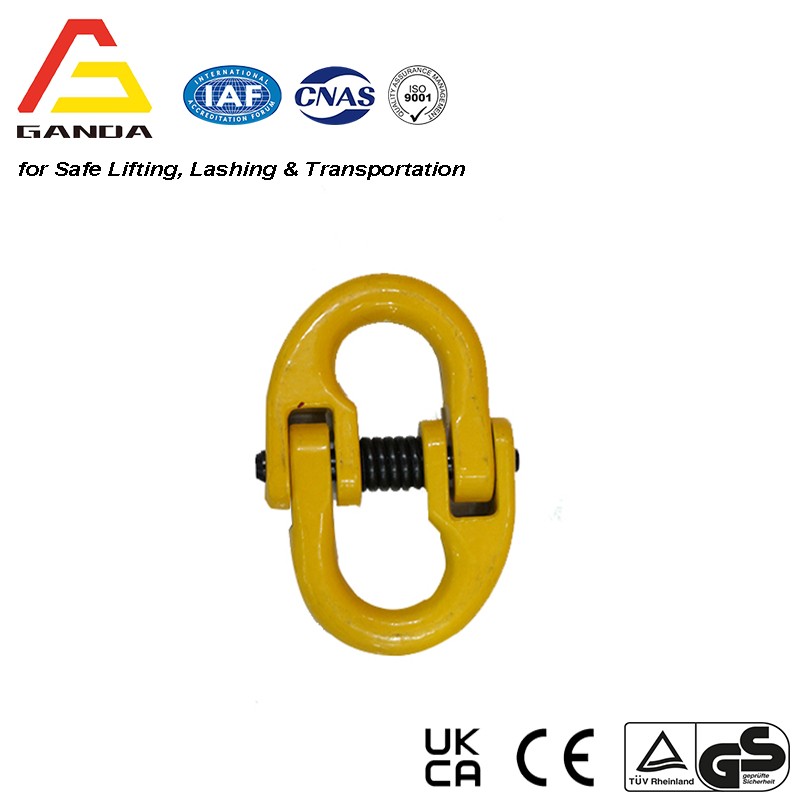

G80 U.S. Type Connecting Link

G80 U.S. Type Connecting Link
FS: 4:1
Cor: Vermelho, Amarelo, Laranja

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Technical Parameters

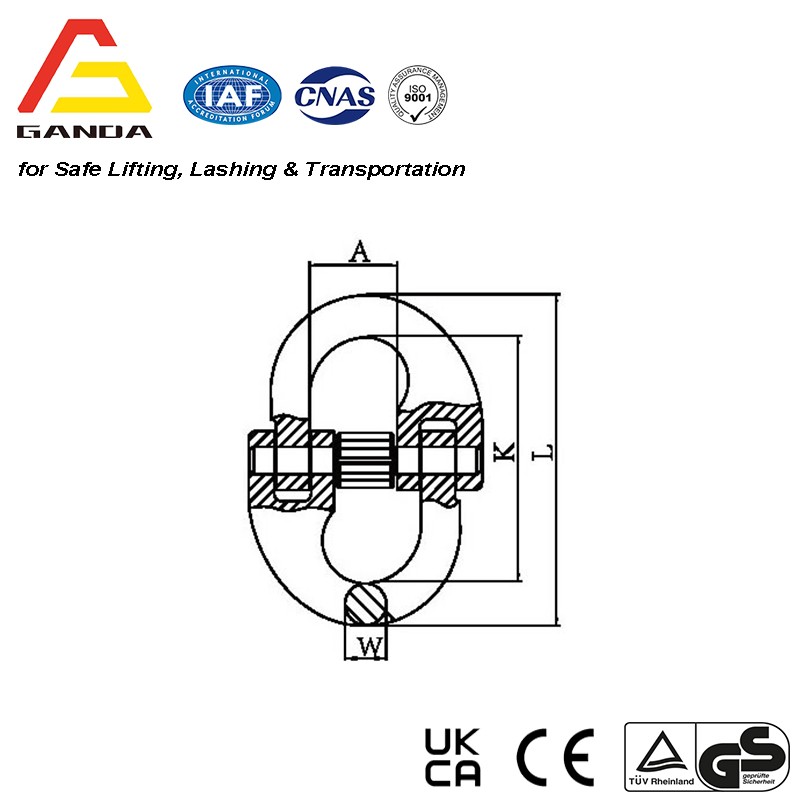

ITEM NO.	WEIGHT/lbs	WORKING LOAD LIMIT/1bs	BREAKING LOAD/1bs	A±1.5	L±2.5	K±2	W±l	H±1	C ±0.2	D±0.3
8-GA076-1/4	0.286	3500	14000	16.5	67	51	8	13	4	4
8-GA076-5/16	0.32	4500	18000	17	78.5	58.5	10	14.5	6	6.6
8-GA076-3/8	0.73	7100	28400	22	87.6	63.6	12	17	6.2	8.1
8-GA076-1/2	1.67	12000	48000	28.5	115.5	85.5	15	21.6	7.8	7.8
8-GA076-5/8	2.86	18100	72400	33	143	106	18.5	26	9.5	10
8-GA076-3/4	5	28300	113200	41	162	116	23	32	12	13
8-GA076-7/8	7.5	34200	136800	50.5	188.5	136.5	26	38	13	15.5
8-GA076-1	11.03	47700	190800	57	214.5	152.5	31	44	15	16.5
8-GA076-1-1/4	20.38	72300	289200	65	265	188.7	38	54	20	20
