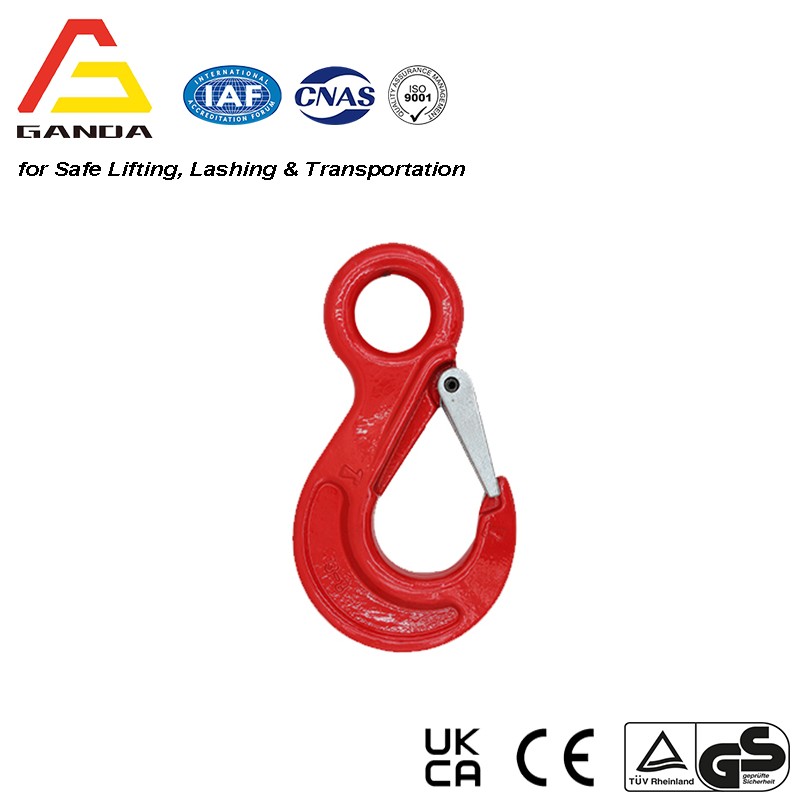

G80 Eye Sling Hook with Cast Latch

G80 Eye Sling Hook with Cast Latch
Tamanho: 6mm a 16mm
FS: 4:1
Cor: Vermelho, Amarelo, Laranja

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

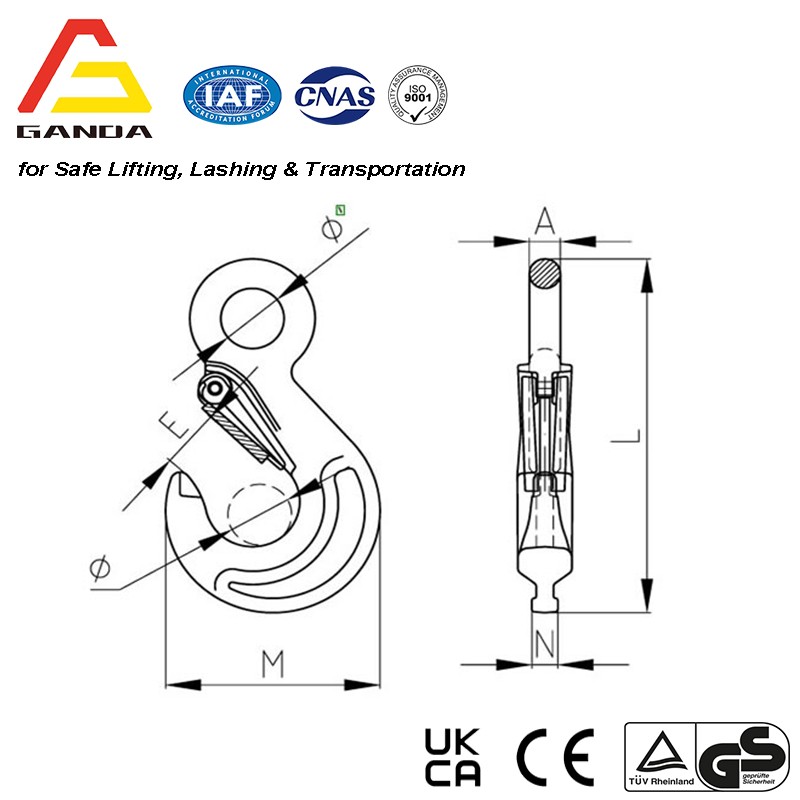

Technical Parameters

ITEM NO.	WEIGHT/KG	Working Load Limit (t)	Breaking Load (t)	A±1	E±l,5	M±2	N±1	L±3	φ±2	φ'±2
6-8	0.3	1.12	4.48	10	18	67	8,5	120	18	20
8-8	0.59	2	8	11	25	91	9.2	153	26	25
10-8	1.23	3.15	12.6	16	30	112	13	188	30	34
13-8	2.29	5.3	21.2	19.5	39	131	16.5	233	37	43
16-8	4.7	8	32	24.5	48	169.5	20.6	294	48	50
