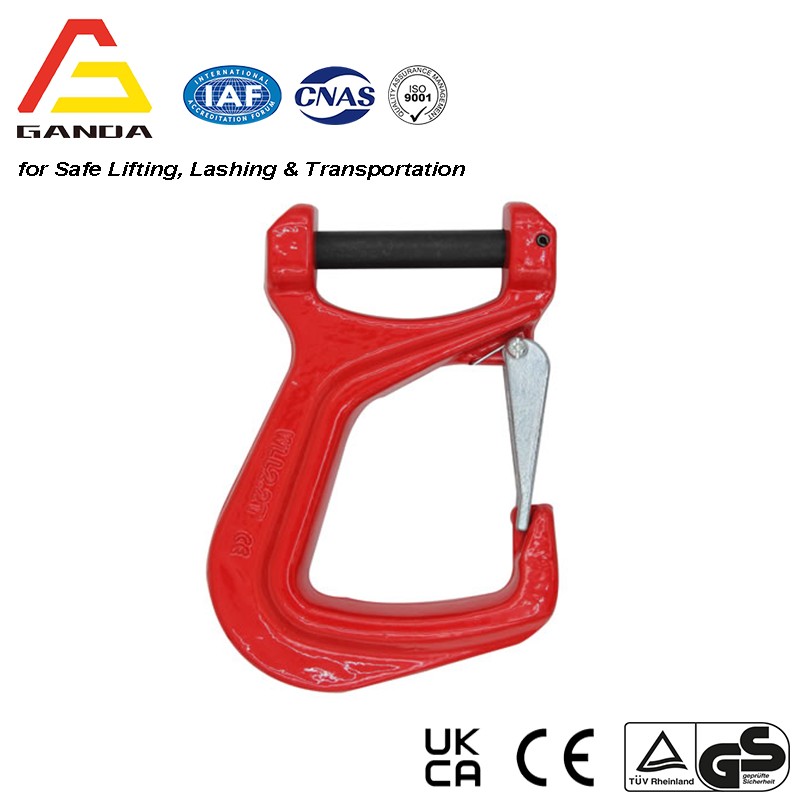

  • G80 Clevis Webbing Sling Hook
  • G80 Clevis Webbing Sling Hook
G80 Clevis Webbing Sling HookG80 Clevis Webbing Sling Hook

G80 Clevis Webbing Sling Hook

G80 Clevis Webbing Sling Hook
FS: 4:1
Cor: Vermelho

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

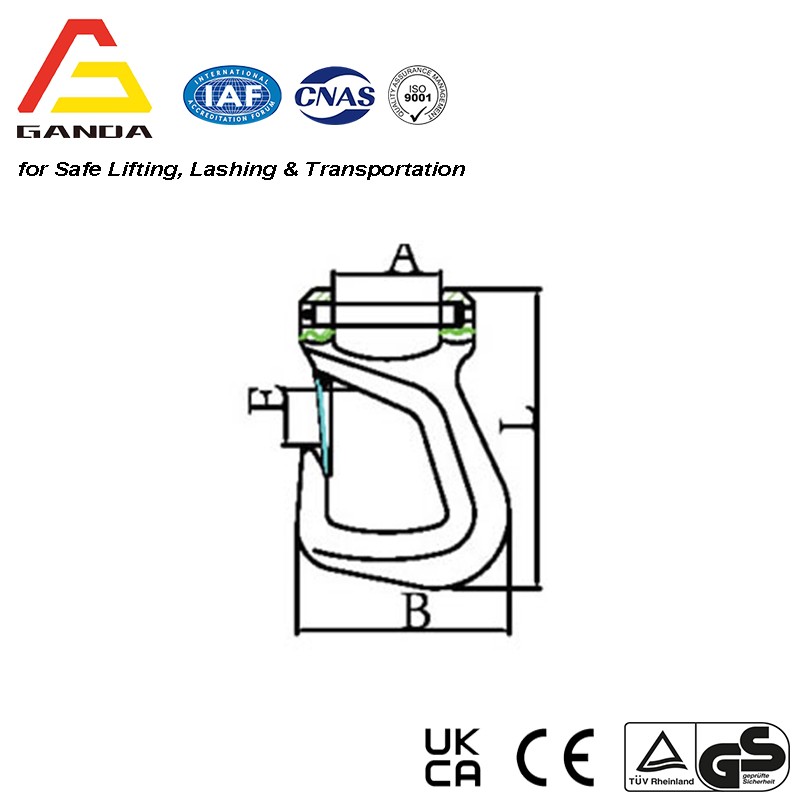

Parameters (Unit: mm)

ITEMNO.WEIGHT(kg)Working Load Limit (t)Breaking Load (t)A± 1B± 2E±1L±2

8-GA016-2.2T1.472.28.86112047167
