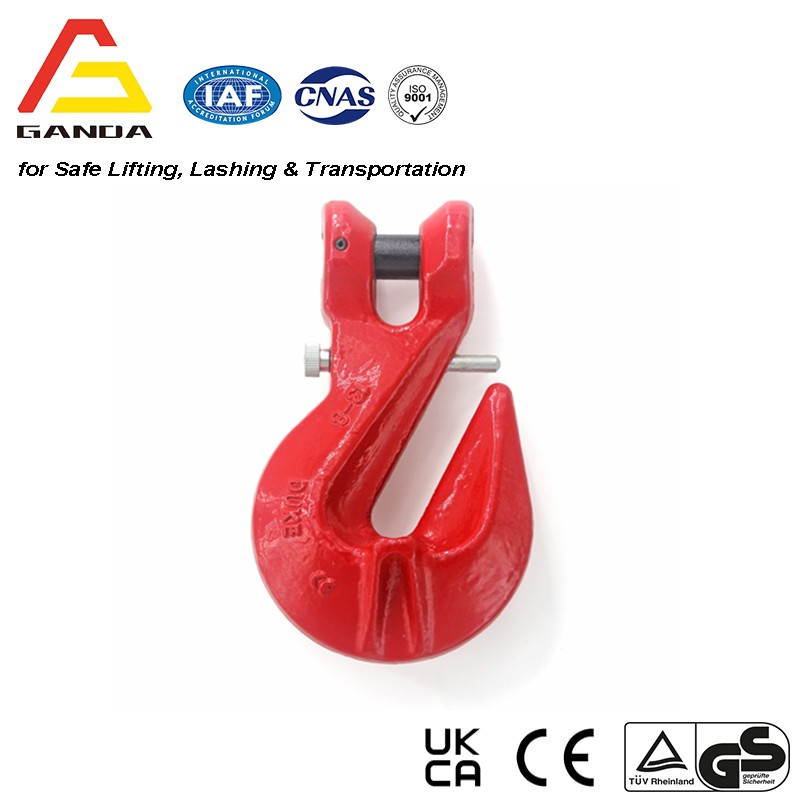

G80 Clevis Grab Hook

G80 Clevis Grab Hook
Tamanho: 6mm a 16mm
FS: 4:1
Cor: Vermelho, Amarelo, Laranja

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

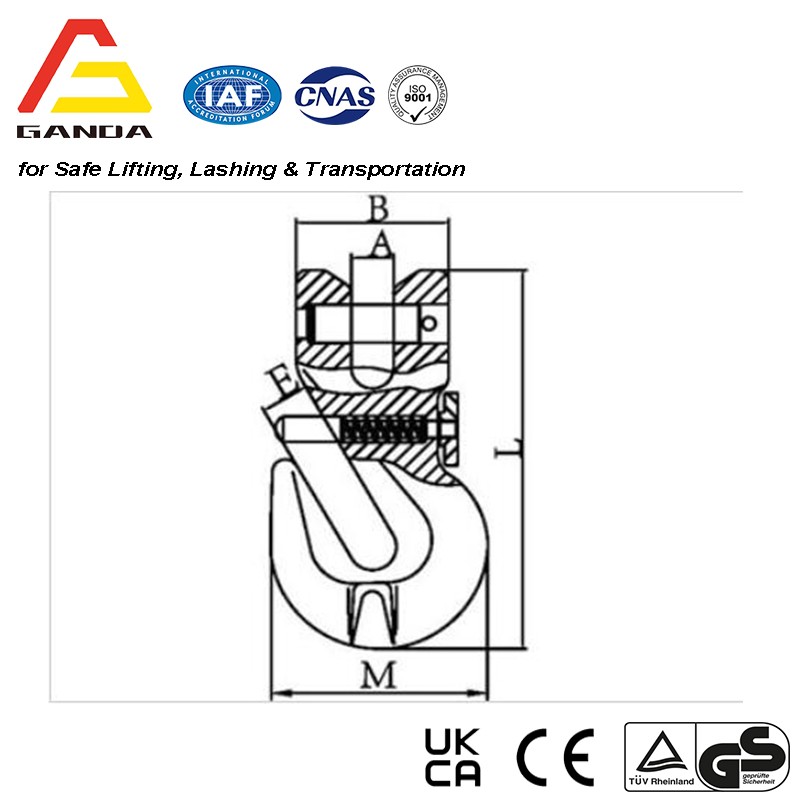

Technical Parameters

ITEMNO.	WEIGHT/kg	Working Load Limit (T)	Breaking Load (T)	A±0.5	B±1.2	E±0.5	M±2	L±2
8-GA313-06	0.28	1.12	4.48	8	32	8	43.5	75
8-GA313-7/8	0.33	2	8	9.5	35	11	49.5	89
8-GA313-10	0.88	3.15	12.6	12.5	42.5	13.2	70.5	126.5
8-GA313-13	1.85	5.3	21.2	15	53	16.5	90	163.5
8-GA313-16	3.24	8	32	19.5	65.5	19.2	112.5	183.5
