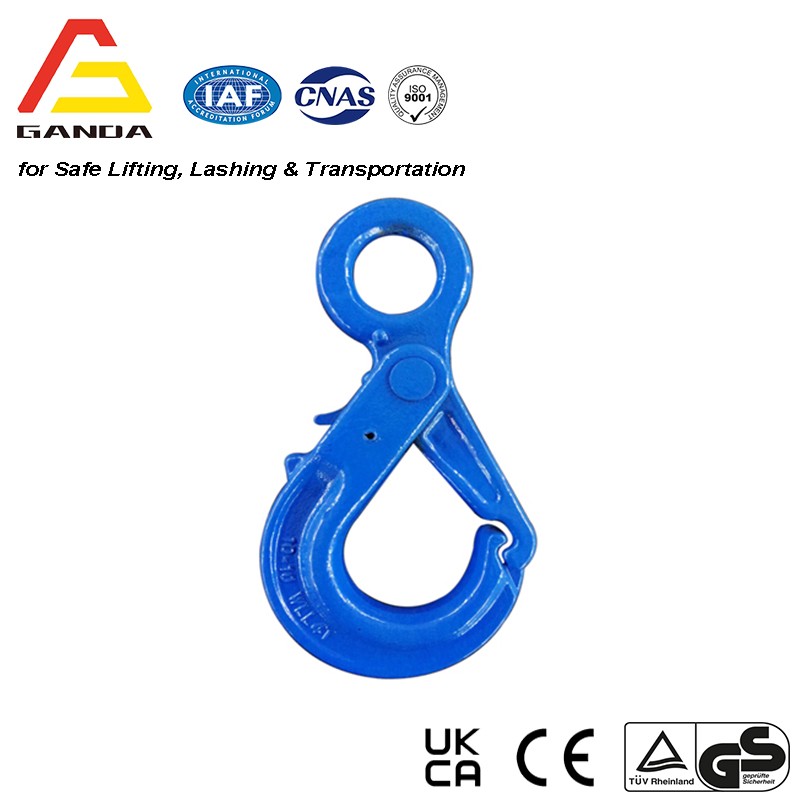

G100 Eye Self Locking Hook
FS: 4:1 para Corrente
FS: 5:1 para Cabo de Aço
Cor: Azul
Features
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.
Technical Parameters

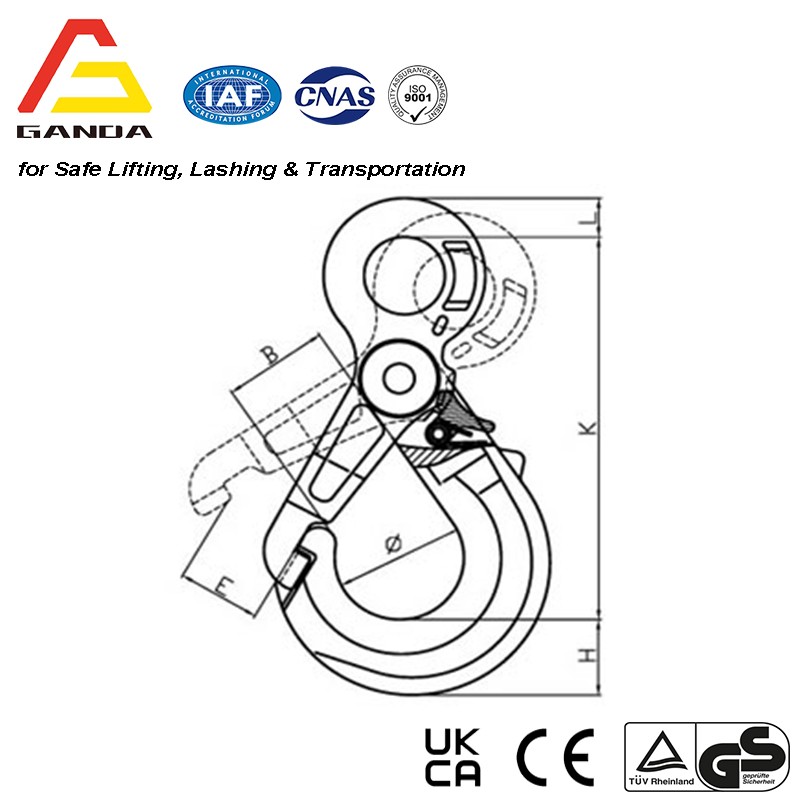

Item No | Weight Kg | Working Load Limit (t) | Breaking Load (t) | B±0,5 | E±1 | φ± 1 | φ'±1 | H±1 | K±2 | L±1 |
8-10 | 0.81 | 2.5 | 10 | 37.5 | 35 | 45 | 27 | 21 | 138 | 12 |
10-10 | 1.41 | 4 | 16 | 47.5 | 46 | 56 | 34.5 | 30.5 | 169 | 15 |
13-10 | 2.61 | 6.7 | 26.8 | 52 | 56 | 64 | 40 | 39 | 205 | 20 |
16-10 | 4.45 | 10 | 40 | 69 | 86 | 80 | 50 | 46.3 | 252 | 27 |
