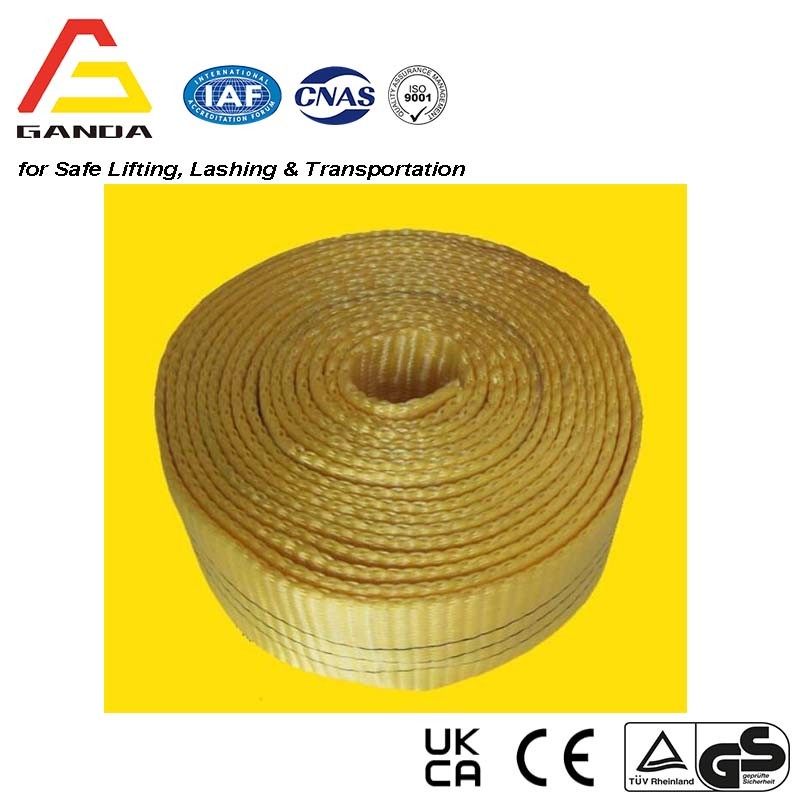

Webbing for Polyester Webbing Sling

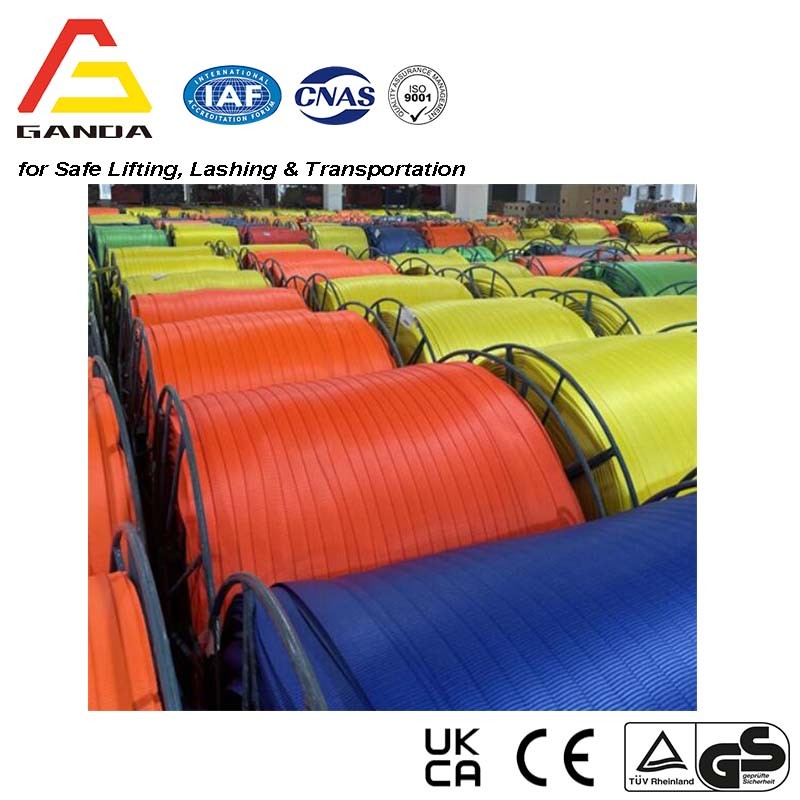

G&A Group( GANDA) can supply a full range of webbing material for sewing all kinds of webbing sling to you.

Material: 100% Polyester

Width: 1" to 4" (ASTM), 25mm to 300MM

Webbing material for difference safety factor duplex eye-eye and single endless webbing sling
According to EN1492-1,JB/T8521.1,AS1353.1


	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

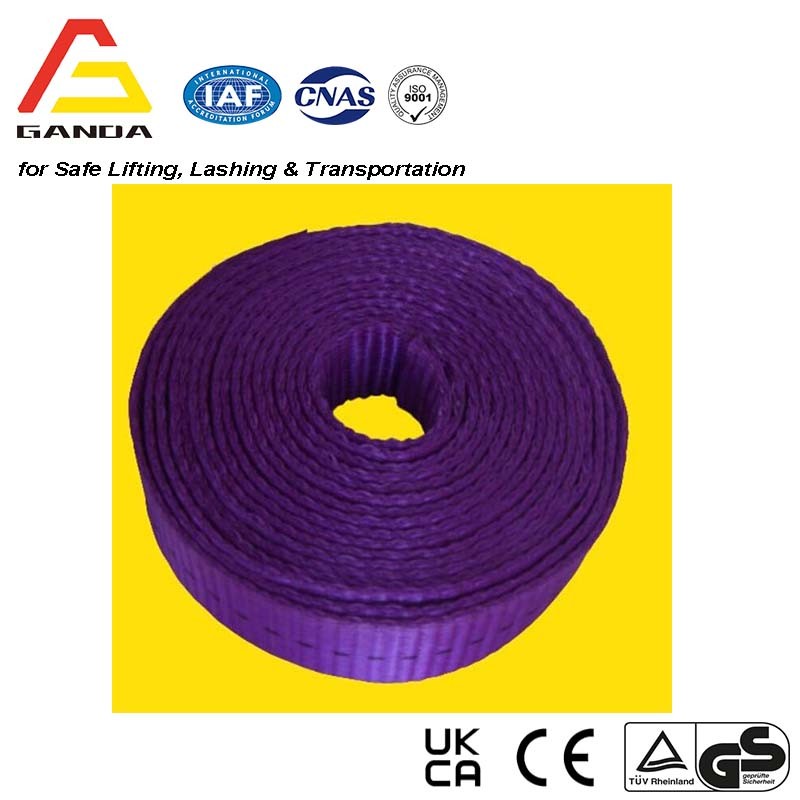

	1,000kgs	5:1	25	Violet	3125
	1,000kgs	6:1	25/38		3750
	1,000kgs	7:1	30/50/60		4500
	1,000kgs	8:1	50		5000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

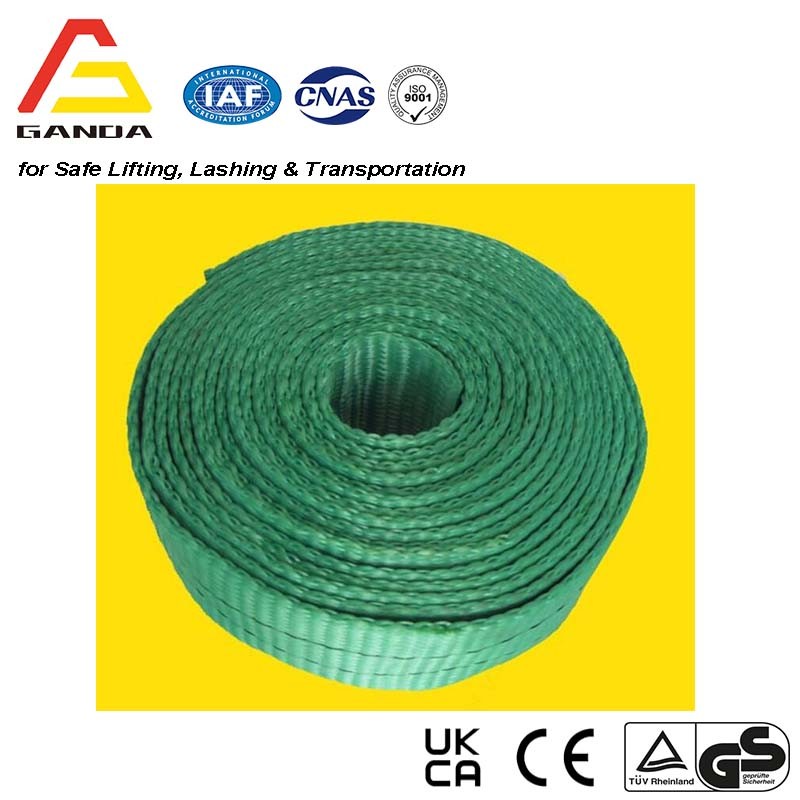

	2,000kgs	5:1	50	Green	6250
	2,000kgs	6:1	50		7500
	2,000kgs	7:1	60		9000
	2,000kgs	8:1	65		10000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)
	3,000kgs	5:1	75	Yellow	9375
	3,000kgs	6:1	75		11250
	3,000kgs	7:1	90		13500
	3,000kgs	8:1	95		15000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

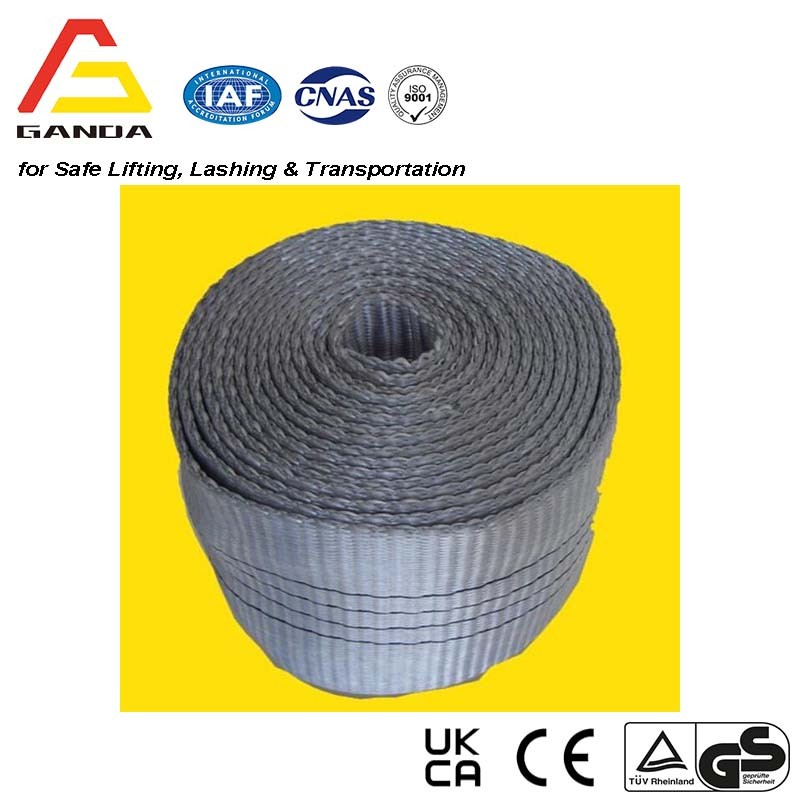

	4,000kgs	5:1	100	Grey	13000
	4,000kgs	6:1	100		15000
	4,000kgs	7:1	120		18000
	4,000kgs	8:1	120		20000

	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

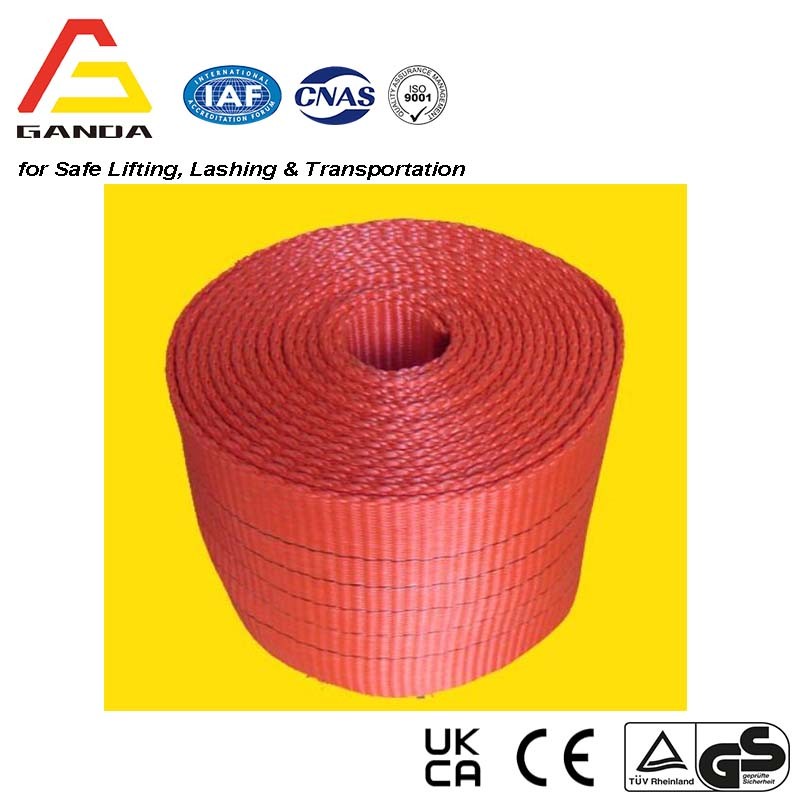

	5,000kgs	5:1	125	Red	15625
	5,000kgs	6:1	125		18750
	5,000kgs	7:1	150		22500
	5,000kgs	8:1	150		25000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

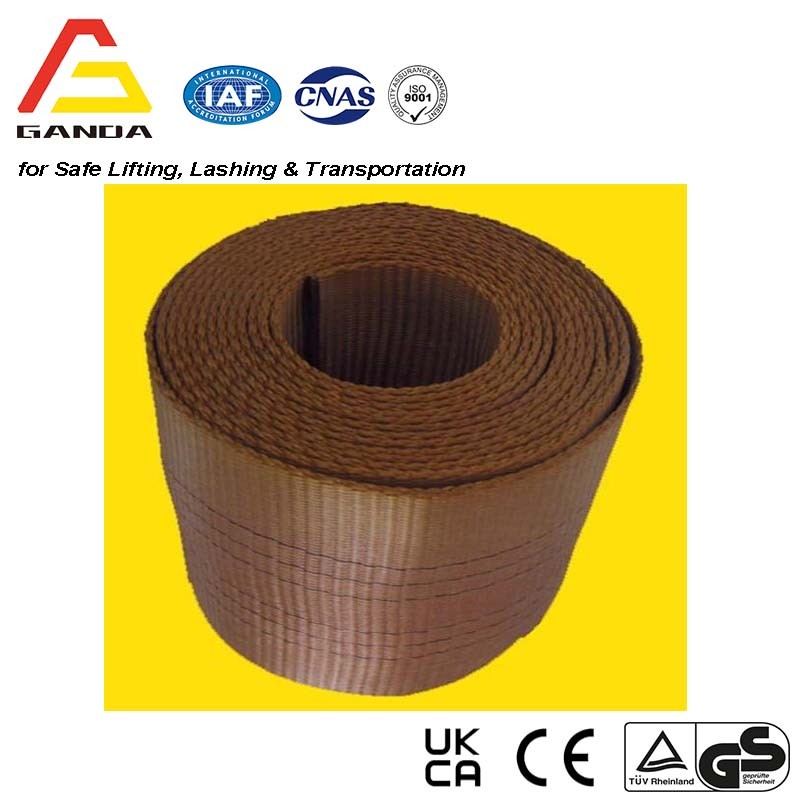

	6,000kgs	5:1	150	Brown	18750
	6,000kgs	6:1	150		22500
	6,000kgs	7:1	180		27000
	6,000kgs	8:1	180		30000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

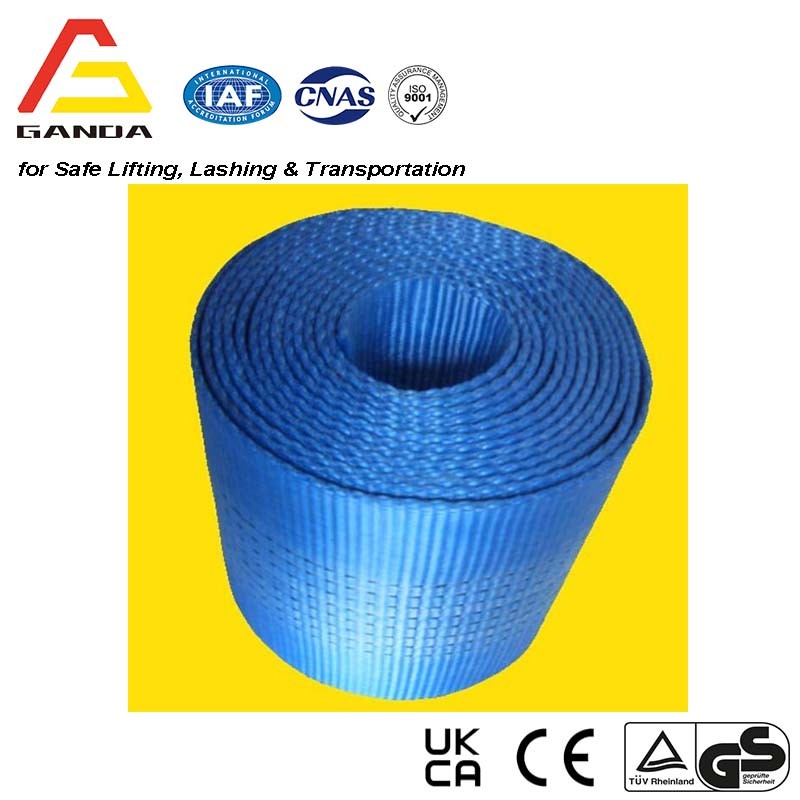

	8,000kgs	5:1	200	Blue	25000
	8,000kgs	6:1	200		30000
	8,000kgs	7:1	240		36000
	8,000kgs	8:1	240		40000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)

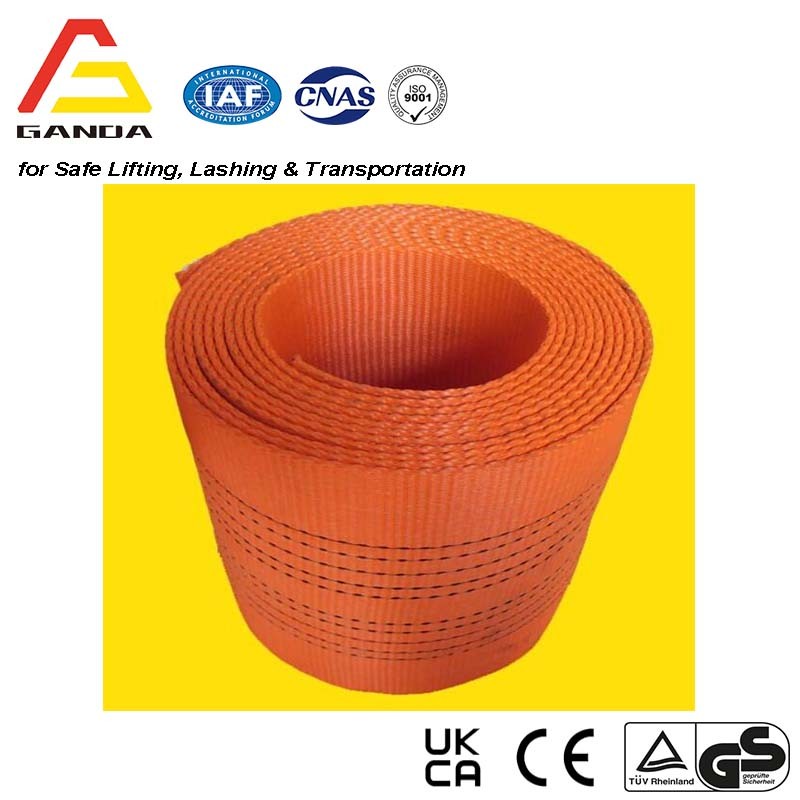

	10,000kgs	5:1	250	Orange	31250
	10,000kgs	6:1	250		37500
	10,000kgs	7:1	300		45000
	10,000kgs	8:1	300		50000
	WLL for Sling	Safety Factor	Width(mm)	Color	M.B.S.(kg)
	12,000kgs	5:1	300	Orange	37500
	12,000kgs	6:1	300		45000
	12,000kgs	7:1	300		54000

Webbing Sling to EN 1492-1

Webbing Sling to ASME/ANSI B 30.9

Webbing Sling to AS 1353

Flat Webbing Sling/Synthetic Webbing Sling/Lifting Sling
Technical specifications
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1
-Capacity stripes; Each stripe is equal to 1t onne capacity.
-The safe working load is clearly and continuously printed on the sleeve.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.
Characteristics:
-Low elongation.
-Extremely wear-resistant.
Norms
-According to Machine Directive 2006/42/EC and EN 1492-1
Options
-The safe working load is clearly printed on the sleeve.
Remarks
- 15t up to 100t is available.
- When ordering it is important to make clear whether the length specified is circumference or effective working length.


CAUTIONS!!!
  1. Failure to comply with this warning may result in serious load damage and death or injury.
  2. Use only if trained.
  3. Can fail if damaged, misused or overloaded.
  4. Inspect sling for damage before each use.
  5. Always protect sling webbing from sharp edges of load.
  6. Do not attempt to use sling above rated lifting capacity.
  7. Do not use sling if rated capacity tag is removed or unreadable.
  8. Avoid acid, alkali and sunlight.
  9. Do not tie knots in sling webbing as strength is greatly reduced.
  10. Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.
Chemical resistance information chart

*Disintegrated by concentrated sulfuric acid
*High chemical concentrations and/or higher temperatuires will lower the resistance of the sling
