Universal Lifting Clamp

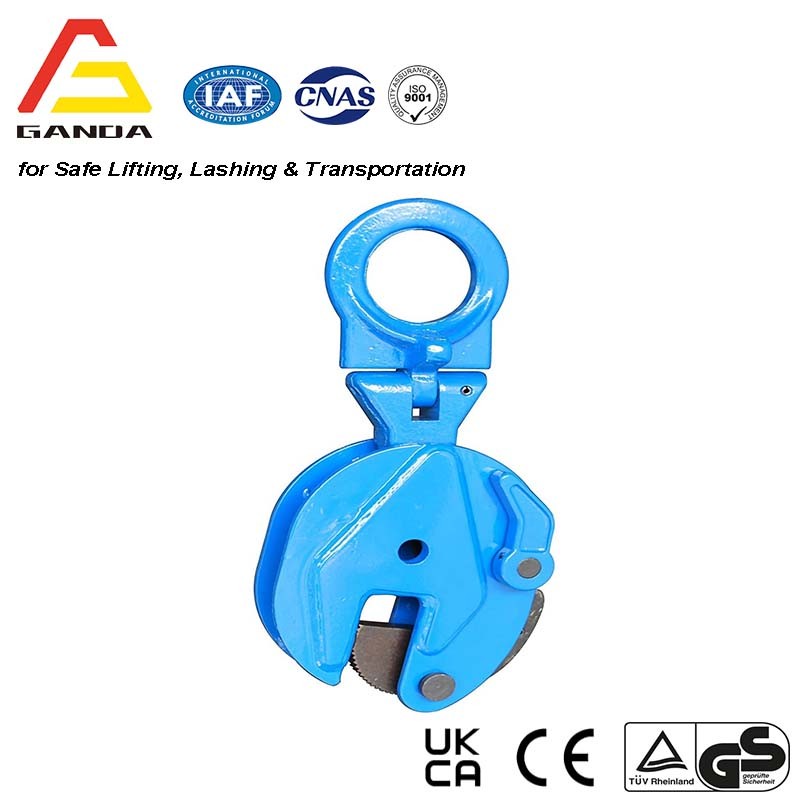

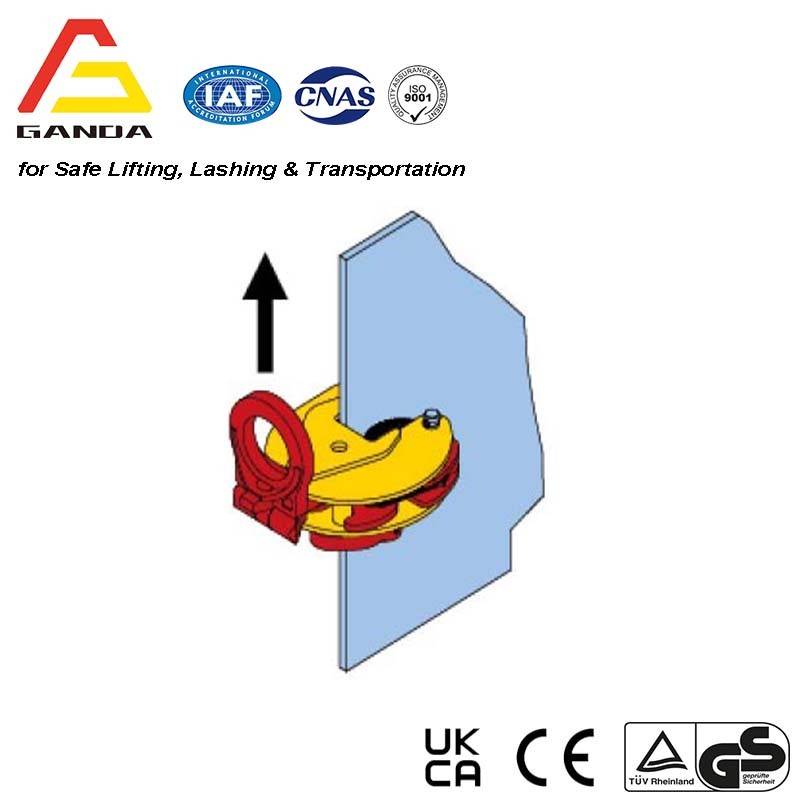

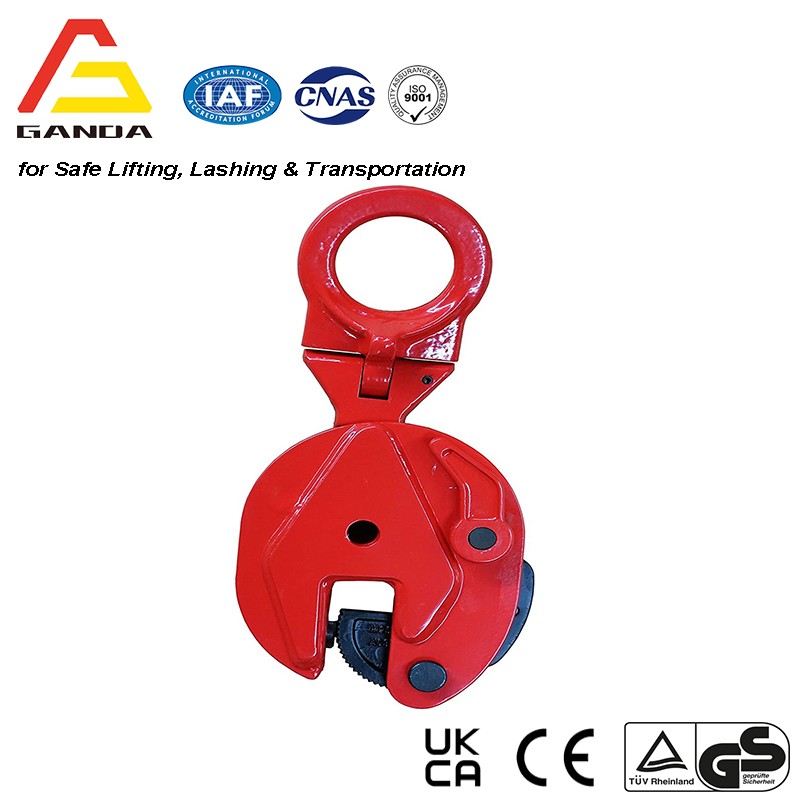

The GANDA Lifting Clamp can be used for lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong). As well as transporting plate, this clamp is well-suited to turning over steel structures and welded constructions. It has an articulated lifting shackle so can be fitted to a steel plate in any position. It is designed to be used with a two leg chain sling for lifting longer plates without the need for a spreader beam. The GANDA Lifting Clamp is equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when a load is being lowered. For use with plates with surface hardness of up to 300 Brinell (HB) / 32 Rockwell C (HRC).Plate Clamps should not be used if the surface temperature of the material being lifted is above 100°C. (212°F). The ambient temperature of the operating environment should not be lower than -20°C (-4°F) and not be higher than +50°C. (122°F).

• 0.5t to 5.0t capacities available

• Articulating lifting shackle

• No tools required – integrated adjusting handle

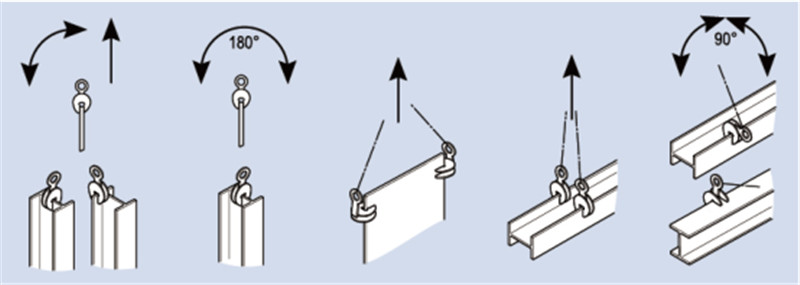

• For lifting and transporting steel plates and structures from all positions (horizontal, vertical and side loading)

• For lifting applications

• Suitable for plates ranging from 0-50mm (model dependent)

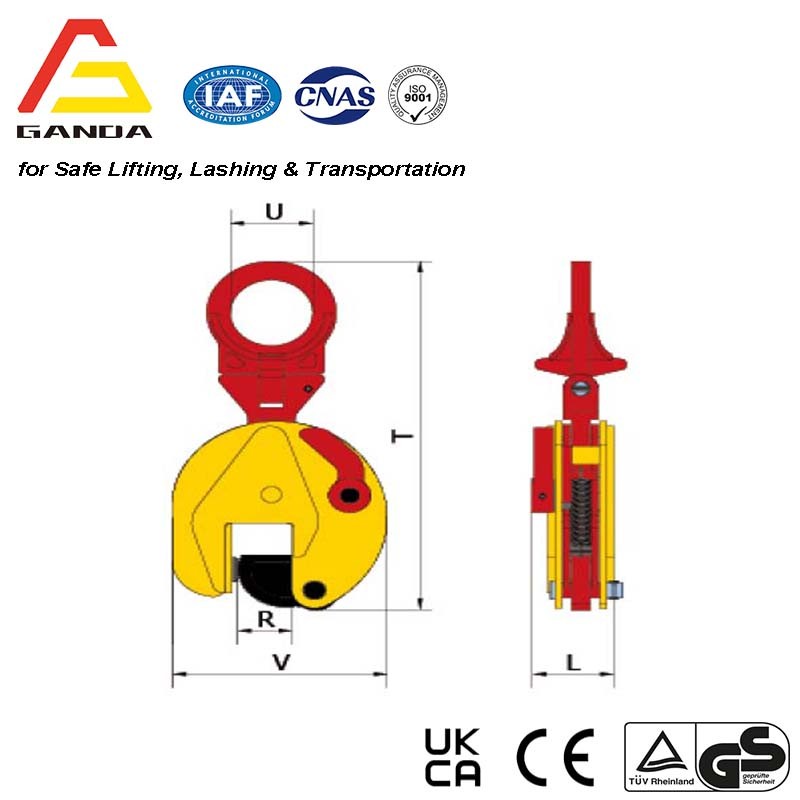

  Model	Jaw Opening  [mm]	Load Capacity [kg]	Net Weight [kg]
  GA-CD0.5T	0~15	500	2
  GA-CD1T	0~20	1000	5
  GA-CD2T	0~25	2000	8
  GA-CD3.2T	0~30	3200	15
  GA-CD5T	0~50	5000	23
  GA-CD8T	0~45	8000	37
  GA-CD12T	50~90	12000	50
  GA-CD16T	60~100	16000	65
  GA-CD20T	0~80	20000	160
  GA-CD30T	10~90	30000	167

A: We have CE, ISO9001, SGS for all products, and we can assist you with any certificate application you need.Q1: Do you have relevant certificate?

Q2: Can I add my logo on the product?

A: Yes, we can offer OEM and ODM service to you.

Q3: Can I have a sample for testing?

A: Of course, Samples are not important, but sample will be 10% higher than quantity production.

Q4: How can I have the after-service?

A: We will assist you with installation and usage of the product. Our product is lifelong maintenance.

Q5: Do you have inspection procedures for the manufacture line?

A: We have 100% self-inspection quality management system before packing.
