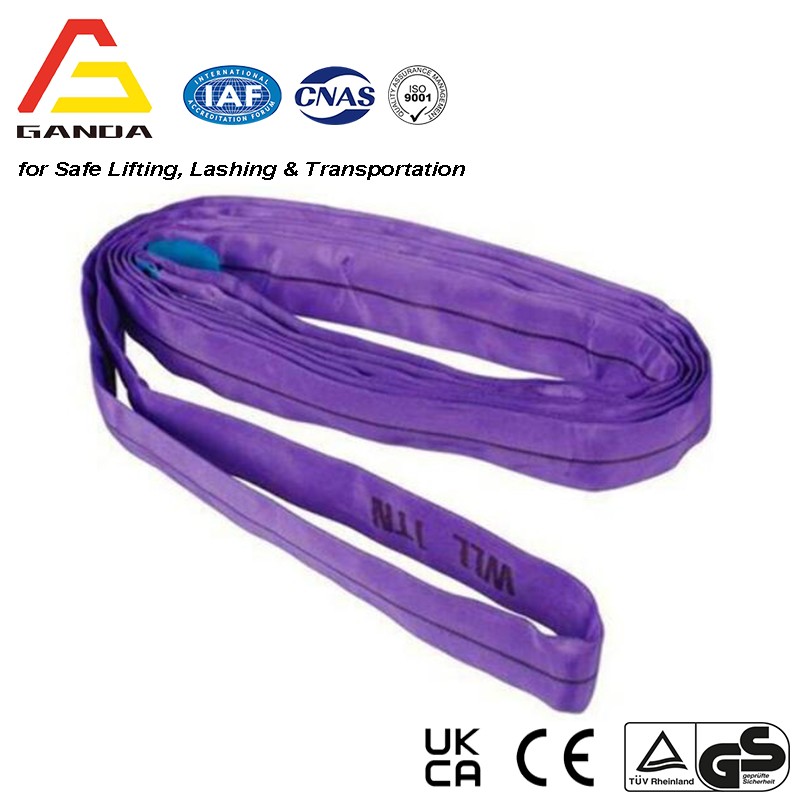

1T Roundsling

1T Polyester Roundsling to EN 1492-1
-Colour coded according to EN 1492-2 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity: 1T
-Length: 0,5m to 10m

Polyester Lifting RoundSling- - 1T/1,000KGS

Technical specifications
-Colour coded according to EN 1492-2 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity stripes; Each stripe is equal to 1 tonne capacity.
-The safe working load is clearly and continuously printed on the sleeve.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.

Characteristics:
-Low elongation.
-Extremely wear-resistant.

Norms
-According to Machine Directive 2006/42/EC

Options
-The safe working load is clearly printed on the sleeve.
Remarks
- 15t up to 100t is available.
- When ordering it is important to make clear whether the length specified is circumference or effective working length.

Item	Colourcoded According to EN 1492-2 NBR 15637-2	Working Load Limit
		Straight Lift	Choked Lift	ß
		Straight Lift	Choked Lift	0°-7°	7°-45°	45°-60°	Up to 45°	45°-60°
		1.0	0.8	2.0	1.4	1.0	0.7	0.5
GARS7-01	Purple	1000	800	2000	1400	1000	700	500
GARS7-02	Green	2000	1600	4000	2800	2000	1400	1000
GARS7-03	Yellow	3000	2400	6000	4200	3000	2100	1500
GARS7-04	Grey	4000	3200	8000	5600	4000	2800	2000
GARS7-05	Red	5000	4000	10000	7000	5000	3500	2500
GARS7-06	Brown	6000	4800	12000	8400	6000	4200	3000
GARS7-08	Blue	8000	6400	16000	11200	8000	5600	4000
GARS7-10	Orange	10000	8000	20000	14000	10000	7000	5000
GARS7-12	Orange	12000	9600	24000	16800	12000	8400	6000
