1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.

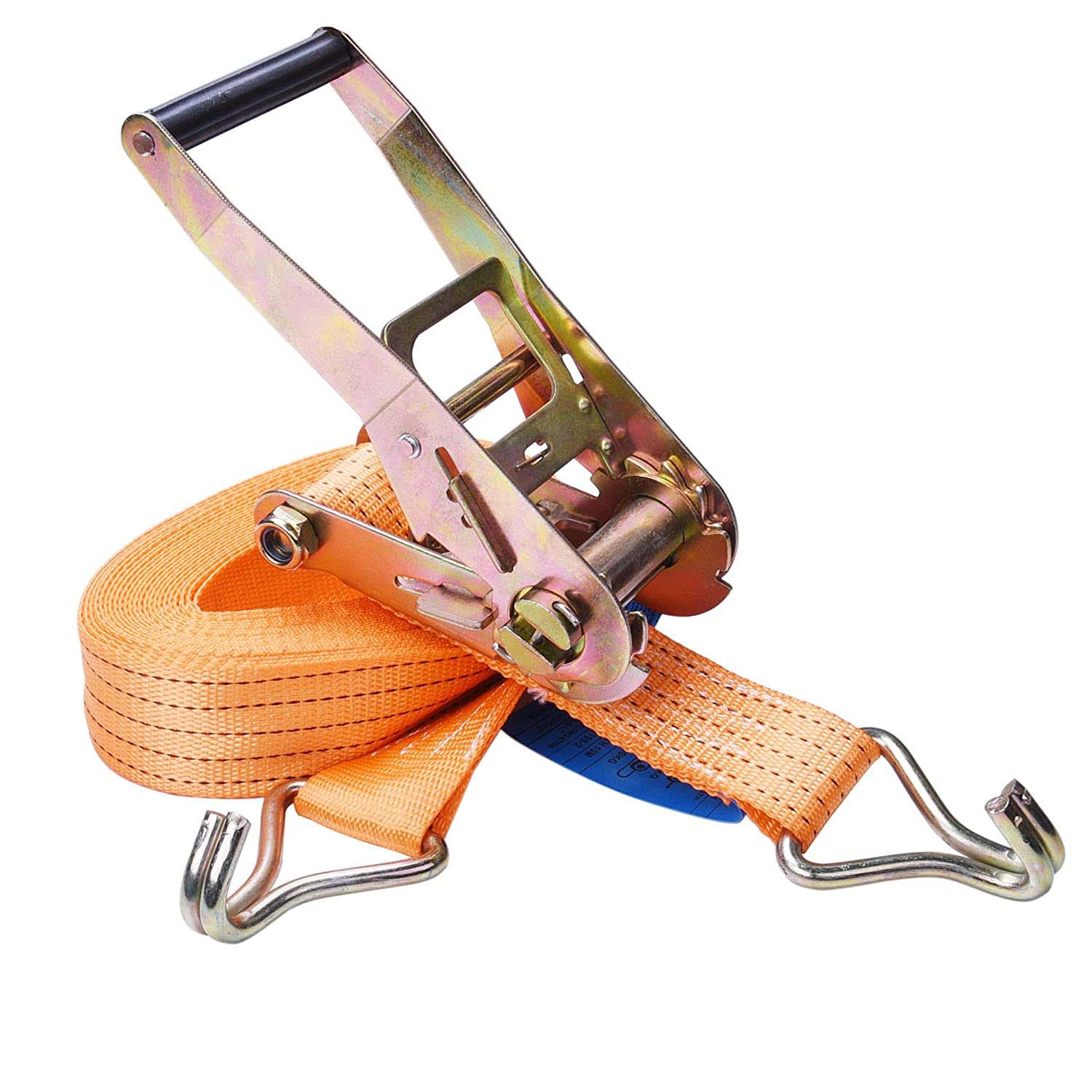

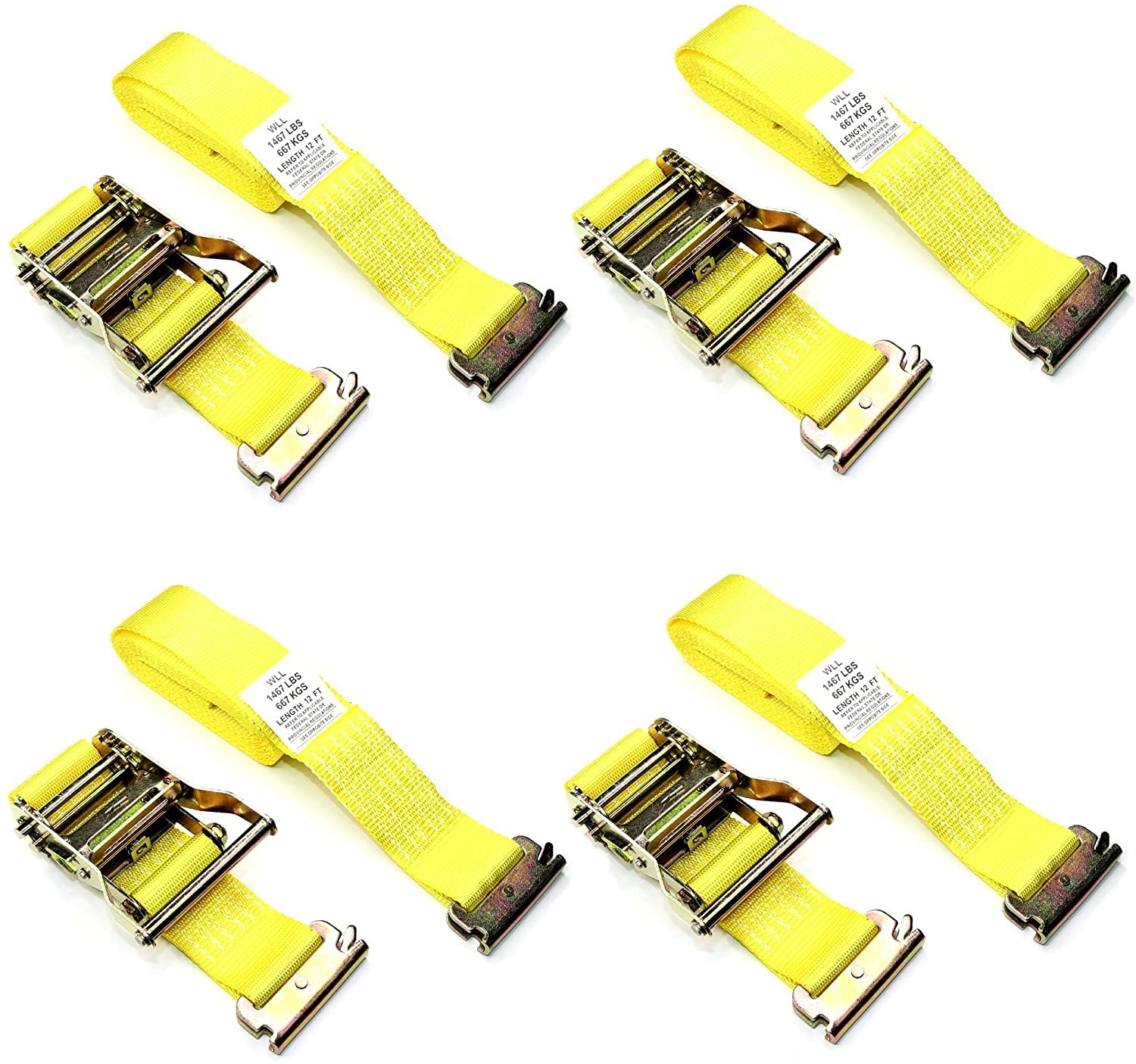

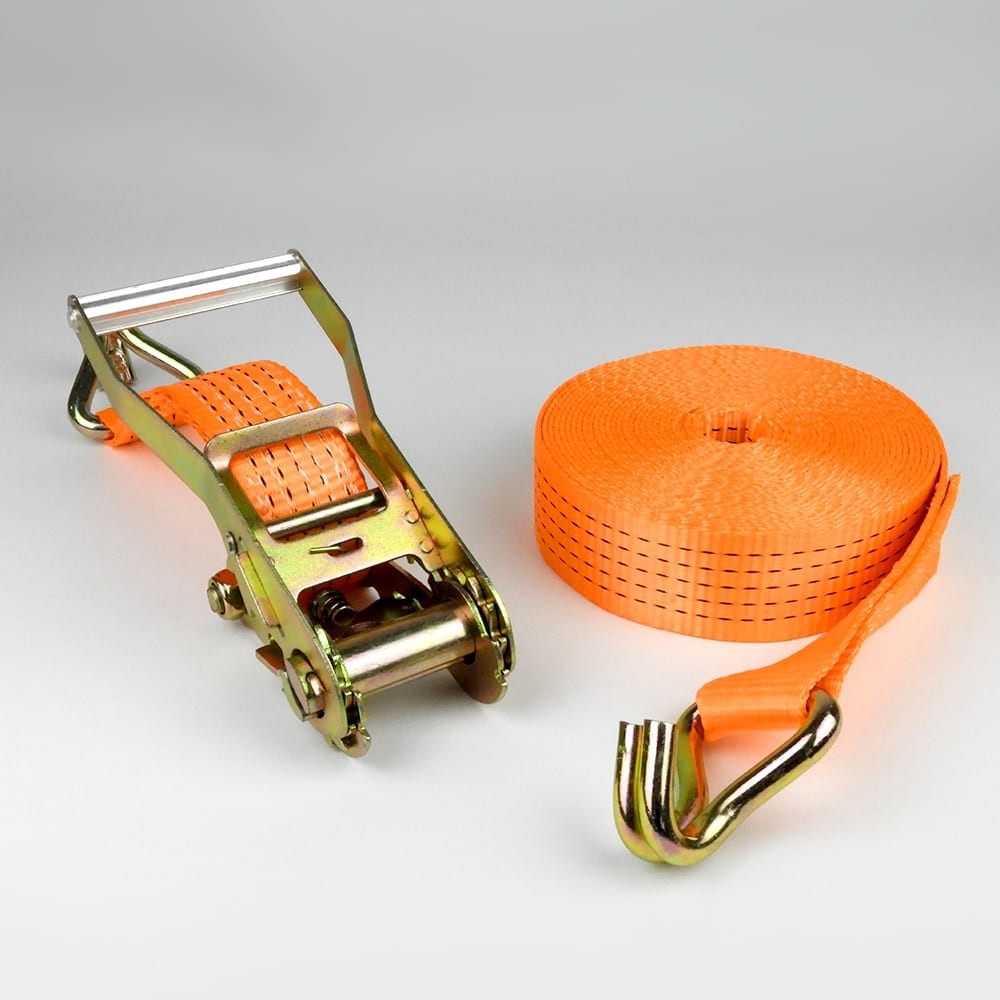

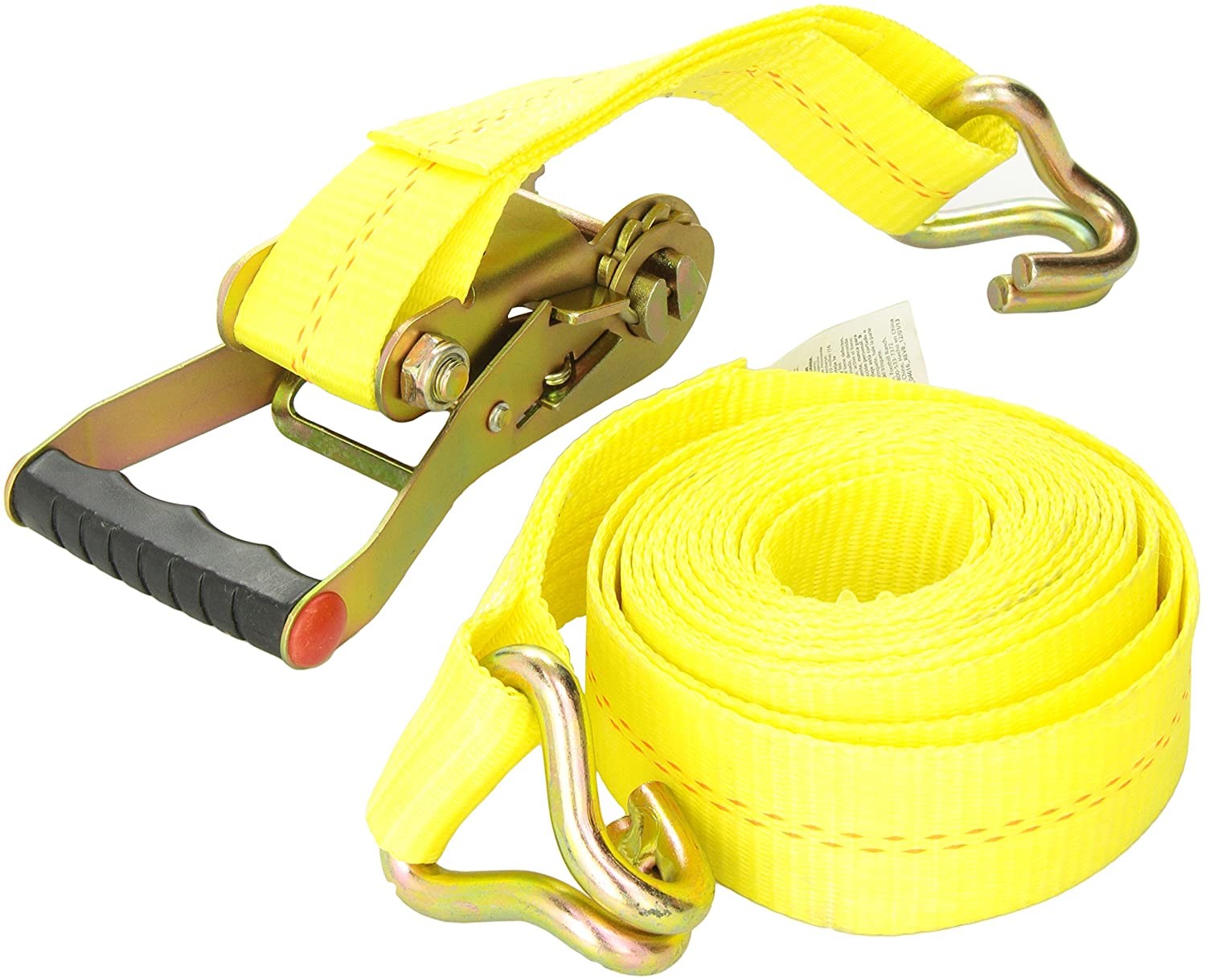

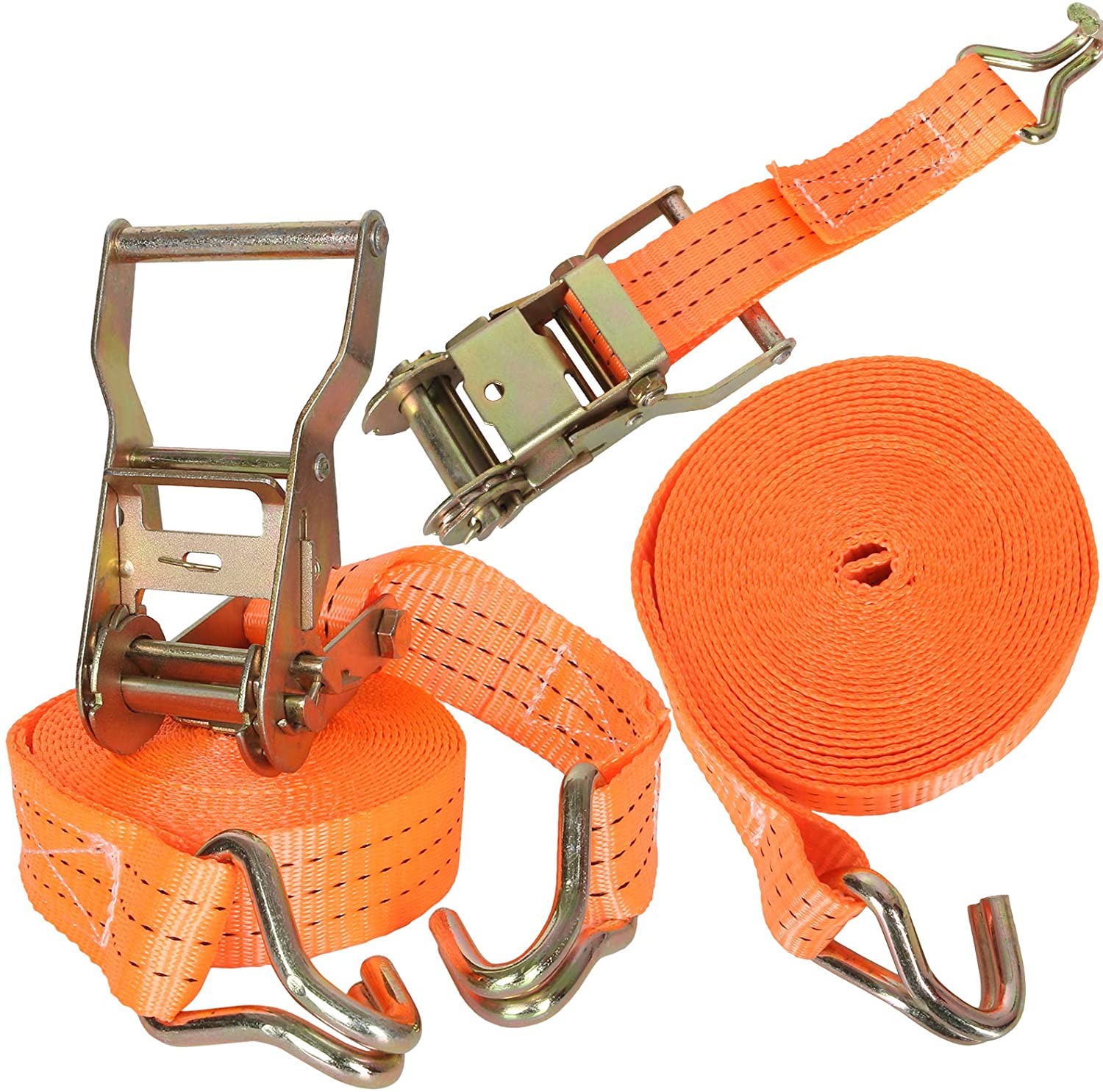

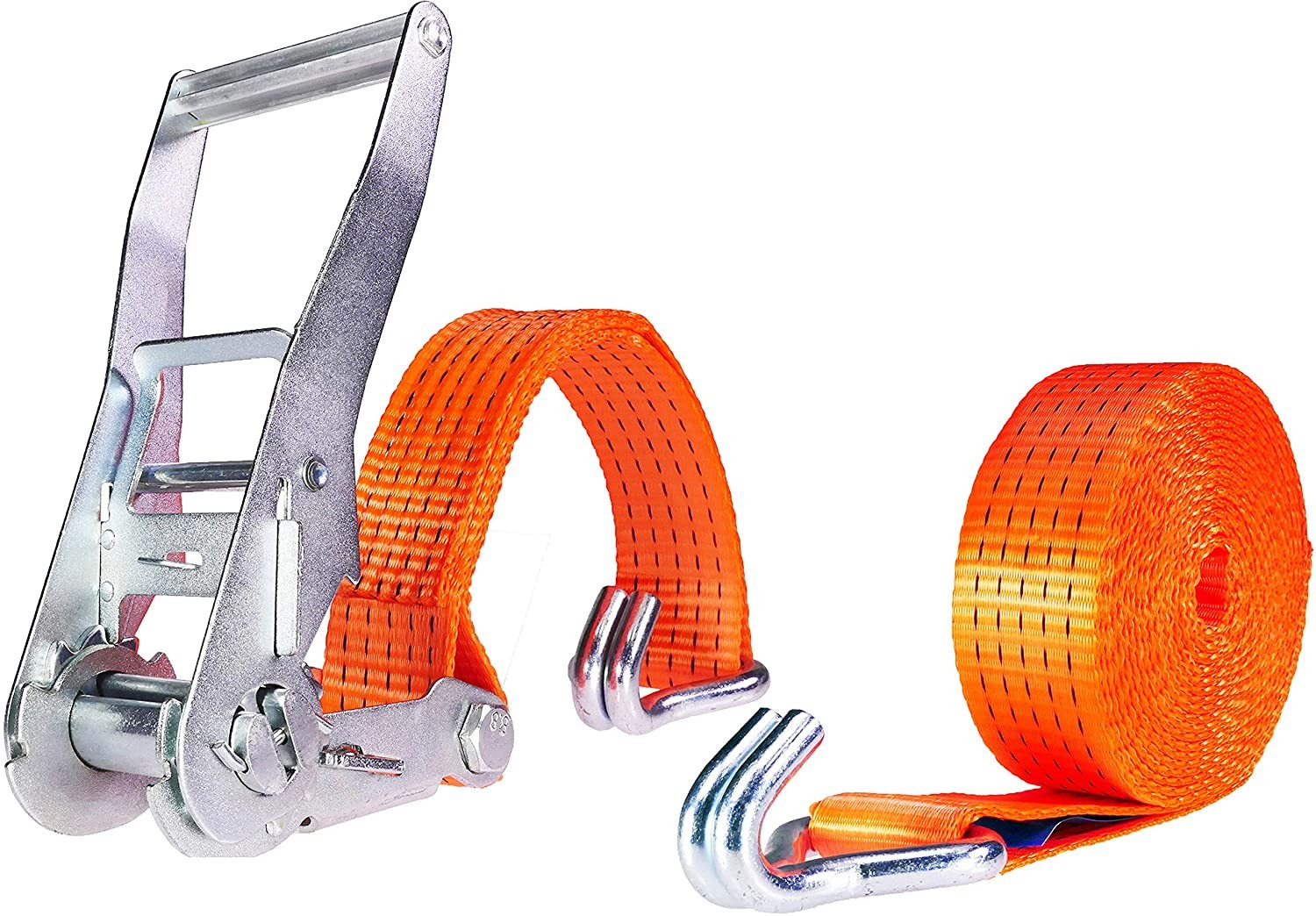

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
Width from 25MM to 100MM
Breaking Strength from 250kgs to 10,000kgs

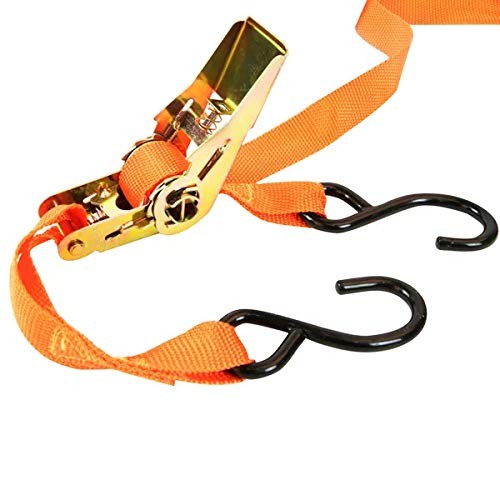

The End Fitting can be Double J hook, S Hook, Flat Hook, Twist Hook, Hook with Keeper, Chain Hook etc.
Low Elongation
Any Color is Available upon Request
EN 12195-2, DIN 60060 | ASTM B.30.9 | AS 4380 |

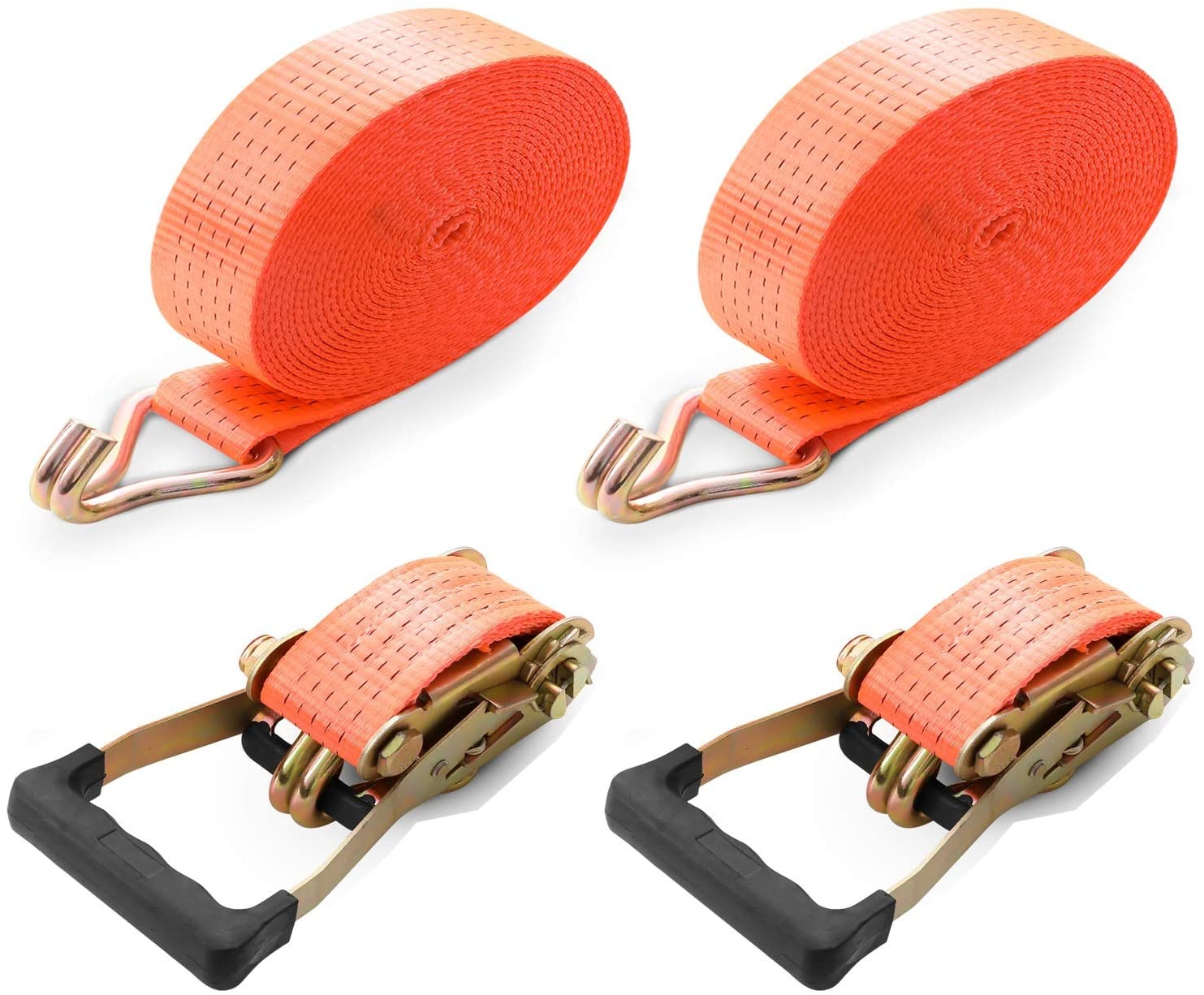

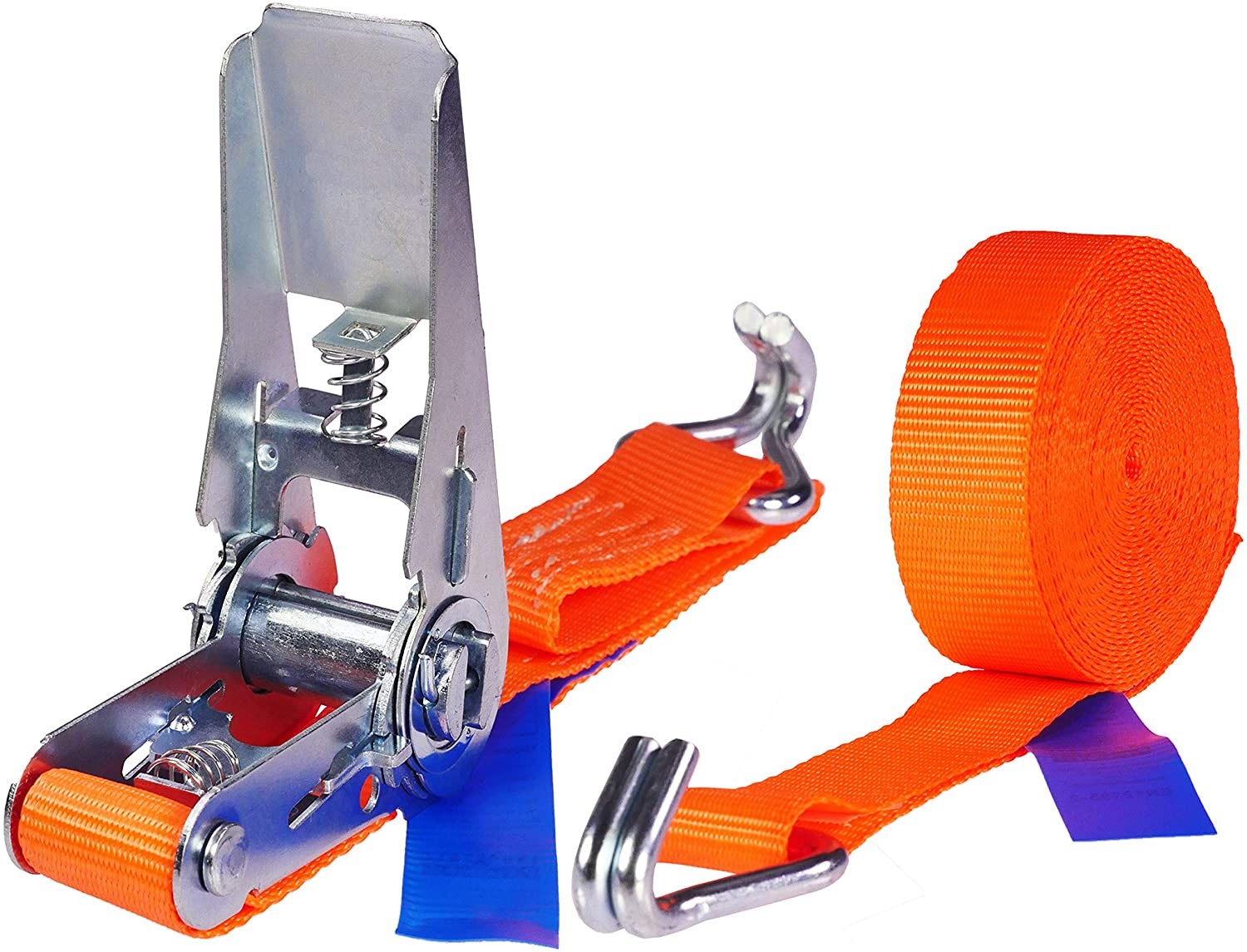

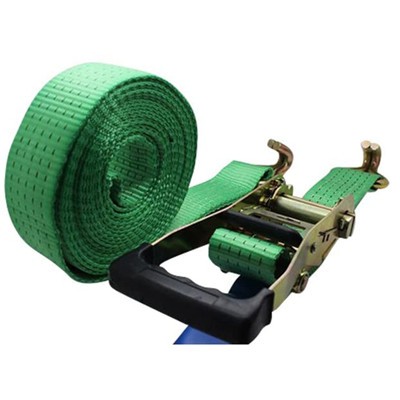

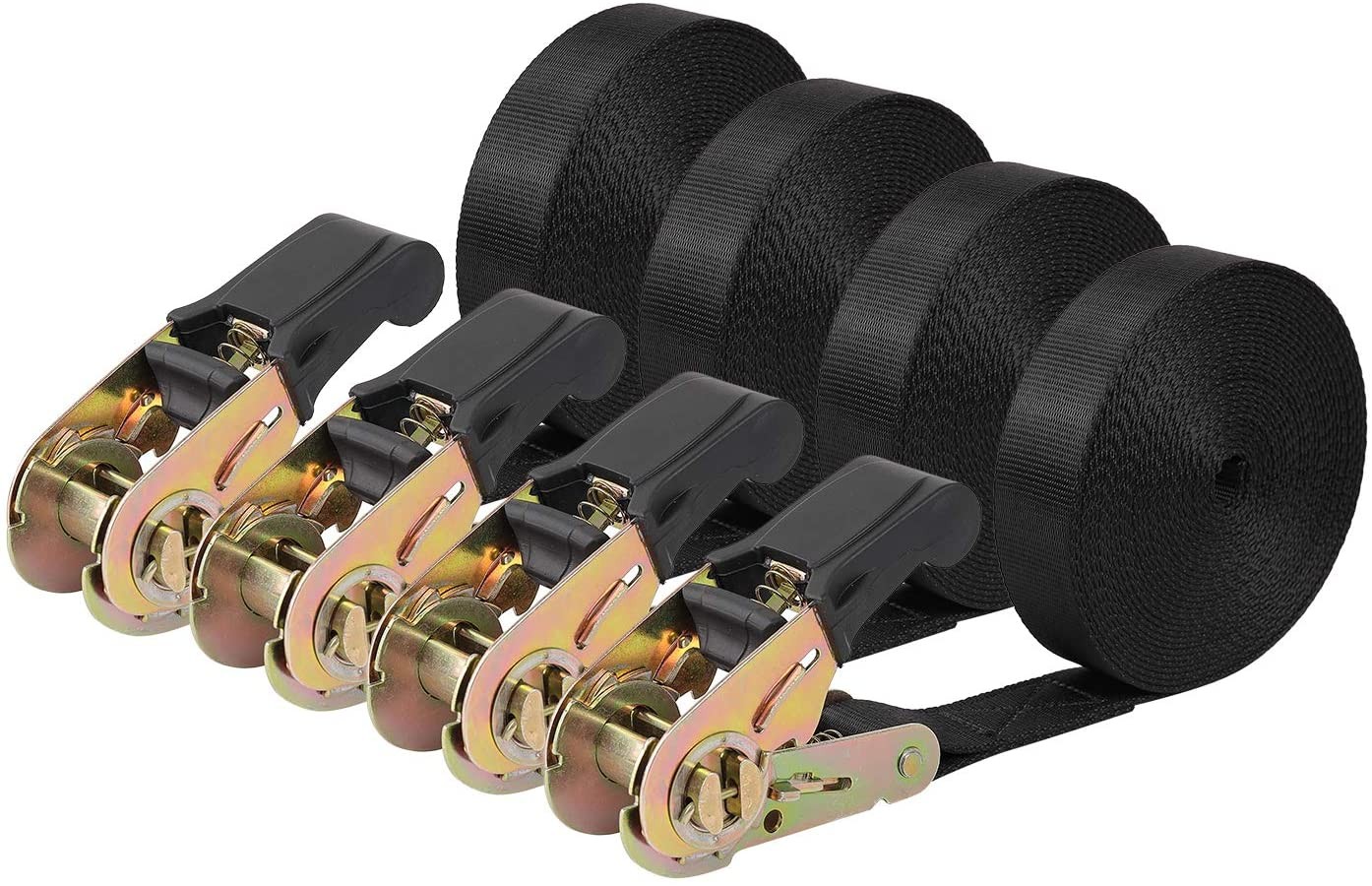

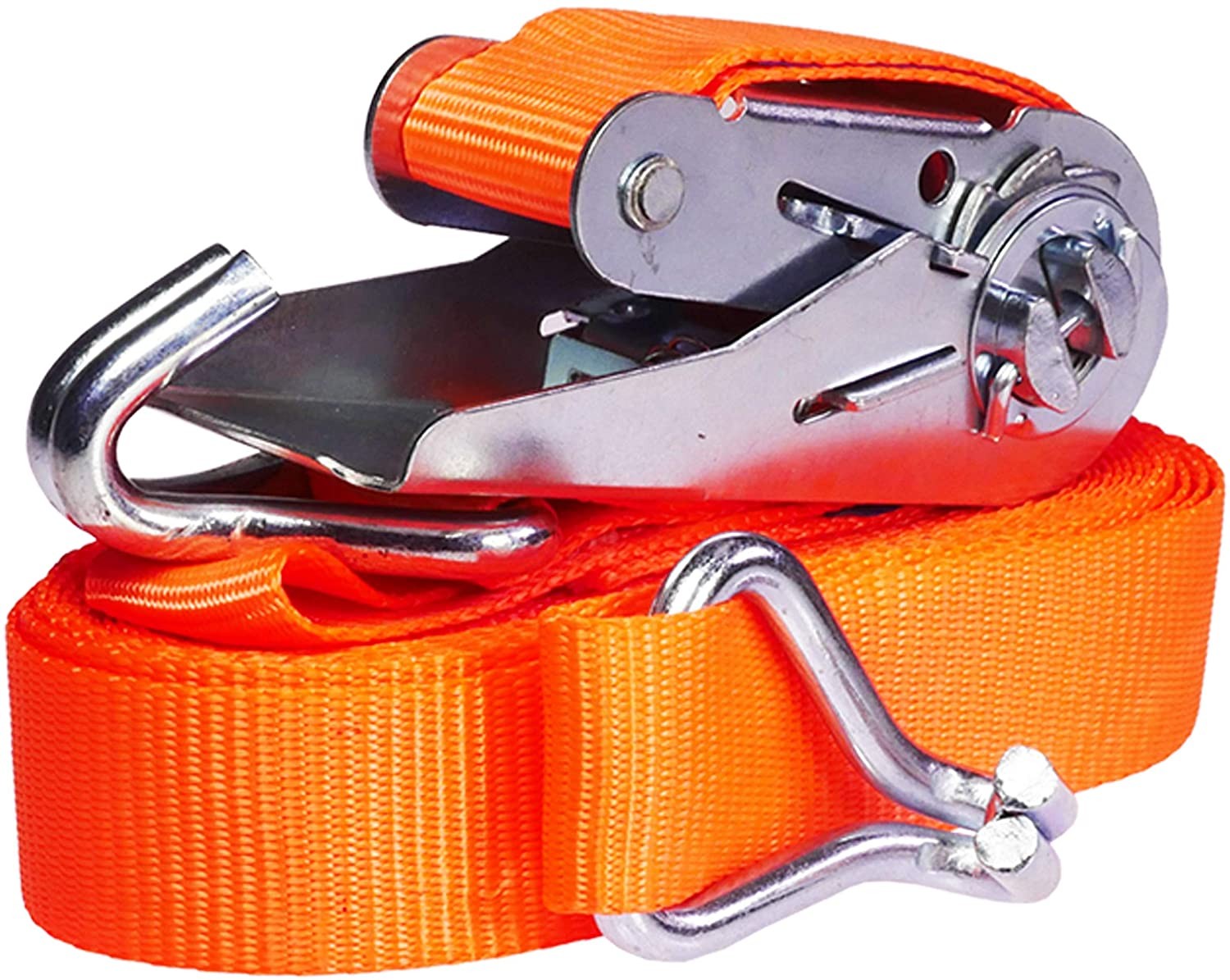

Ratchet Lashings are used for tying down loads whilst transporting, shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are:
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
Width from 25MM to 100MM
Breaking Strength from 250kgs to 10,000kgs
The End Fitting can be Double J hook, S Hook, Flat Hook, Twist Hook, Hook with Keeper, Chain Hook etc.
Low Elongation
Any Color is Available upon Request
Width | STANDARD LENGTH | END FITTINGS | M. B. S. |
50MM | 0.5 + 9.5M | Double J Hook | 4, 000KG |
50MM | 5, 000KG | ||
50MM | 0.5 + 9.5M | Flat Hook | 4, 000KG |
50MM | 5, 000KG | ||
50MM | 0.5 + 9.5M | Single J Hook | 4, 000KG |
50MM | 5, 000KG | ||
75MM | 0.5 + 9.5M | Double J Hook | 10, 000KG |
75MM | 7, 500KG | ||
75MM | 0.5 + 9.5M | Flat Hook | 10, 000KG |
75MM | 7, 500KG | ||
35MM | 0.5 + 5.5M | Double J Hook | 3, 000KG |
35MM | 2, 500KG | ||
25MM | 0.4 + 4.6M | Double J Hook | 800KG |
25MM | 500KG | ||
25MM | 0.4 + 4.6M | S Hook | 800KG |
25MM | 500KG |
