Polyester Webbing Sling with Lifting Eyes

We can supply the full range of webbing sling to
European Standard EN 1492-1
American Standard ASME/ANSI B 30.9
Australia AS 1353

Sling to European Standard: Webbing Sling to EN 1492-1

Sling to American Standard: Webbing Sling to ASME/ANSI B 30.9

Sling to Australia  Standard: Webbing Sling to AS 1353

Flat Webbing Sling/Synthetic Webbing Sling/Lifting Sling
Technical specifications
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1
-Capacity stripes; Each stripe is equal to 1t onne capacity.
-The safe working load is clearly and continuously printed on the sleeve.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.
Characteristics:
-Low elongation.
-Extremely wear-resistant.
Norms
-According to Machine Directive 2006/42/EC and EN 1492-1
Options
-The safe working load is clearly printed on the sleeve.
Remarks
- 15t up to 100t is available.
- When ordering it is important to make clear whether the length specified is circumference or effective working length.


ItemColour
Working Load Limit
Straight

Lift

Choked

Lift

ß
0°-7°7°-45°  45°-60°  Up to 45°   45°-60°
 1.0 0.82.0  1.4 1.0 0.7 0.5
WS7EE01 Purple 1000 800 2000 1400 1000 700 500

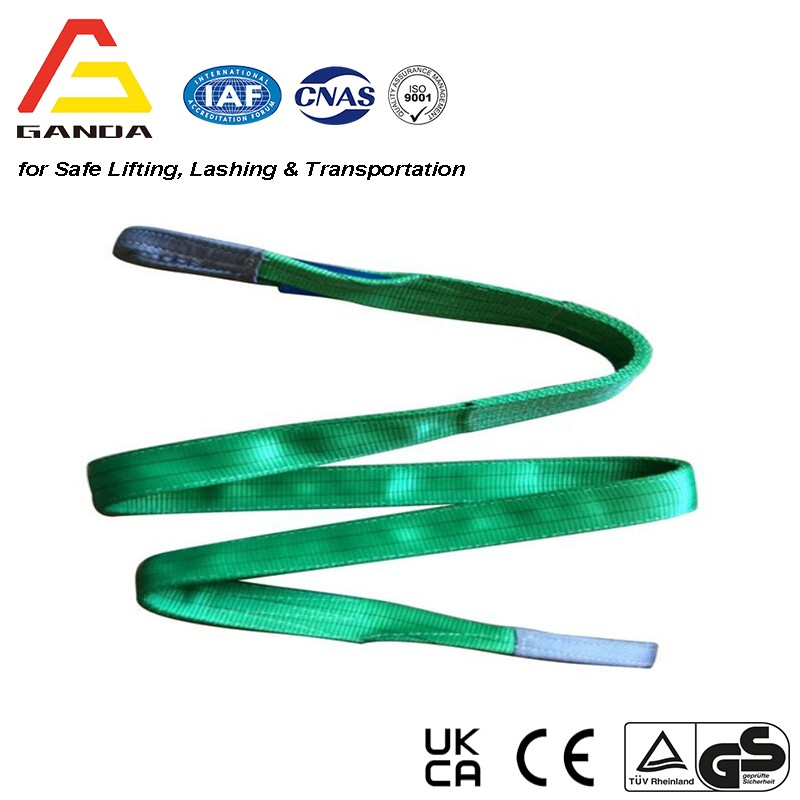

WS7EE02 Green 2000 1600 4000 2800 2000 1400 1000

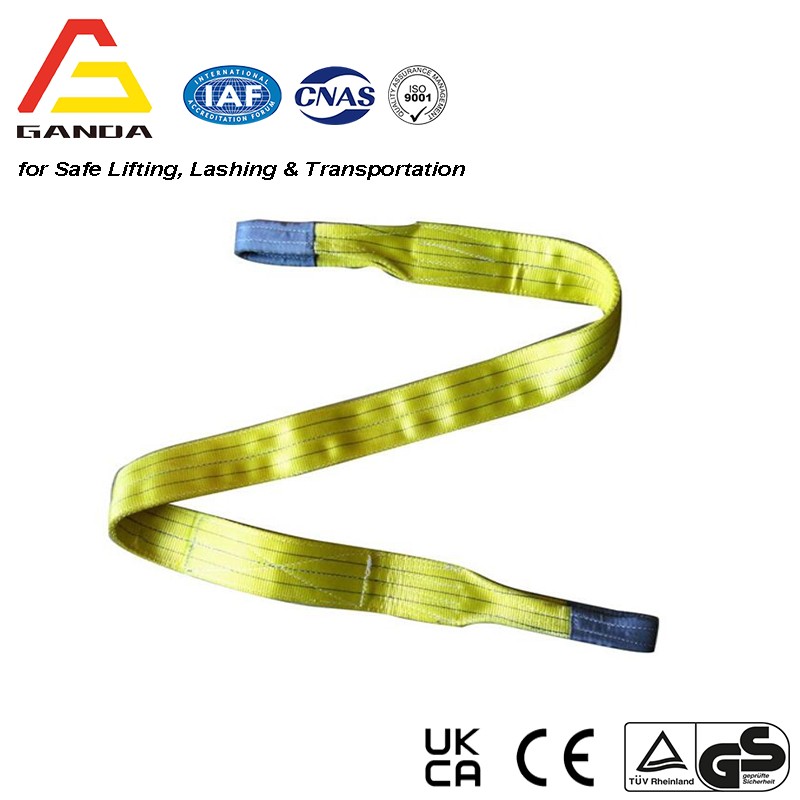

WS7EE03 Yellow 3000 2400 6000 4200 3000 2100 1500

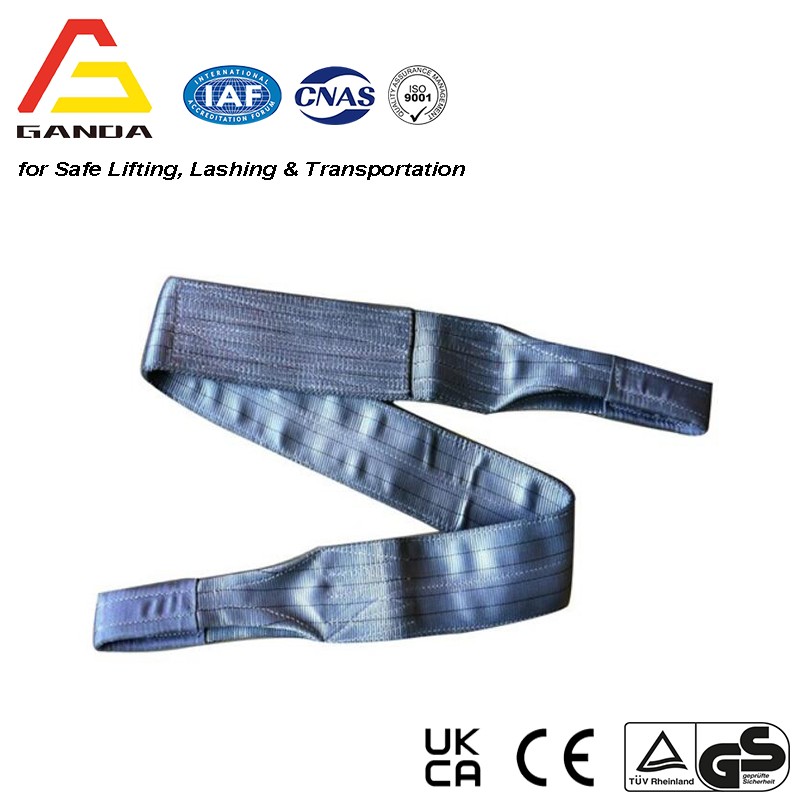

WS7EE04 Grey 4000 3200 8000 5600 4000 2800 2000

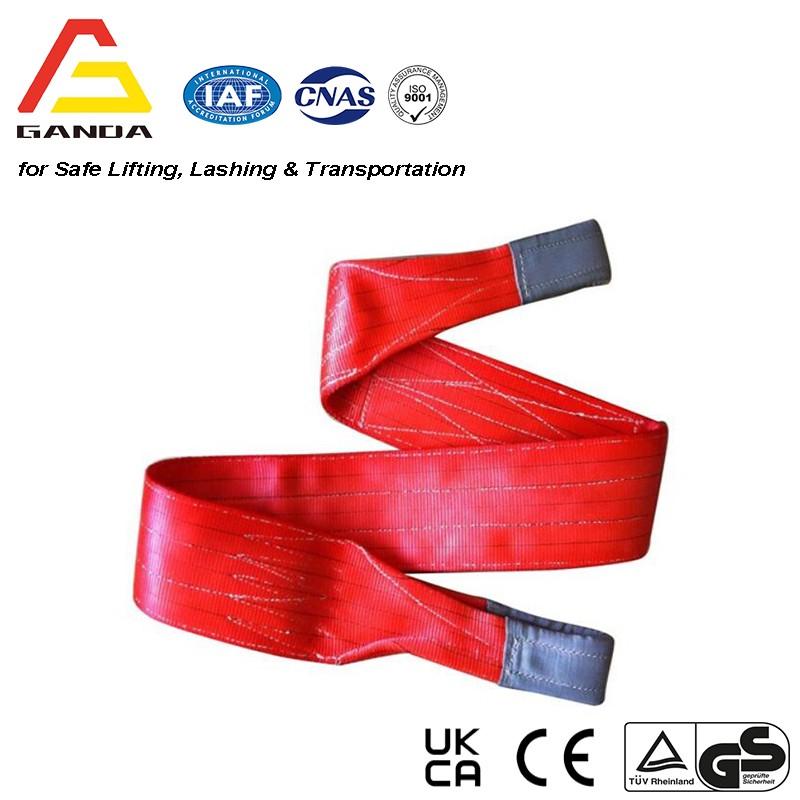

WS7EE05 Red 5000 4000 10000 7000 5000 3500 2500

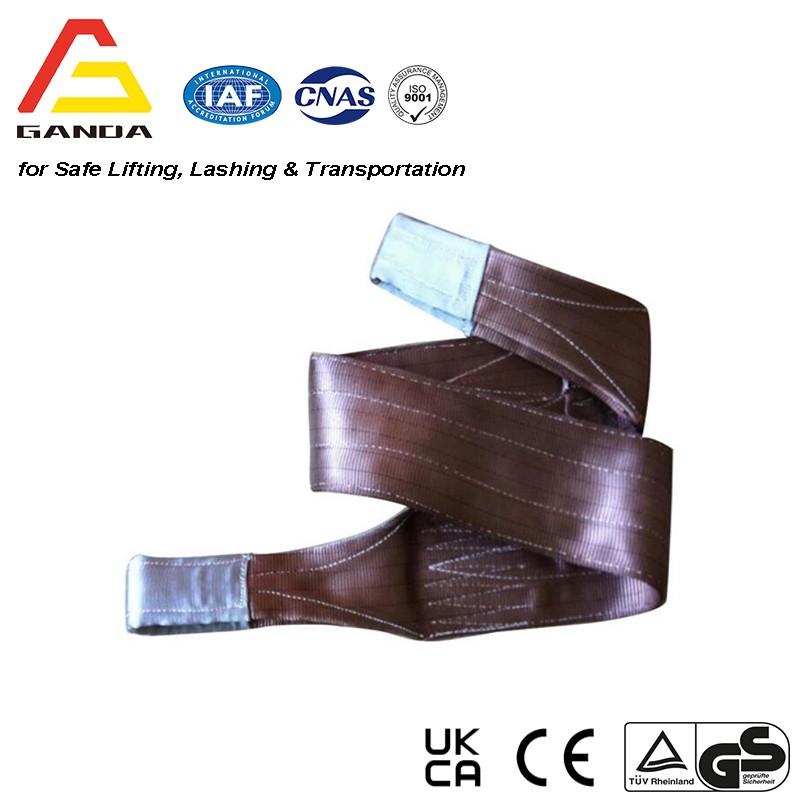

WS7EE06 Brown 6000 4800 12000 8400 6000 4200 3000

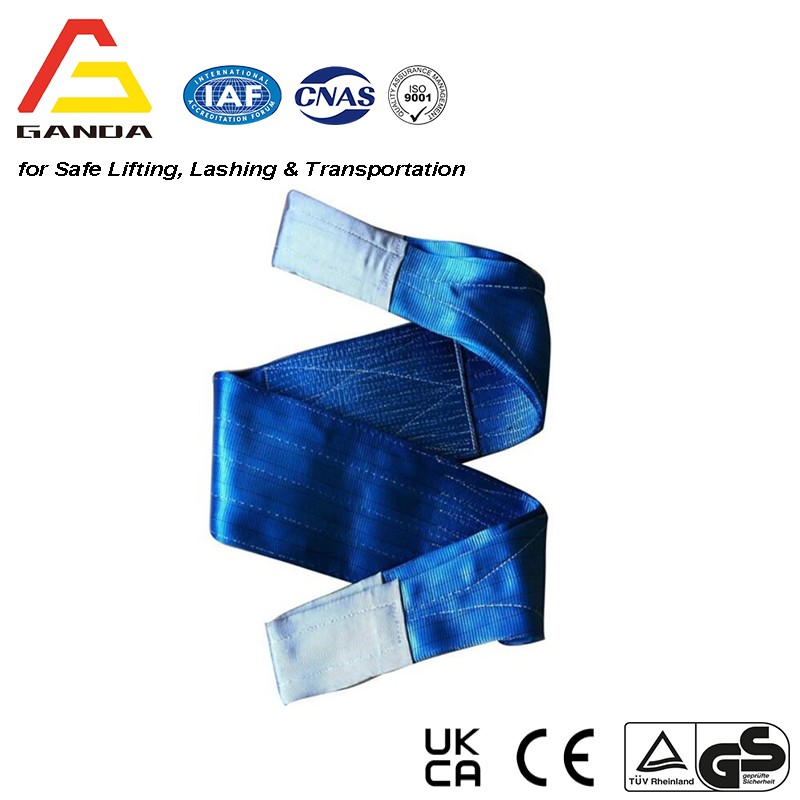

WS7EE08 Blue 8000 6400 16000 11200 8000 5600 4000

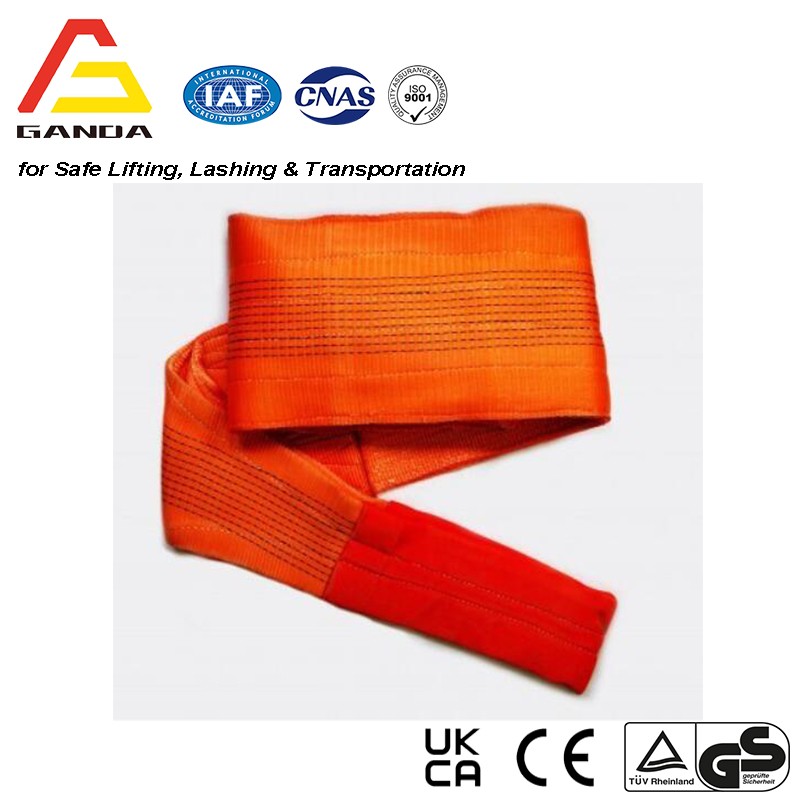

WS7EE10 Orange 10000 8000 20000 14000 10000 7000 5000
WS7EE12 Orange 12000 9600  24000 16800  12000 8400 6000

CAUTIONS!!!
  1. Failure to comply with this warning may result in serious load damage and death or injury.
  2. Use only if trained.
  3. Can fail if damaged, misused or overloaded.
  4. Inspect sling for damage before each use.
  5. Always protect sling webbing from sharp edges of load.
  6. Do not attempt to use sling above rated lifting capacity.
  7. Do not use sling if rated capacity tag is removed or unreadable.
  8. Avoid acid, alkali and sunlight.
  9. Do not tie knots in sling webbing as strength is greatly reduced.
  10. Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.
Chemical resistance information chart

MaterialAcidsAlkaliEthersAldehydesAlcoholsOilsOrganic solventsWater and seawater
PolyesterOKNONONOOKOKOKOK

*Disintegrated by concentrated sulfuric acid
*High chemical concentrations and/or higher temperatuires will lower the resistance of the sling
