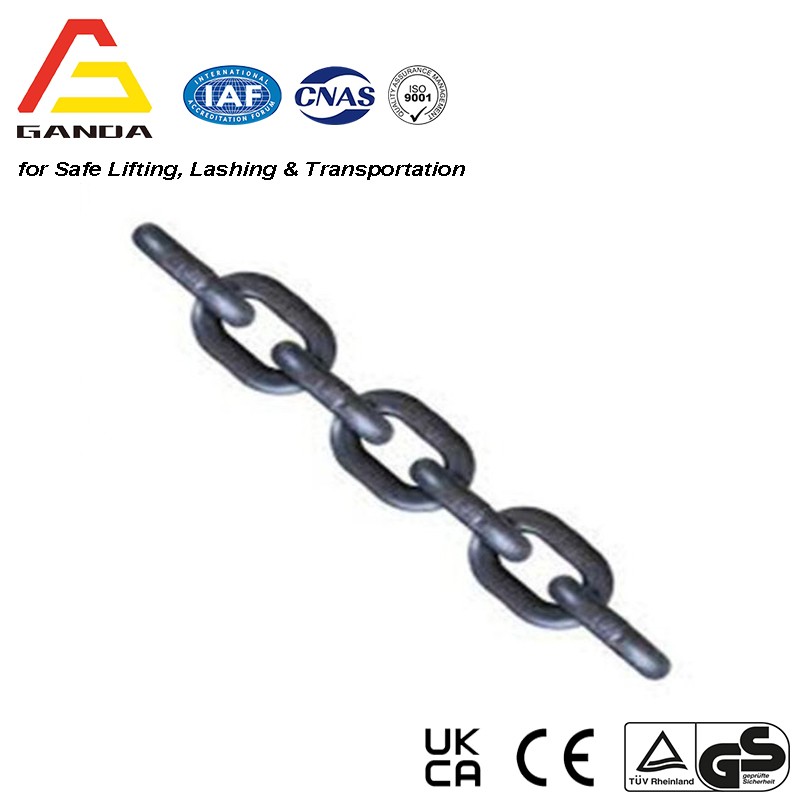

G80 and G100 Lifting Chain

G80 Lifing Chain
G100 Lifting Chain
G80 Lifting Chain for Manual Hoist
G80 Lifting Chain for Electric Hoist

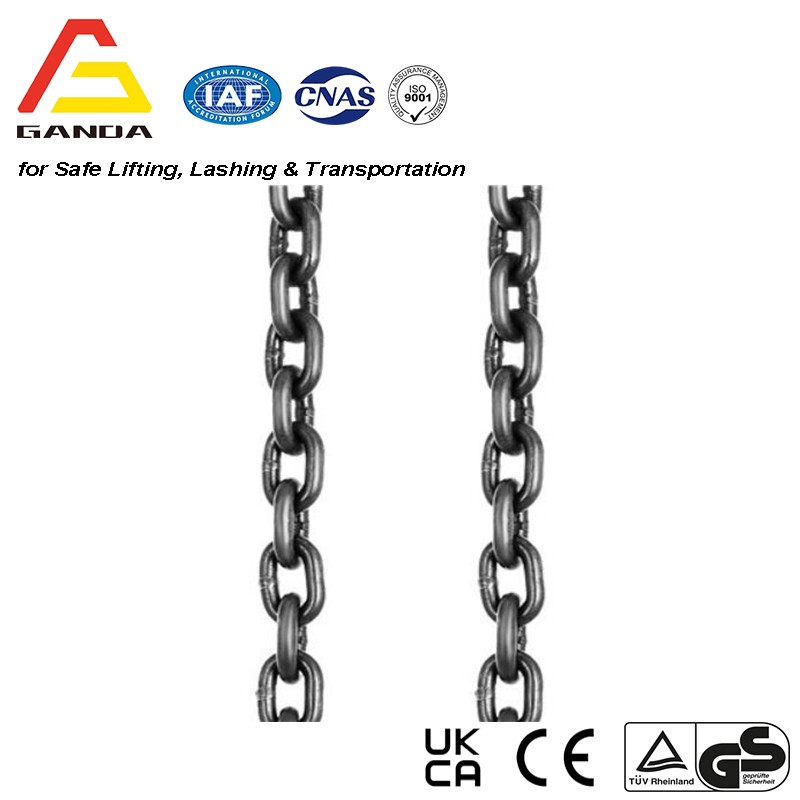

80 CHAIN FOR CHAIN HOIST AND LEVER HOIST, BLACK FINISHED. EN 818-7

NOMINAL SIZE MM	MATERIAL DIANETER TOLERANCE	PITCH		WIDTH		LENGTH FOR 11 X PITCH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	TOLERANCE	INTERNAL MIN.	EXTERNAL MAX.	LENGTH FOR 11 X PITCH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	TOLERANCE	INTERNAL MIN.	EXTERNAL MAX.	MM	TOLERANCE	T	kN	kN
4	+/-0.2	12	0.25	4.8	13.6	132	0.6	0.5	12.6	20.1
5	+/-0.2	15	0.3	6	17	165	0.8	0.8	19.6	31.4
6	+/-0.2	18	0.35	7.2	20.4	198	1	1.1	28.3	45.2
7	+/-0.3	21	0.4	8.4	23.8	231	1.1	1.5	38.5	61.6
8	+/-0.3	24	0.5	9.6	27.2	264	1.3	2	50.3	80.4
9	+/-0.4	27	0.5	10.8	30.6	297	1.4	2.5	63.6	102
10	+/-0.4	30	0.6	12	34	330	1.6	3.2	78.5	126

ULTIMATE ELONGATION: MIN. 10%
MARK: T 8 AND BATCH NO.

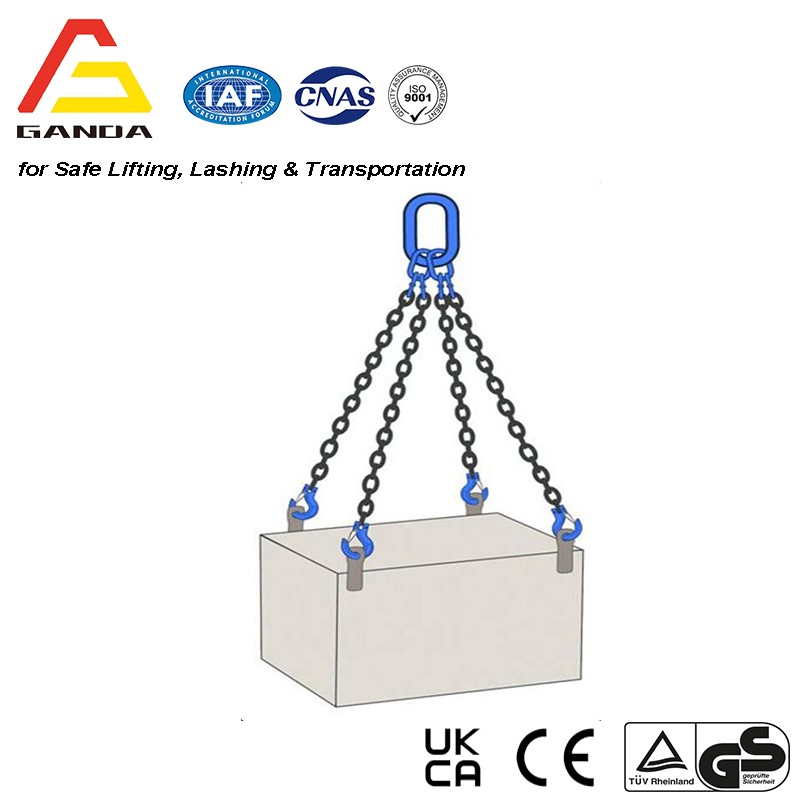

GRADE 80 CHAIN FOR CHAIN SLING, BLACK FINISHED. EN 818-2

NOMINAL SIZE MM	MATERIAL DIANETER TOLERANCE	PITCH			WIDTH		WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	MAX. MM	Min. MM	INTERNAL MIN.	EXTERNAL MAX.	WLL	PROOF FORCE	MIN. BREAKING LOAD
		MM	MAX. MM	Min. MM	INTERNAL MIN.	EXTERNAL MAX.	T	kN	kN
6	+/-0.24	18	18.5	17.5	7.8	22.2	1.12	28.3	45.2
7	+/-0.28	21	21.6	20.4	9.1	25.9	1.5	38.5	61.6
8	+/-0.32	24	24.7	23.3	10.4	29.6	2	50.3	80.4
10	+/-0.4	30	30.9	29.1	13.0	37.0	3.15	78.5	126
13	+/-0.52	39	40.2	37.8	16.9	48.1	5.3	133	212
16	+/-0.64	48	49.4	46.6	20.8	59.2	8	201	322
18	+/-0.9	54	55.6	52.4	23.4	66.6	10	254	407
20	+/-1.0	60	61.8	58.2	26.0	74.0	12.5	314	403
22	+/-1.1	66	68.0	64.0	28.6	81.4	15	380	608
26	+/-1.3	78	80.3	75.7	33.8	96.2	21.2	531	849
32	+/-1.6	96	98.9	93.1	41.6	118.0	31.5	804	1290

ULTIMATE ELONGATION: MIN. 20%

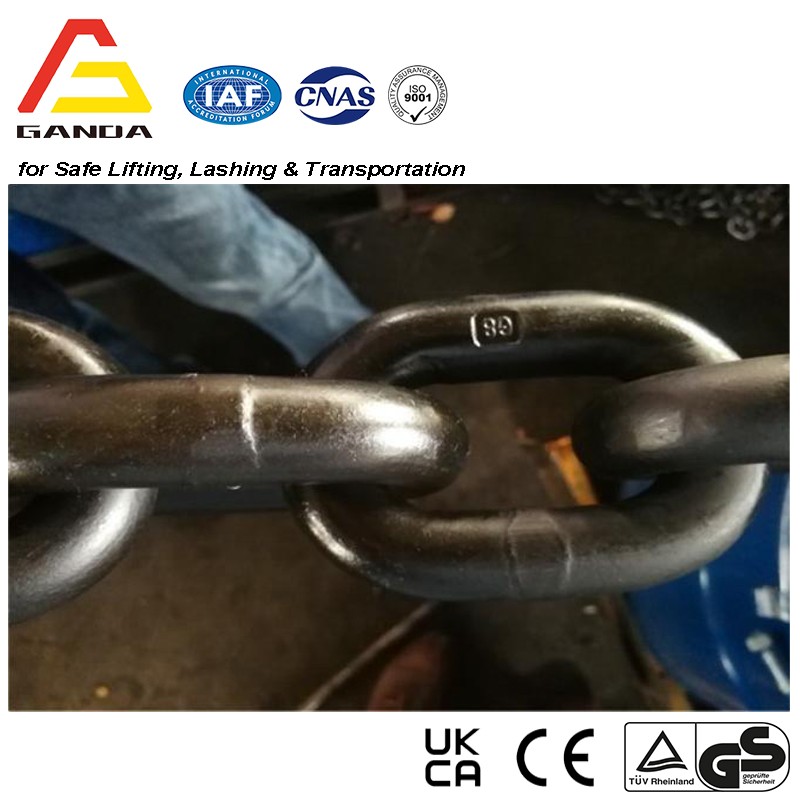

MARK: G80 AND BATCH NO.
