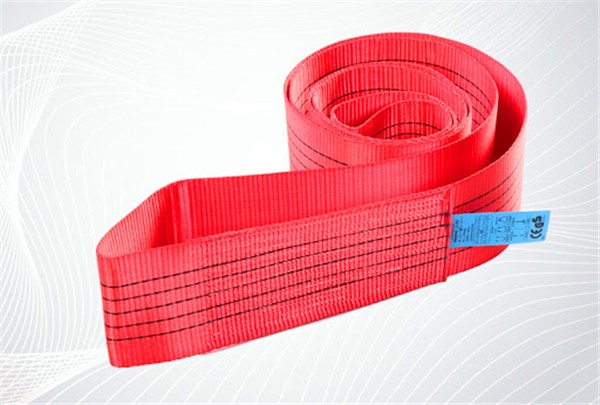

5T Endless Webbing Sling

5T Polyester Endless Webbing Sling to EN 1492-1
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity: 5T
-Length: 0,5m to 10m

Polyester Endless Webbing Sling- - 5T/5,000KGS

Technical specifications
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1, 6:1, 5:1

Polyester endless slings are formed by overlapping the ends of the heavy duty webbing to form a load carrying splice. It is recommended when using endless sling straps that the load carrying splice NOT be placed into the load or lift connection points. Likewise, when Endless slings are used in a choker hitch it is recommended that the load carrying splice be placed above the choker point and below the lifting fixture.

If an endless sling configuration is desired that does not feature a load carrying splice, we’d recommend the use of a polyester roundsling.

Width	Colourcoded According to EN 1492-2 NBR 15637-2	Working Load Limit
		Straight Lift	Choked Lift	ß
		Straight Lift	Choked Lift	0°-7°	7°-45°	45°-60°	Up to 45°	45°-60°
		1.0	0.8	2.0	1.4	1.0	0.7	0.5
30MM	Purple	1000	800	2000	1400	1000	700	500
60MM	Green	2000	1600	4000	2800	2000	1400	1000
90MM	Yellow	3000	2400	6000	4200	3000	2100	1500
120MM	Grey	4000	3200	8000	5600	4000	2800	2000
150MM	Red	5000	4000	10000	7000	5000	3500	2500
180MM	Brown	6000	4800	12000	8400	6000	4200	3000
240MM	Blue	8000	6400	16000	11200	8000	5600	4000
300MM	Orange	10000	8000	20000	14000	10000	7000	5000
300MM	Orange	12000	9600	24000	16800	12000	8400	6000
